1995 Suzuki LT-F250 Cylinder Diagram

← All diagrams

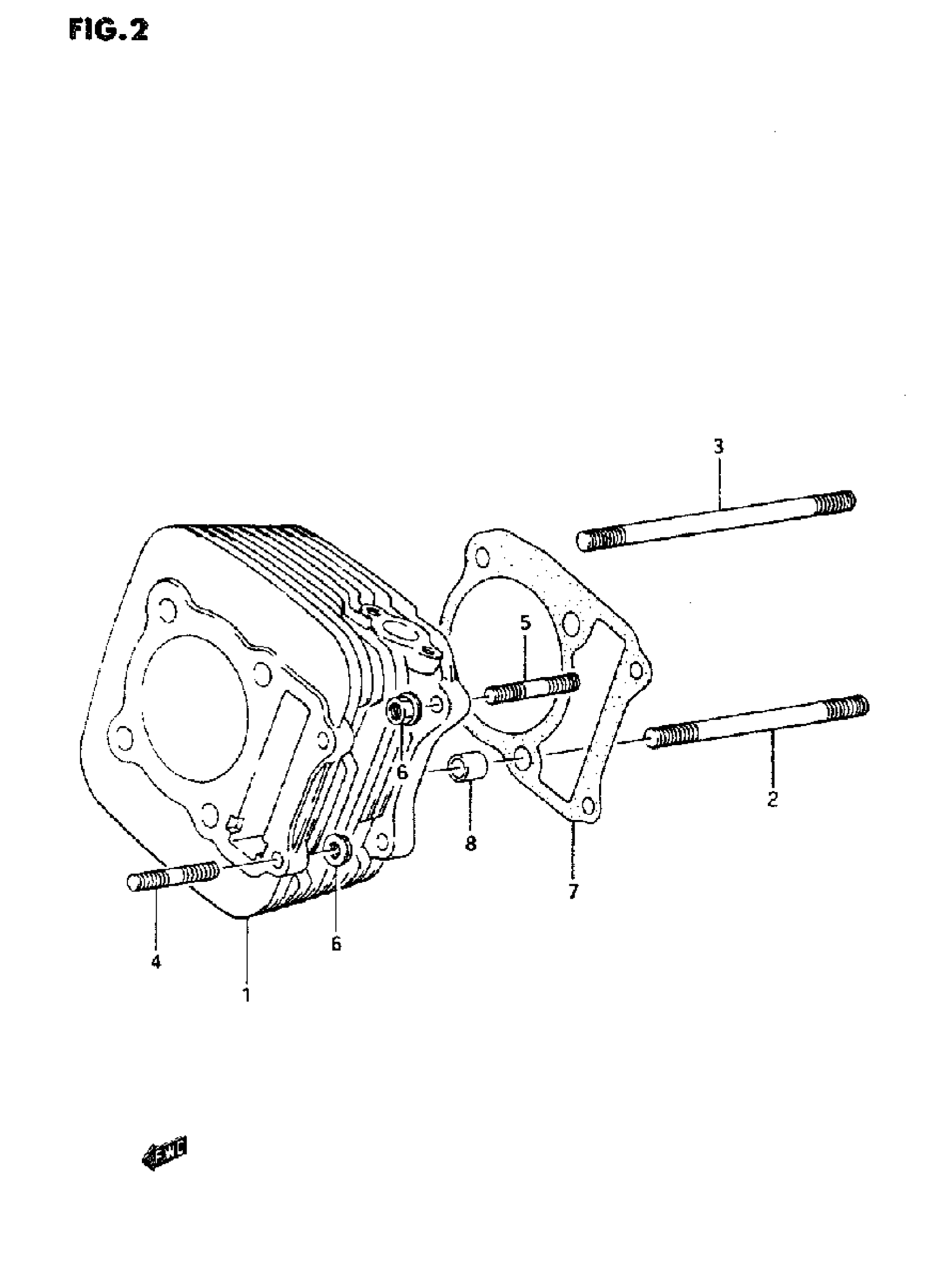

Find the part on the Cylinder diagram for your 1995 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-F250 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER | MODEL J/K This part replaces 11210-19B00.

11210-19B71-0F0

1
Out of stock

1

CYLINDER | MODEL L/M/N/P/R/S

11210-19B71-0F0

1
Out of stock

2

STUD BOLT (L:160)

09108-08195

2
Out of stock

3

STUD BOLT (L: 187)

09108-08184

2
Out of stock

4

STUD BOLT | MODEL J/K/L/M/N/P/R This part replaces 01421-06255.

01421-0625A

2
Out of stock

4

STUD BOLT | MODEL S/T This part replaces 01421-06253.

01421-0625A

2
Out of stock

5

STUD BOLT | MODEL J/K/L/M/N/P/R This part replaces 01421-06255.

01421-0625A

2
Out of stock

5

STUD BOLT (L:25) | MODEL S/T

09108-06002

2
Out of stock

6

NUT | MODEL J/K/L/N/WP This part replaces 08316-16064.

08316-1006B

4
Out of stock

6

NUT | MODEL R/S/T This part replaces 08316-10063.

08316-1006B

4
Out of stock

7

GASKET, CYLINDER | MODEL J/K/L/M/M This part replaces 11241-18A00.

11241-18A20

1
Out of stock

7

GASKET, CYLINDER | MODEL P This part replaces 11241-18A00-H17.

11241-18A20

1
Out of stock

7

GASKET, CYLINDER | MODEL R/S/T

11241-18A20

1
Out of stock

8

PIN

04211-11149

2
Out of stock
