1995 Suzuki LT-F250 Crankcase Cover Diagram

← All diagrams

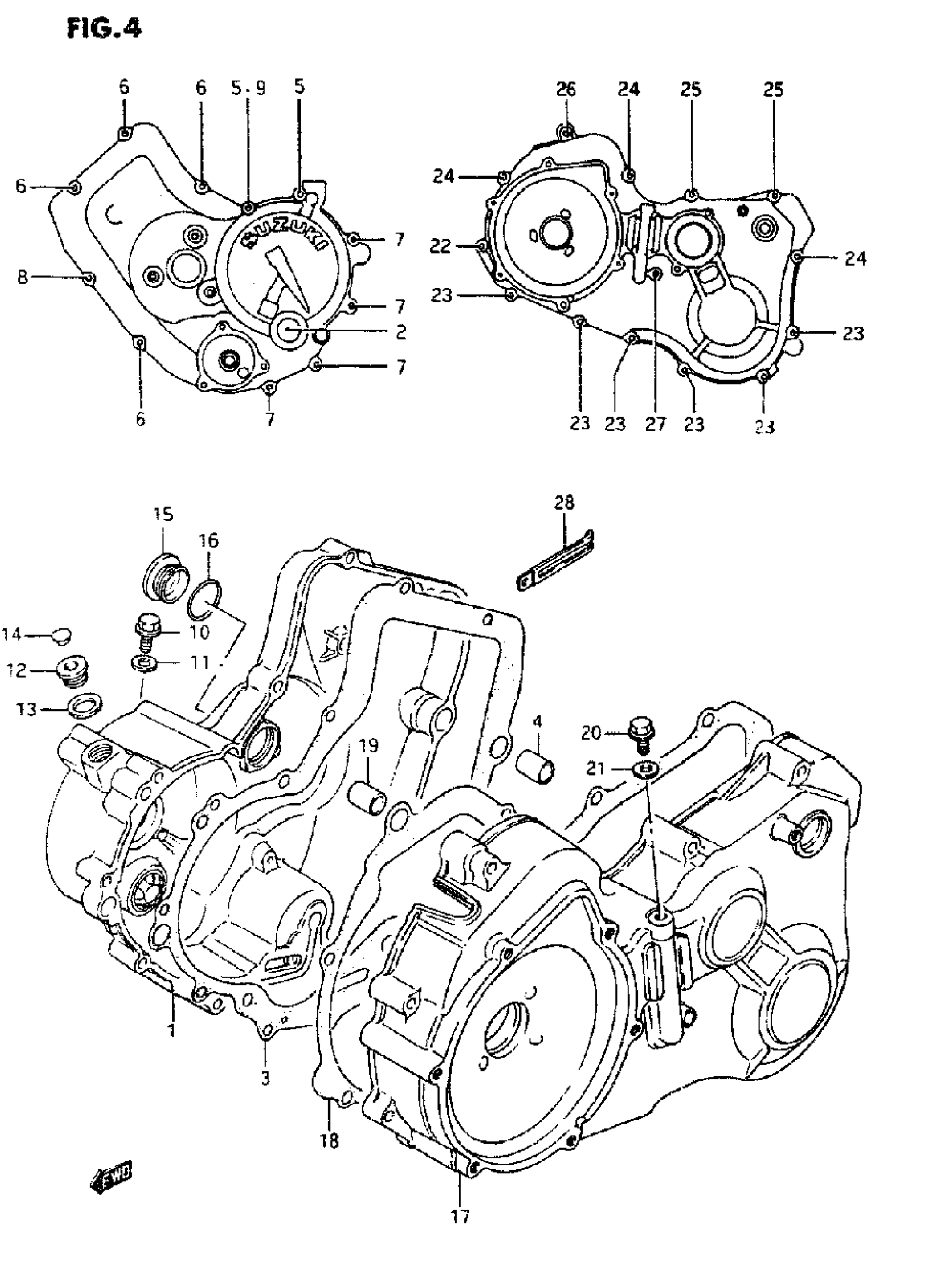

Find the part on the Crankcase Cover diagram for your 1995 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-F250 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | MODEL J/K/L This part replaces 11340-19B00.

11340-19B01

1
Out of stock

1

COVER, CLUTCH | MODEL M/N/P

11340-19B01

1
Out of stock

1

COVER, CLUTCH | MODEL R/S/T

11340-19B20

1
Out of stock

2

LENS, OIL CHECK

11971-33210

1
Out of stock

3

GASKET, CLUTCH | MODEL J/K/L This part replaces 11482-19B01.

11482-19B13

1
Out of stock

3

GASKET, CLUTCH | MODEL M/N/P/R This part replaces 11482-19B10.

11482-19B13

1
Out of stock

3

GASKET, CLUTCH | MODEL S/T This part replaces 11482-19B12.

11482-19B13

1
Out of stock

4

PIN (10.4XL3X22) | MODEL J/K/L/WN/P

09206-13004

2
Out of stock

4

PIN (10.4XL3XL8) | MODEL R/S/T

04211-13189

2
Out of stock

5

BOLT (6X100) | MODEL J/K/L/M/N/P This part replaces 09103-06105.

09103-06501

2
Out of stock

5

BOLT (6XL00) | MODEL R/S/T

09103-06501

2
Out of stock

6

BOLT, WATER PUMP | MODEL J/K/L/M/N/P This part replaces 01547-06354.

01547-0635B

4
Out of stock

6

BOLT, WATER PUMP | MODEL R/S/T This part replaces 01547-06353.

01547-0635B

4
Out of stock

7

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06404.

01547-0640B

4
Out of stock

7

BOLT | MODEL R/S/T This part replaces 01547-06403.

01547-0640B

4
Out of stock

8

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06505.

01547-0650B

1
Out of stock

8

BOLT | MODEL R/S/T This part replaces 01547-06503.

01547-0650B

1
Out of stock

9

GASKET

09168-06023

1
Out of stock

10

BOLT (8X12) | MODEL J/K/L/M/N/P This part replaces 01517-08125.

01550-0812A

2
Out of stock

10

BOLT (8X12) | MODEL R/S/T This part replaces 01550-08123.

01550-0812A

2
Out of stock

11

GASKET

09168-08015

2
Out of stock

12

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

1
Out of stock

13

GASKET

09168-16002

1
Out of stock

14

CAP

09250-08012

1
Out of stock

15

CAP, CLUTCH ADJUST

09259-30005

1
Out of stock

16

O RING (D:3.1,ID:26.4) | MODEL J/K/L/M/N/P/R This part replaces 09280-27002.

09280-26006

1
Out of stock

16

0 RING | MODEL S/T

09280-26006

1
Out of stock

17

COVER, TRANSFER | MODEL J/K/L/M/N/P This part replaces 11351-19B00.

11351-19B12

1
Out of stock

17

COVER, TRANSFER | MODEL R This part replaces 11351-19B10.

11351-19B12

1
Out of stock

17

COVER, TRANSFER | MODEL S/T This part replaces 11351-19B11.

11351-19B12

1
Out of stock

18

GASKET, TRANSFER COVER | MODEL J/K/L This part replaces 11483-19B00.

11483-19B13

1
Out of stock

18

GASKET, TRANSFER COVER | MODEL M/N/P/R This part replaces 11483-19B10.

11483-19B13

1
Out of stock

18

GASKET. TRANSFER COVER | MODEL S/T

11483-19B13

1
Out of stock

19

PIN (10.4XL3X22) | MODEL J/K/L/M/N/P

09206-13004

2
Out of stock

19

PIN (10.4XL3XL8) | MODEL R/S/T

04211-13189

2
Out of stock

20

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06105.

01550-0610A

1
Out of stock

20

BOLT | MODEL R/S/T This part replaces 01550-06103.

01550-0610A

1
Out of stock

21

GASKET

09168-06023

1
Out of stock

22

BOLT, FINAL GEAR CASE COVER | MODEL J/K/L/WN/P This part replaces 01547-06254.

01547-0625B

1
Out of stock

22

BOLT, FINAL GEAR CASE COVER | MODEL R/S/T This part replaces 01547-06253.

01547-0625B

1
Out of stock

23

BOLT, WATER PUMP | MODEL J/K/L/M/N/P This part replaces 01547-06354.

01547-0635B

6
Out of stock

23

BOLT, WATER PUMP | MODEL R/S/T This part replaces 01547-06353.

01547-0635B

6
Out of stock

24

BOLT | MODEL J/K/L/WN/P This part replaces 01547-06404.

01547-0640B

3
Out of stock

24

BOLT | MODEL R/S/T This part replaces 01547-06403.

01547-0640B

3
Out of stock

25

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06505.

01547-0650B

2
Out of stock

25

BOLT | MODEL R/S/T This part replaces 01547-06503.

01547-0650B

2
Out of stock

26

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06555.

01547-0655B

1
Out of stock

26

BOLT | MODEL R/S/T This part replaces 01547-06553.

01547-0655B

1
Out of stock

27

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06654.

01547-0665B

1
Out of stock

27

BOLT | MODEL R/S/T This part replaces 01547-06653.

01547-0665B

1
Out of stock

28

CLAMP, AIR VENT HOSE | MODEL J/K/L/M/N/P/R This part replaces 09404-06419.

09404-06435

1
Out of stock

28

CLAMP(L:80) | MODEL J/K/L/M/N/P/R This part replaces 09404-06415.

09404-06036

1
Out of stock

28

CLAMP(L:80) | MODEL S/T This part replaces 09404-06433.

09404-06036

1
Out of stock
