1995 Suzuki LT-F250 Crankshaft Diagram

← All diagrams

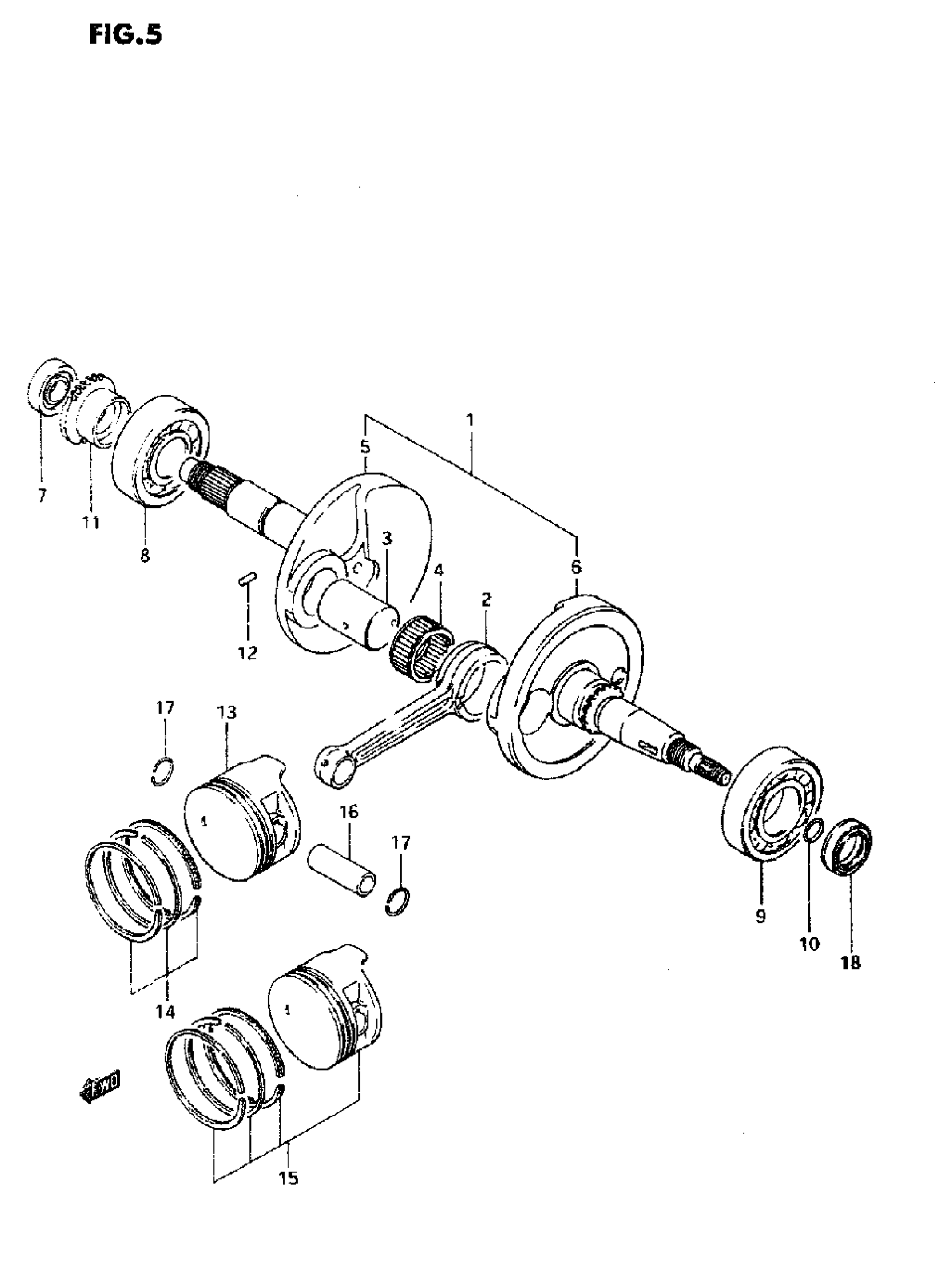

Find the part on the Crankshaft diagram for your 1995 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-F250 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | MODEL J/K/L/M This part replaces 12200-19B10.

12200-19B20

1
Out of stock

1

CRANKSHAFT ASSY | MODEL N/P/R/S/T

12200-19B20

1
Out of stock

2

ROD, CONNECTING This part replaces 12161-19B02.

12161-19B03

1
Out of stock

3

PIN, CRANK This part replaces 12210-22A02.

12210-22A03

1
Out of stock

4

BEARING

09263-30033-0B0

1
Out of stock

5

CRAMKSHAFT, RH | MODEL J/K/L/M

12220-19B10

1
Out of stock

5

CRANKSHAFT, RH | MODEL N/P/R/S/T This part replaces 12220-19B20.

12220-19B21

1
Out of stock

6

CRSNKSHAFT, LH | MODEL J/K/L/M

12261-19B00

1
Out of stock

6

CRANKSHAFT LH | MODEL N/P/R/S/T This part replaces 12261-19B20.

12261-19B21

1
Out of stock

7

BEARING, RH (15X35XLL)

09262-15014

1
Out of stock

8

BEARING, MDL (28X68XL8)

09262-28014

1
Out of stock

9

BEARING, LH (35X72XL7)

09262-35038

1
Out of stock

10

O RING (D:1.9,ID:12.6) | MODEL J/K/L/M/N/P/R This part replaces 09280-13007.

09280-12009

1
Out of stock

10

0 RING | MODEL S/T

09280-12009

1
Out of stock

11

GEAR, OIL PUMP DRIVE (NT:30)

16321-19B00

1
Out of stock

12

PIN (4X13.8)

04221-04089

1
Out of stock

13

PISTON

12111-19B01

1
Out of stock

14

RING SET, PISTON

12140-19B10

1
Out of stock

15

PISTON SET (OS:0.5) | OPT

12100-19B00-050

1
Out of stock

15

PISTON SET (0S:1.0) | OPT

12100-19B00-100

1
Out of stock

16

PIN, PISTON

12151-22A02

1
Out of stock

17

CIRCLIP

09381-16004

2
Out of stock

18

OIL SEAL (22X35X7)

09289-22008

1
Out of stock
