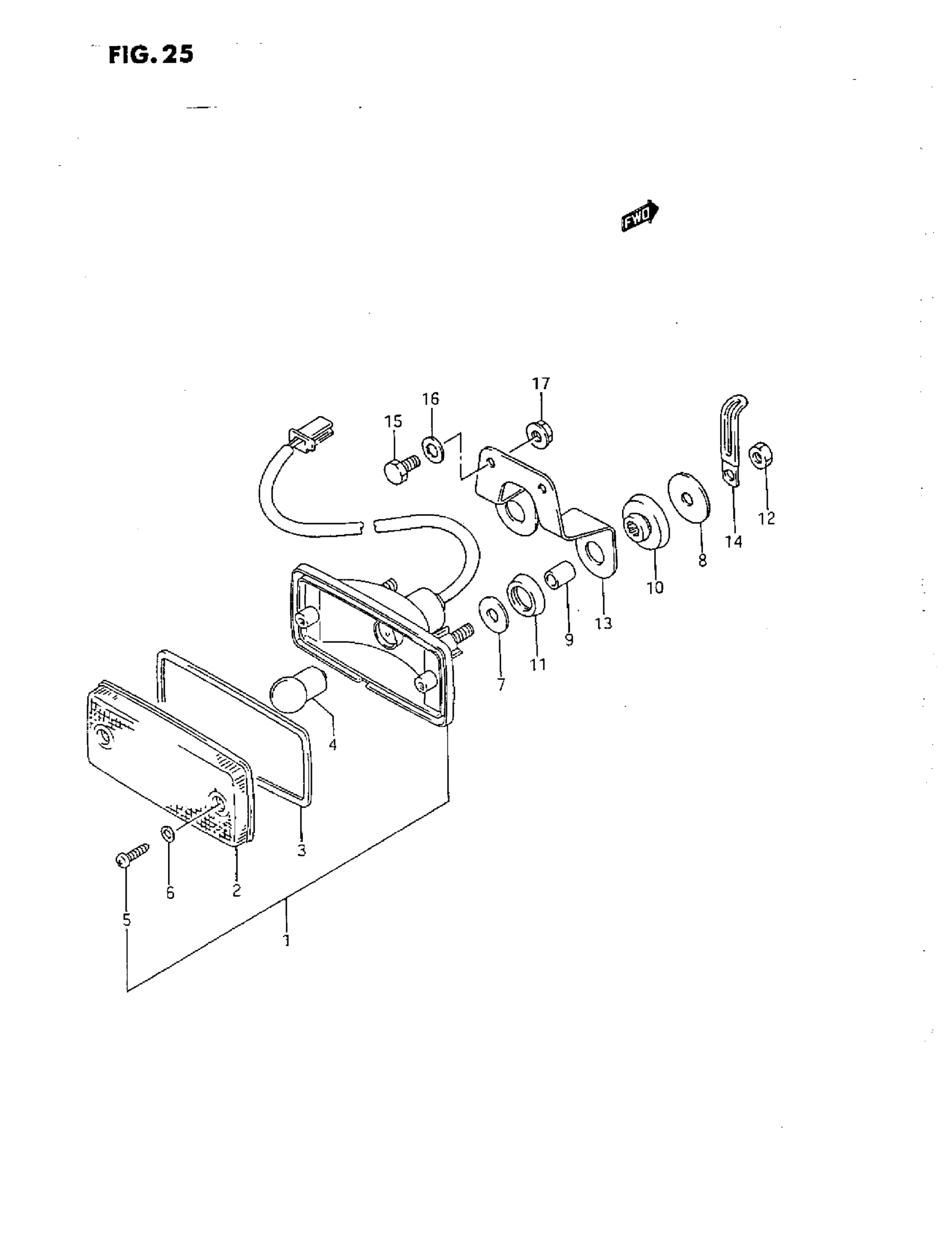

Suzuki LT-F250 (1993) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | MODEL J/K This part replaces 35710-18A32.

35710-41B02

Unavailable

1

LAMP ASSY, TAIL | MODEL L/M/N/P/R This part replaces 35710-18A33.

35710-41B02

Unavailable

2

LENS | MODEL J/K This part replaces 35712-18A31.

35712-18A32

$45.31

2

LENS | MODEL L/M/N/P/R

35712-18A32

$45.31

3

GASKET

35713-18A30

$9.67

4

BIJLB (12V , 5W) | MODEL J/K

09471-12058

$2.33

4

BULB (12V5W) | MODEL L/M/N/P/R This part replaces 09471-12139.

09471-12058

$2.33

5

SCREW

03212-04169

$1.49

6

GASKET

35627-43010

$2.28

7

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

8

WASHER (6.5X3 OXL.2)

09160-06071

Unavailable

9

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

$2.63

10

CUSHION

09320-09012

Unavailable

11

CUSHION

09320-14010

Unavailable

12

NUT This part replaces 08310-12066.

08310-0006A

$1.84

13

BRACKET, TAIL LAMP | MODEL J This part replaces 35726-19B00.

35726-19B01

Unavailable

13

BRACKET, TAIL LAMP | MODEL K/L/M/N/P/R

35726-19B01

Unavailable

14

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

15

BOLT | MODEL J/K This part replaces 01107-06125.

01500-0612A

$1.78

15

BOLT | MODEL L This part replaces 01107-06126.

01500-0612A

$1.78

15

BOLT | MODEL M/N/P

01114-06126

Unavailable

15

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

16

.WASHER | MODEL J/K This part replaces 08322-21064.

08322-0106B

$2.26

16

.WASHER | MODEL L This part replaces 08322-21066.

08322-0106B

$2.26

17

NUT | MODEL J/K This part replaces 08316-16064.

08316-1006B

$2.50

17

NUT | MODEL L/M/N/P This part replaces 08316-16066.

08316-1006B

$2.50

17

NUT | MODEL R This part replaces 08316-10063.

08316-1006B

$2.50
