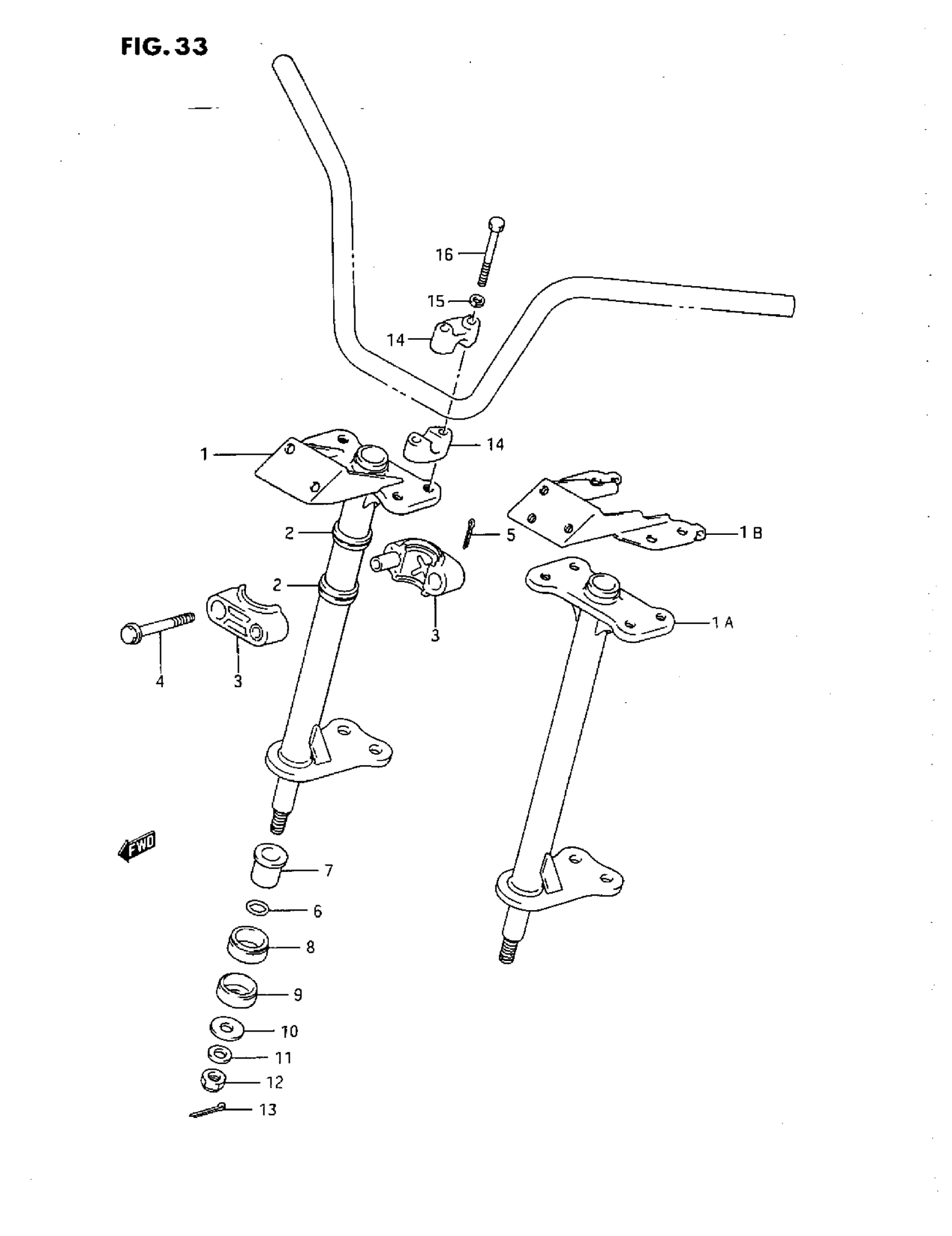

Suzuki LT-F250 (1993) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING | MODEL J/K

51650-20B00

Unavailable

1

SHAFT, STEERING | MODEL L/M/N/P/R

51650-20B10

Unavailable

1

BRACKET, HEADLAMP | MODEL L/M/N/P/R

51530-20B00

Unavailable

2

DUST SEAL, STEERING

51678-24500

$6.64

3

HOLDER,STEERING SHAFT

51670-24500

$23.07

4

BOLT

09103-08116

Unavailable

5

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

6

O-RING

09280-17003

$1.65

7

BUSH, STEERING SHAFT LOWER (17X26X36.9) | MODEL J This part replaces 51661-19B00.

51661-09F00

$30.05

7

BUSH, STEERING SHAFT LOWER (17X26X36.9) | MODEL K/L/M/N/P/R This part replaces 51661-19B10.

51661-09F00

$30.05

8

SEAL,DUST This part replaces 51662-19A01.

51662-05G01

$6.42

9

SEAL,DUST This part replaces 51663-24500.

51663-05G01

$7.13

10

WASHER (12.5X32X4.5) This part replaces 09160-12043.

09160-12094

$3.72

11

LOCK WASHER

09162-12006

$3.85

12

NUT This part replaces 08319-21125.

08319-2112B

$5.18

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

14

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

$17.90

15

LOCK WASHER | MODEL J/K/L This part replaces 08321-21084.

08321-0108A

$1.84

16

BOLT | MODEL J/K/L This part replaces 01107-08555.

01500-0855B

$3.49

16

BOLT | MODEL M/N/P This part replaces 01137-08555.

01570-0855B

$4.32

16

BOLT | MODEL R This part replaces 01570-08553.

01570-0855B

$4.32
