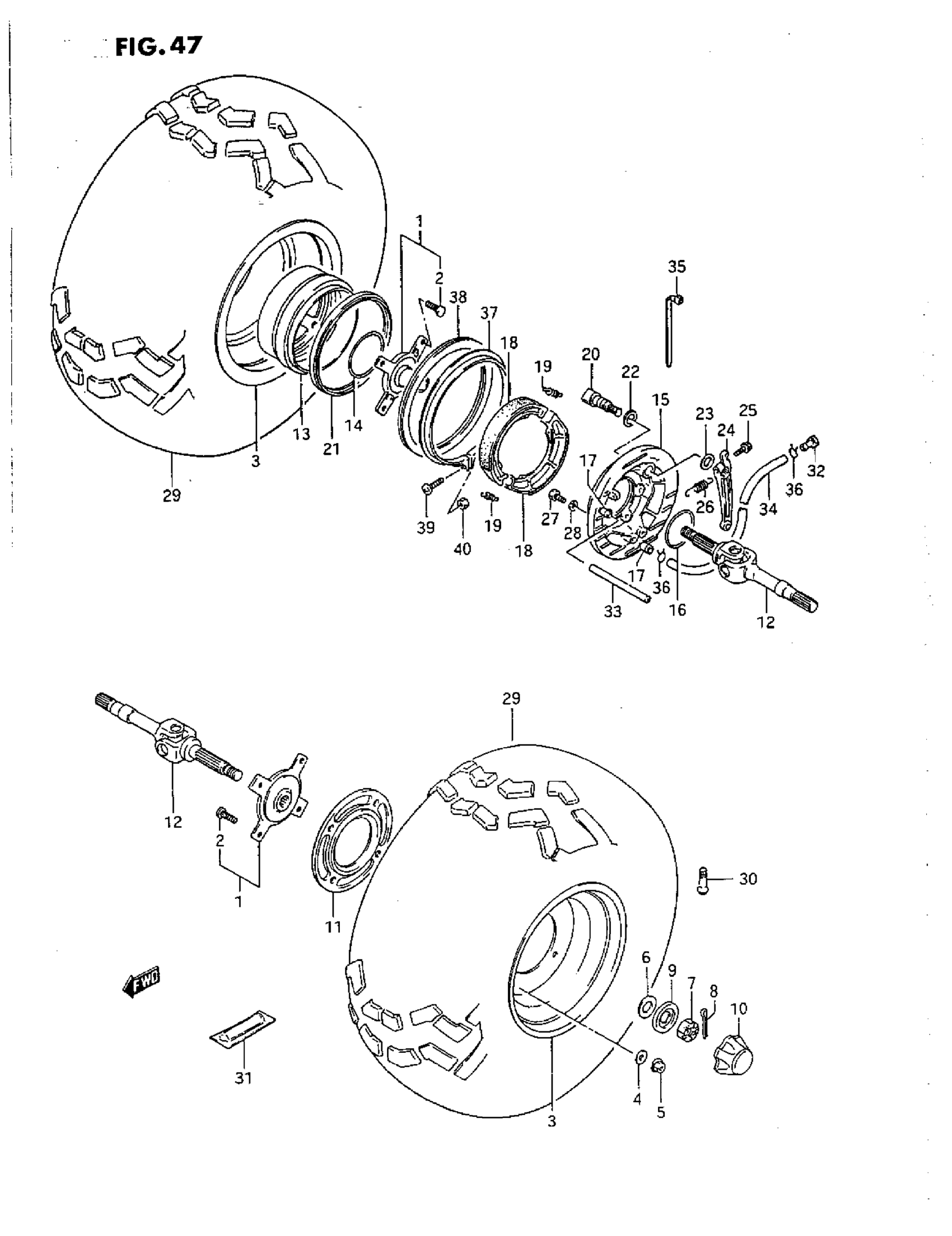

Suzuki LT-F250 (1993) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL This part replaces 64110-19B10.

64110-19B11

Unavailable

2

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.38

3

RIM, REAR WHEEL (SILVER)

65310-20B00-13L

Unavailable

4

WASHER | MODEL J/K/L/M/N/P This part replaces 08322-21108.

08322-01107

$2.15

4

WASHER,10.5X22X | MODEL R This part replaces 09160-10119.

09160-10143

$2.34

5

NUT, WHEEL SET | MODEL J/K/L/M/N/P This part replaces 08316-16108.

08316-10107

$2.39

5

NUT | MODEL R This part replaces 08316-10103.

08316-1010B

$2.66

6

WASHER

09164-18004

$3.76

7

NUT, HUB | MODEL J/K/L/M/N/P ->09141 -18008 This part replaces 09141-18004.

09141-18008

$8.37

7

NUT, HUB | MODEL R

09141-18008

$8.37

8

PIN, COTTER | ->04111 -40408 This part replaces 04111-40356.

04111-4040A

$1.49

8

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

9

HOLDER, CAP

64726-19B00

$3.31

10

CAP, WHEEL CENTER | MODEL J/K/L/M/N/P This part replaces 54725-19B00.

54725-39D00

$14.76

10

CAP | MODEL R

54725-39D00

$14.76

11

SPACER, HUB LH

64113-19B10

Unavailable

12

AXLE, REAR

64710-19B10

$468.90

13

DRUM, BRAKE

64120-19B00

Unavailable

14

O-RING, DRUM

09280-80001

$3.89

15

PANEL, BRAKE ANCHOR

64210-19B02

Unavailable

16

O-RING, PANEL

09280-70010

$3.72

17

UNION

09364-12002

Unavailable

18

SHOE SET, BRAKE | MODEL J/K/L/M/N/P This part replaces 64410-19B00.

64400-19820

Unavailable

18

SHOE SET, BRAKE | MODEL R This part replaces 64410-19B10.

64400-19820

Unavailable

19

SPRING

55420-30000

$4.48

20

CAM, REAR BRAKE

64440-19B00

Unavailable

21

DUST SEAL, DRUM

64124-19B00

Unavailable

22

O-RING

64443-18A00

$1.98

23

WASHER

09160-16003

$2.92

24

LEVER, CAM

64451-19B01

Unavailable

25

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06256.

01550-0625A

$1.97

25

BOLT | MODEL R This part replaces 01550-06253.

01550-0625A

$1.97

26

SPRING This part replaces 09443-13022.

09443-13022-XC0

Unavailable

27

BOLT | MODEL J/K/L This part replaces 01107-08206.

01500-0820A

$2.28

27

BOLT, BRACE | MODEL M/N/P This part replaces 01147-08206.

01570-0820A

$3.15

27

BOLT, BRACE | MODEL R This part replaces 01570-08203.

01570-0820A

$3.15

28

LOCK WASHER | MODEL J/K/L This part replaces 08321-31086.

08321-0108A

$1.84

29

TIRE, T/L REAR (AT24X11-10) | MODEL J/K This part replaces 65100-20B50.

65100-20B51

Unavailable

29

TIRE, T/L REAR (AT24XII-10) (DUNLOP) | MODEL L/M/N/P/R

65100-20B51

Unavailable

30

VALVE ASSY, WHEEL RIM | 443130-78030 This part replaces 43130-75150.

43130-78030

$9.25

30

VALVE ASSY, WHEEL RIM

43130-78030

$9.25

31

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

$58.92

32

PLUG, DRAIN HOSE

13877-00190

$5.32

33

HOSE,11X15X2000 | L:1000->990 This part replaces 09352-11153-00A.

09352-11154-00B

$48.35

34

HOSE | L:300 ->230 This part replaces 09352-11153-300.

09352-11154-600

$13.05

35

CLAMP, BREATHER HOSE, L:125

09407-14403

$2.26

36

CLIP, HOSE

09401-14301

$2.35

37

BRACKET, BRAKE COVER

64260-19B00

Unavailable

38

COVER, REAR BRAKE

64265-19B00

Unavailable

39

SCREW | MODEL J/K/L/M/N/P This part replaces 02112-04166.

02112-0416A

$1.49

39

SCREW | MODEL R This part replaces 02112-04163.

02112-0416A

$1.49

40

NUT | MODEL J/K/L/M/N/P This part replaces 08310-11046.

08310-0004A

$2.30

40

NUT | MODEL R This part replaces 08310-00043.

08310-0004A

$2.30
