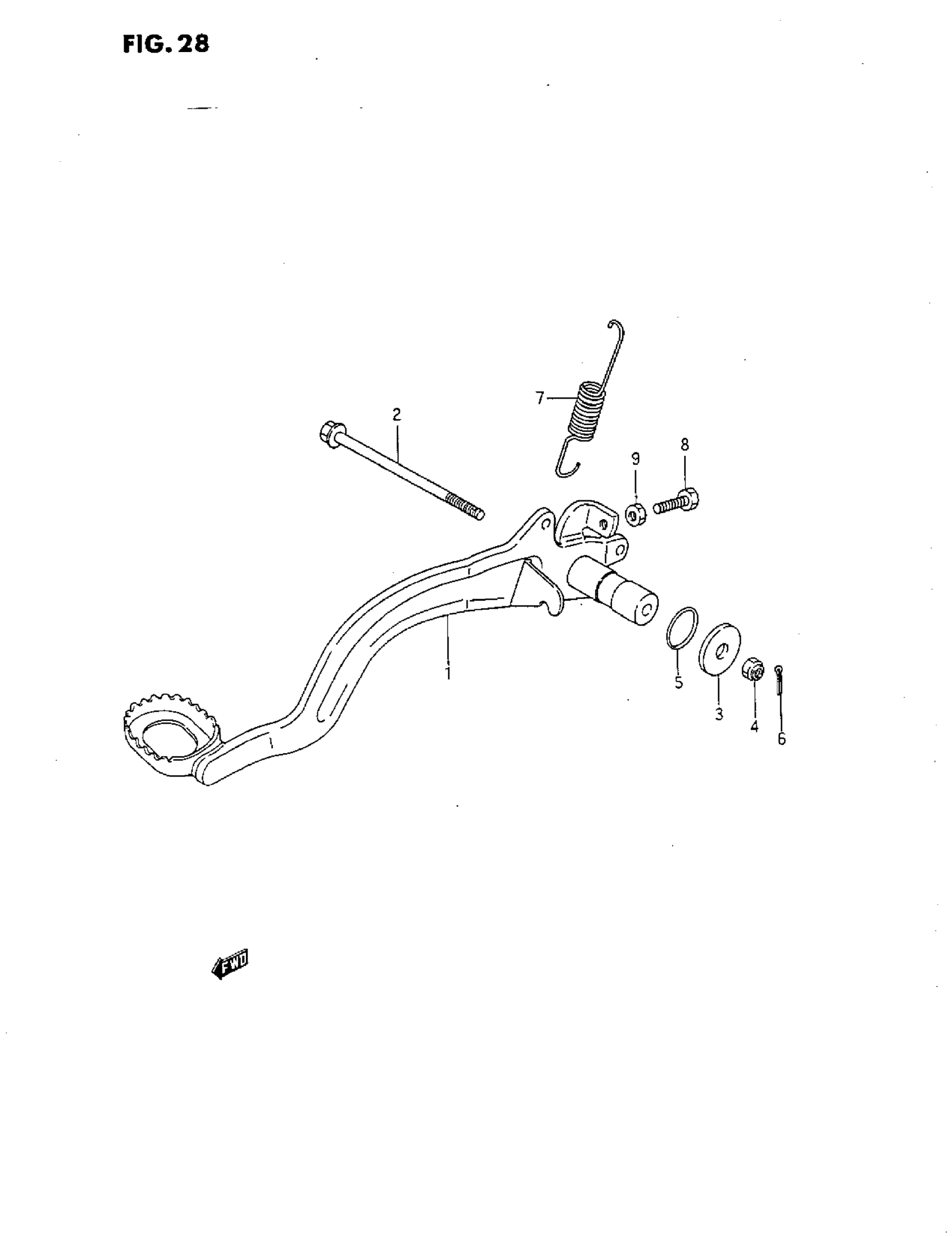

Suzuki LT-F250 (1993) REAR BRAKE Diagram

#

Description

Price

1

PEDAL, BRAKE | MODEL J/K/L

43110-19B00

Unavailable

1

PEDAL, BRAKE | MODEL M/N/P/R This part replaces 43110-19B10.

43110-19B20

Unavailable

2

BOLT

09103-06106

Unavailable

3

WASHER, INNER This part replaces 09160-06096.

09160-06135

$2.15

4

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

5

O-RING

09280-17002

$4.62

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

7

SPRING

09443-15032

$5.28

8

BOLT This part replaces 09100-06091.

01500-06207

$1.99

9

.NUT This part replaces 08310-11067.

08310-00067

$1.83
