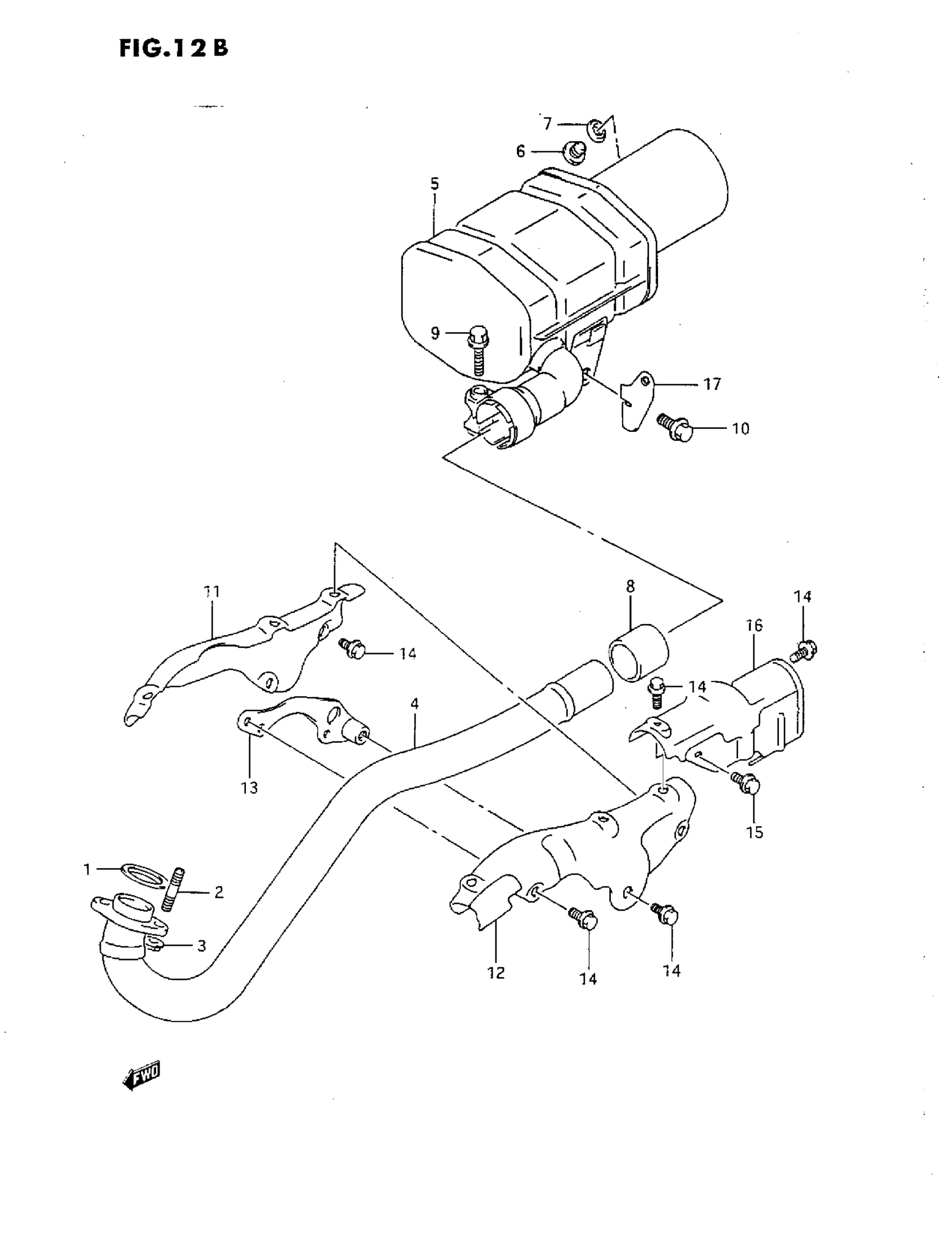

Suzuki LT-F250 (1993) MUFFLER (M/N/P/R) Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-19B00.

14181-42A00

$10.01

2

STUD BOLT | MODEL M/N This part replaces 01421-08205.

01421-0820A

$1.92

2

STUD BOLT | MODEL P/R This part replaces 01421-08208.

01421-0820A

$1.92

3

NUT This part replaces 08361-15085.

08361-1508A

$2.03

4

PIPE, EXHAUST This part replaces 14150-19B71.

14150-19BA0

Unavailable

5

MUFFLER This part replaces 14310-19B72.

14310-19BA0

$401.38

6

PLUG, DRAIN

09247-12103

$2.80

7

GASKET

09168-12002

$1.59

8

GASKET, MUFFLER

14771-25C00

Unavailable

9

BOLT | MODEL M/N This part replaces 01517-08405.

01550-08407

$2.63

9

BOLT | MODEL P/R This part replaces 01550-08403.

01550-0840A

$2.80

10

BOLT

09118-08119

$4.12

11

GUARD, EXHAUST INNER

14780-19B70

Unavailable

12

GUARD, EXHAUST OUTER | MODEL M This part replaces 14790-39D00.

14790-39D03

$102.21

12

GUARD, EXHAUST OUTER | MODEL N/P This part replaces 14790-39D01.

14790-39D03

$102.21

12

GUARD, EXHAUST OUTER | MODEL R This part replaces 14790-39D02.

14790-39D03

$102.21

13

STAY, EXHAUST GUARD

14770-19B70

Unavailable

14

BOLT

01547-06107

$1.67

15

BOLT

01547-06127

$1.67

16

COVER, MUFFLER CONNECTOR

14775-19B80

Unavailable

17

STAY, CONNECTOR COVER

14760-19B80

$40.29
