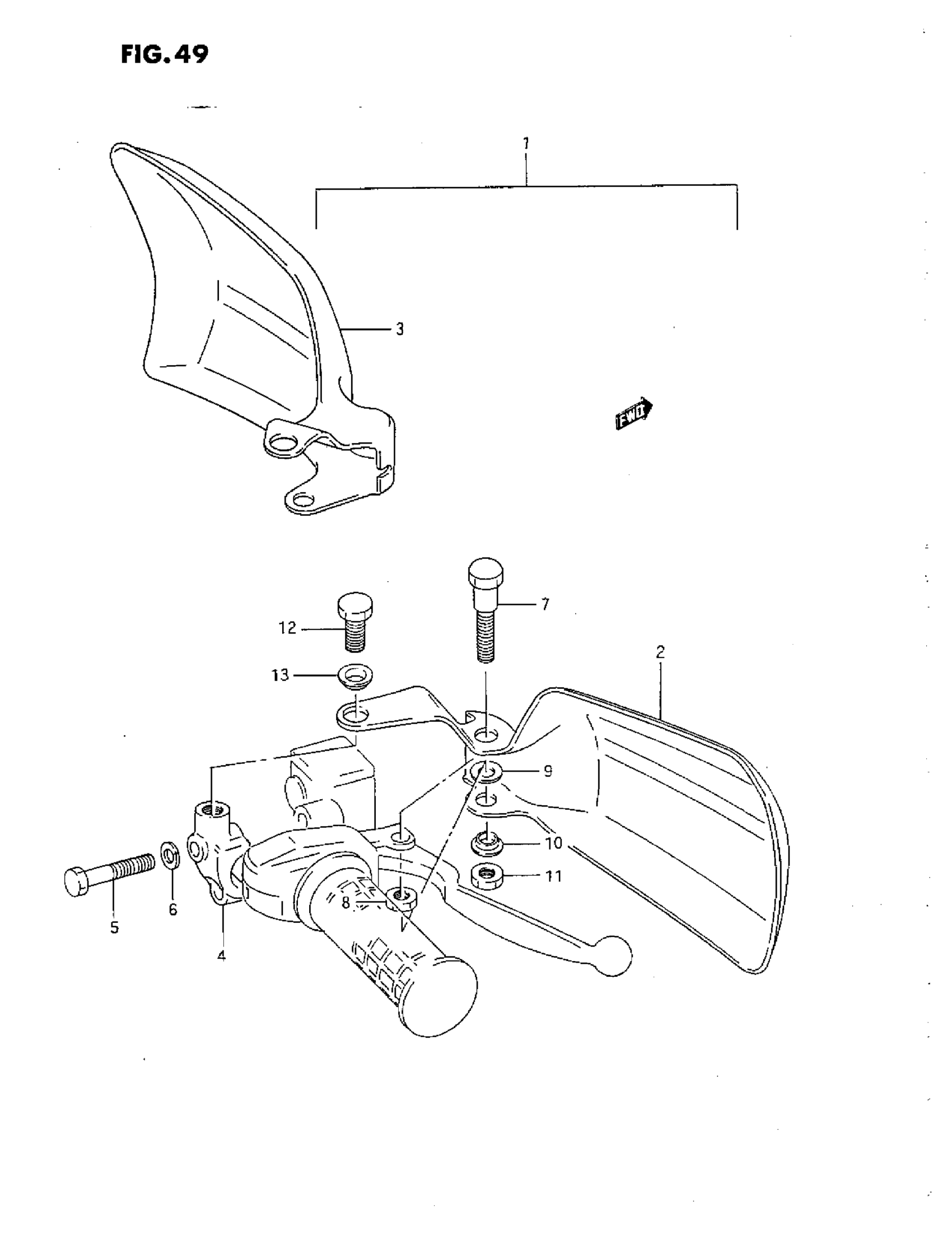

Suzuki LT-F250 (1993) KNUCKLE COVER (OPTIONAL) Diagram

#

Description
Price

1

COVER SET, KNUCKLE (ORANGE) | MODEL J/K/L/M/N This part replaces 57300-19810-25G.

57300-19811-25G

Unavailable

1

COVER SET, KNUCKLE (BLUE) | MODEL P/R This part replaces 57300-19810-0VT.

57300-19811-0VT

Unavailable

2

COVER, KNUCKLE RH (ORANGE) | MODEL J/K/L/M/N

57341-19B50-25G

Unavailable

2

COVER, KNUCKLE RH (BLUE) | MODEL P/R

57341-19B50-0VT

Unavailable

3

COVER, KNUCKLE LH (ORANGE) | MODEL J/K/L/M/N

57541-19B50-25G

Unavailable

3

COVER, KNUCKLE LH (BLUE) | MODEL P/R

57541-19B50-0VT

Unavailable

4

HOLDER, MASTER CYLINDER

59671-44300

$17.37

5

BOLT This part replaces 01107-06405.

01500-0640B

$2.62

6

.WASHER This part replaces 08322-11065.

08322-0106B

$2.26

7

BOLT, LEVER PIVOT

57431-14A00

$7.95

8

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

9

WASHER

09160-06019

$1.49

10

WASHER

09169-06033

$1.50

11

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

12

BOLT, MIRROR STAY

01204-10127

Unavailable

13

WASHER,KNUCKLE COVER UPPER,L This part replaces 09169-10010.

09169-10024

$2.42
