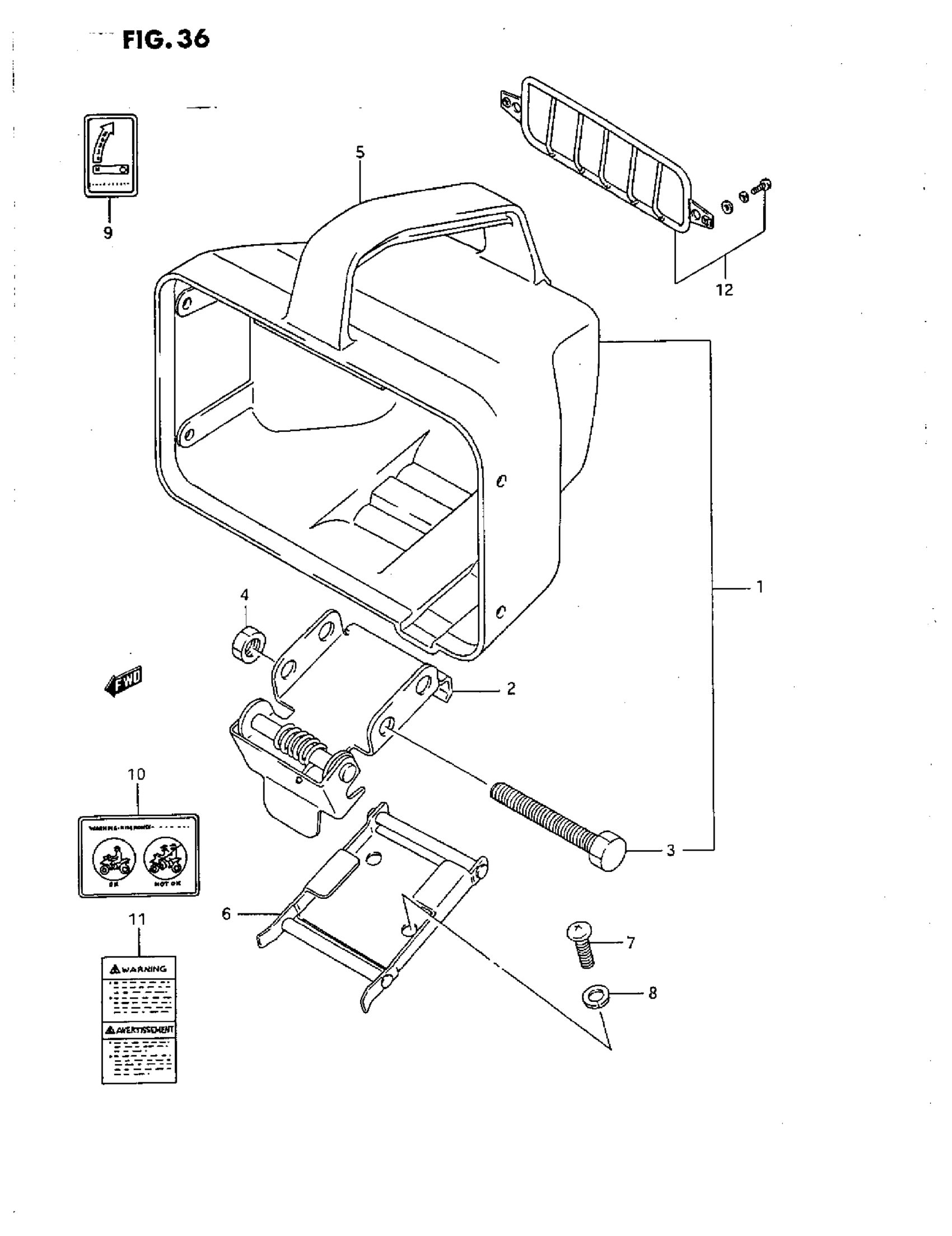

Suzuki LT-F250 (1993) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP (BLACK) | MODEL J - 51811-41BOL-291 This part replaces 51800-41B01-291.

51811-41B01-291

Unavailable

2

BRACKET

51870-41B01

Unavailable

3

BOLT This part replaces 01107-08605.

01500-0860B

$3.49

4

NUT, ADJUSTER This part replaces 08310-22085.

09140-08021

$2.63

5

HOUSING, HEADLAMP (BLACK) | MODEL K/L/M/N/P/R

51811-41B01-291

Unavailable

6

PLATE, HEADLAMP HOUSING

51860-41B01

Unavailable

7

SCREW | MODEL J/K/L This part replaces 02112-06166.

02112-0616A

$1.49

7

SCREW | MODEL M/N/P This part replaces 02112-36166.

02112-3616A

$1.97

7

SCREW | MODEL R This part replaces 02112-36163.

02112-3616A

$1.97

8

LOCK WASHER | MODEL J/K/L This part replaces 08321-21066.

08321-0106A

$1.84

9

LABEL, GEAR SHIFT

68392-24210

$2.92

10

LABEL,WARNING | MODEL J/K This part replaces 68367-04610.

68367-04611

Unavailable

11

LABEL, WARNING HEADLIGHT | MODEL J/K This part replaces 68367-41B00.

68367-20B00

Unavailable

12

GUARD SET, HEAD LAMP | OPT This part replaces 48500-19840.

48500-19841

Unavailable
