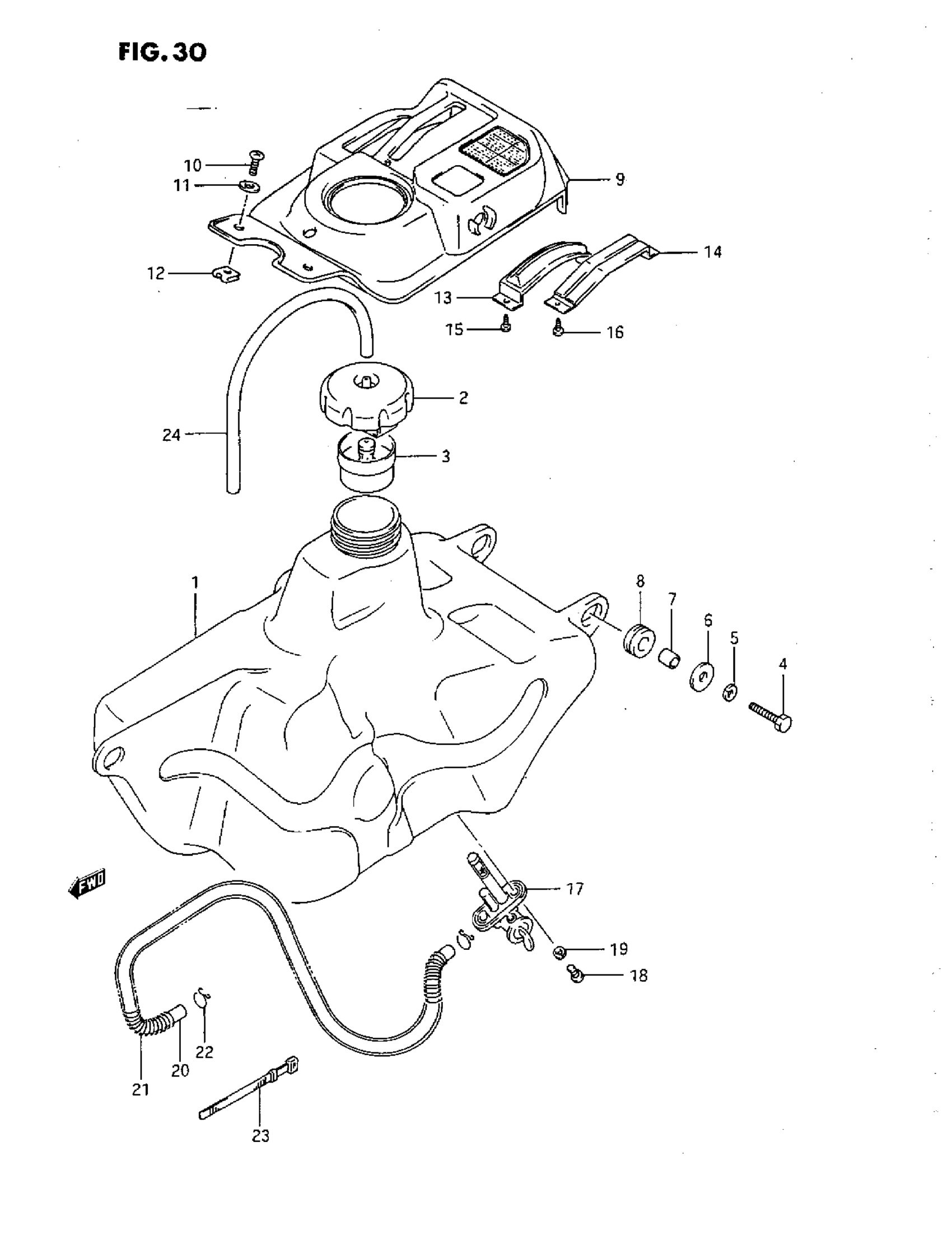

Suzuki LT-F250 (1993) FUEL TANK Diagram

TANK, FUEL This part replaces 44110-19B00.

44110-19B01

Unavailable

CAP, FUEL TANK

44200-20B00

$70.65

TUBE, FILLER INLET

44199-19A00

$6.28

BOLT | MODEL J/K/L/M This part replaces 01107-08358.

01500-0835B

$3.04

BOLT | MODEL N/P/R

09118-08121

Unavailable

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

WASHER, MUFFLER SUPPORT This part replaces 09160-08001.

09160-08503

$2.50

SPACER This part replaces 09180-08120.

09180-08209

$3.04

CUSHION

09320-12016

$2.11

COVER, FUEL TANK

44271-20B00

Unavailable

SCREW | MODEL J/K This part replaces 02142-06164.

02142-0616A

$1.49

SCREW | MODEL L/M/N/P/R This part replaces 09136-06062.

09136-06017

$2.59

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

NUT

53141-19A00

$4.34

PLATE, LEVER SEAL RH

57950-20B00

Unavailable

PLATE,REVERSE L This part replaces 44310-19B00.

44310-19B01

$11.07

SCREW | MODEL J/K/L/M/N/P

03212-04105

Unavailable

SCREW | MODEL R This part replaces 03211-04103.

03211-0410A

Unavailable

SCREW This part replaces 03511-04108.

03511-0410A

$1.75

COCK ASSY, FUEL | MODEL J This part replaces 44300-19B00.

44300-19B01

$63.76

COCK ASSY, FUEL | MODEL K/L/M/N/P/R

44300-19B01

$63.76

SCREW | MODEL J/KI/L/M

02112-06167

$1.49

SCREW | MODEL N/P This part replaces 02112-36168.

02112-36167

$2.34

SCREW | MODEL R This part replaces 02112-36163.

02112-3616A

$1.97

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

HOSE(5.3X10.5X6 | MODEL J/K/L This part replaces 09354-53103-600.

09355-53001-600

$9.35

HOSE,5X10X600 | MODEL M/N/P/R This part replaces 09354-50103-600.

44421-13ER0

$10.06

SPRING This part replaces 09440-13020.

09440-13051

$10.76

CLIP | MODEL J This part replaces 09401-10410.

09401-10401

$1.49

CLIP | MODEL K/L/M/N/P/R

09401-10401

$1.49

CLAMP

09407-14403

$2.26

HOSE,5X10X600 This part replaces 09352-50823-300.

44421-13ER0

$10.06
