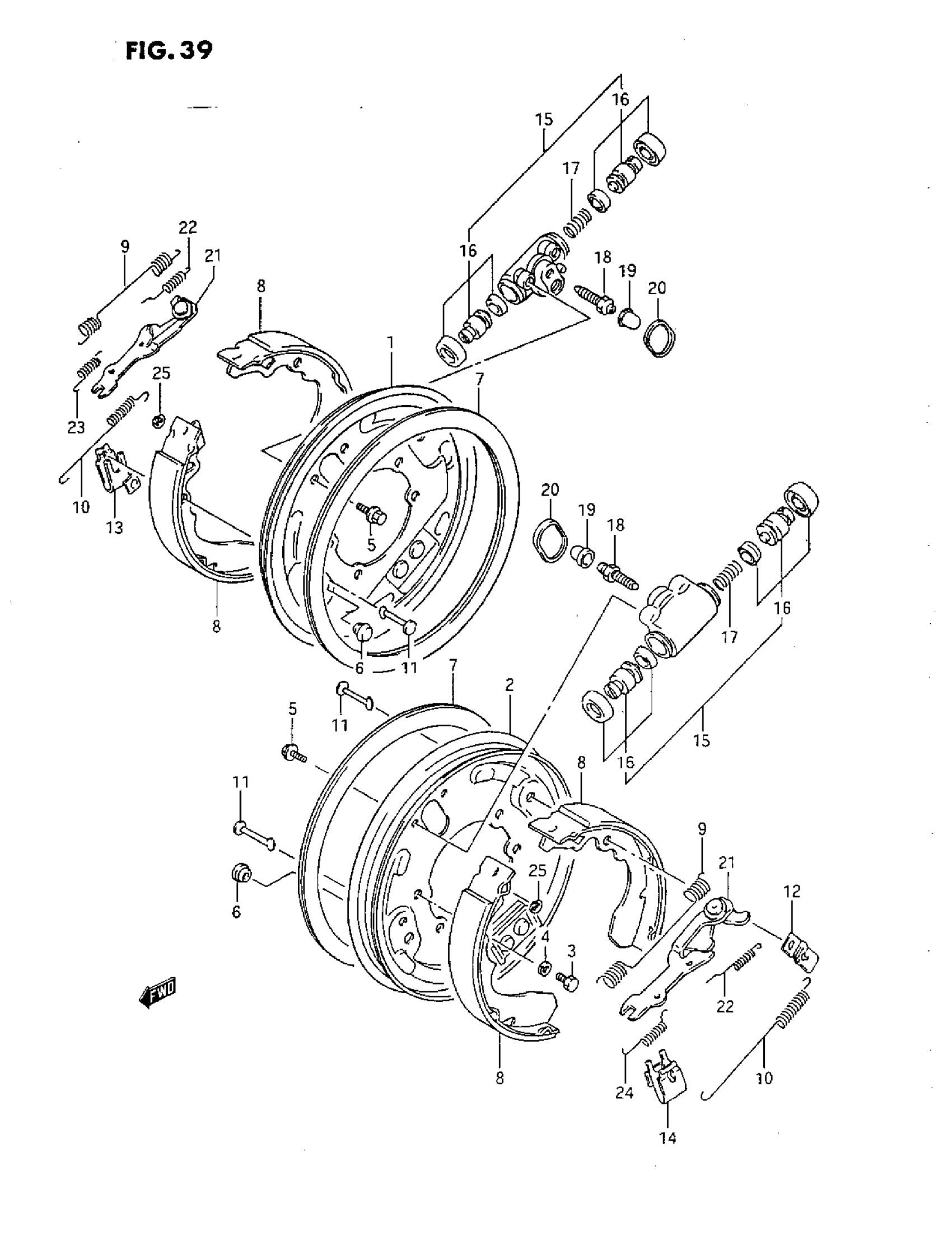

Suzuki LT-F250 (1993) FRONT WHEEL BRAKE (J/K/L) Diagram

#

Description
Price

1

PLATE, BACKING RH | MODEL J

54510-19B11

Unavailable

1

PLATE, BACKING RH | MODEL K/L

54510-19B20

Unavailable

2

PLATE, BACKING LH | MODEL J

54810-19B11

Unavailable

2

PLATE, BACKING LH | MODEL K/L

54810-19B20

Unavailable

3

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.57

4

LOCK WASHER This part replaces 08321-31086.

08321-0108A

$1.91

5

BOLT This part replaces 53131-82030.

01550-0610A

$2.01

6

PLUG,BACKING PL This part replaces 53141-82030.

53141-84010

$3.08

7

COVER, FRONT BRAKE | MODEL J

54125-19B00

Unavailable

8

SHOE SET, BRAKE This part replaces 54410-19B10.

54400-19830

$41.30

9

SPRING, SHOE RETURN UPPER This part replaces 54531-19B00.

54531-19B01

$9.47

10

SPRING, SHOE RETURN LOWER This part replaces 54532-19B00.

54532-19B01

$9.30

11

PIN, SHOE HOLD DOWN

53241-82030

$2.90

12

SPRING, SHOE HOLD DOWN

53243-85010

$5.80

13

SPRING, SHOE HOLD DOWN RH

53245-82031

$8.37

14

SPRING, SHOE HOLD DOWN LH

53244-82031

$8.48

15

CYLINDER ASSY, REAR WHEEL

54540-19B10

$89.94

16

CUP SET, WHEEL CYLINDER

53400-82811

$14.87

17

SPRING, WHEEL CYLINDER

53432-82030

$4.05

18

PLUG, BLEEDER

54542-19B00

$6.80

19

CAP, BLEEDER This part replaces 53474-82030.

55156-66310

$4.94

20

GASKET, REAR WHEEL CYLINDER

53417-82030

$2.90

21

STRUT ASSY, BRAKE RH

54550-19B10

Unavailable

21

STRUT ASSY, BRAKE LH

54850-19B10

Unavailable

22

SPRING,QUADRANT This part replaces 53714-82030.

53714-8203V

$3.56

23

SPRING, ANTIRATTLE RH This part replaces 54524-19B00.

54524-56B00

$5.80

24

SPRING, ANTIRATTLE LH This part replaces 54824-19B00.

54824-56B00

$4.29

25

E RING This part replaces 53753-85010.

08332-1104A

$1.41
