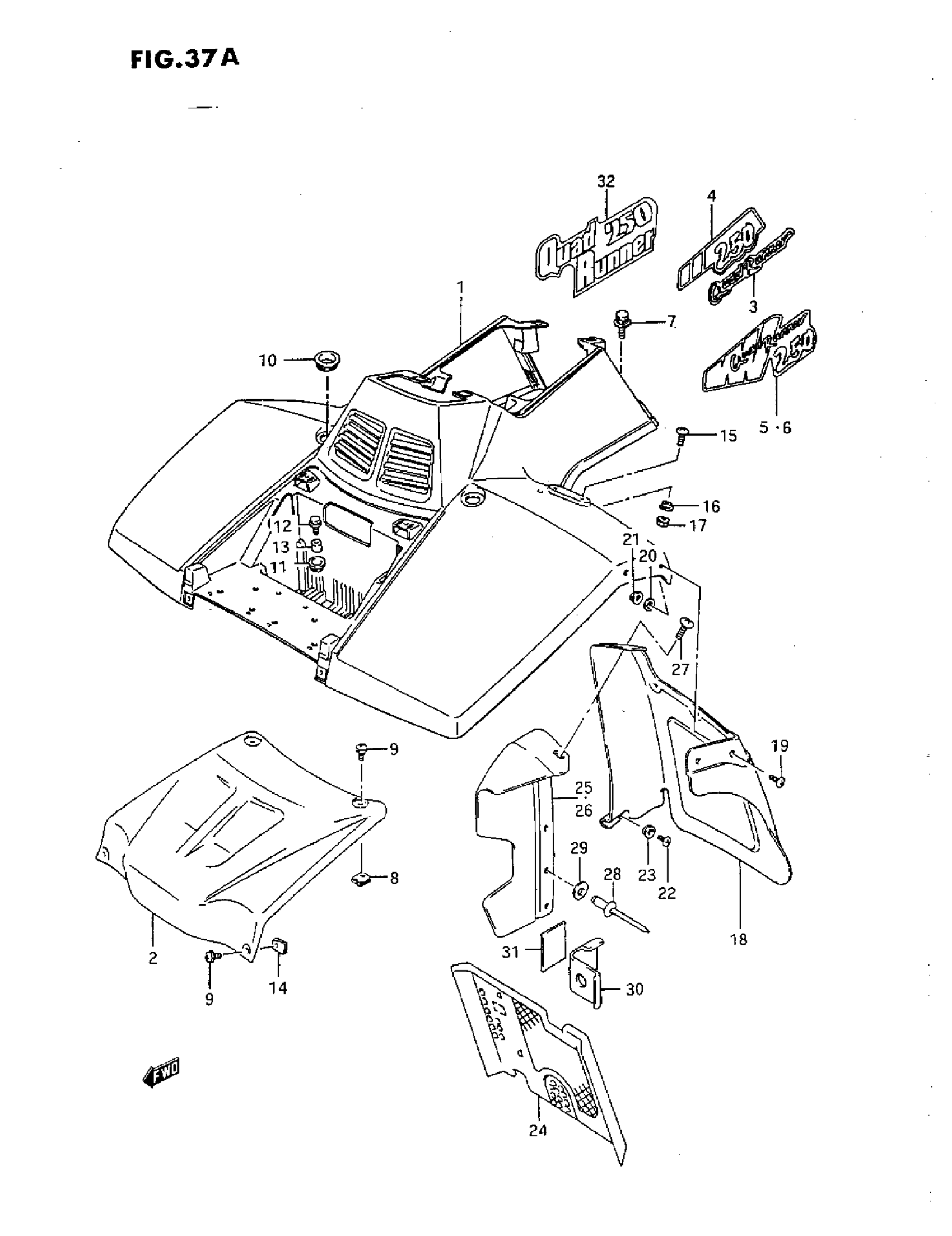

Suzuki LT-F250 (1993) FRONT FENDER (M/N/P/R) Diagram

#

Description
Price

1

FENDER, FRONT (ORANGE) | MODEL M/N

53111-19B00-25G

Unavailable

1

FENDER, FRONT (BLUE) | MODEL P/R

53111-19B00-0VT

Unavailable

2

FENDER, CENTER

53118-20B00

Unavailable

3

EMBLEM, Q , R | MODEL M

68151-20B40-0WA

Unavailable

4

TAPE, RH, 4WD | MODEL M

68155-20B00-3MA

Unavailable

4

TAPE, LH, 4WD | MODEL M

68156-20B00-3MA

Unavailable

5

TAPE, FENDER RH | MODEL N

68155-20B10-1JJ

Unavailable

5

TAPE, FENDER LH | MODEL N

68156-20B10-1JJ

Unavailable

6

TAPE, FENDER RH | MODEL P/R

68155-20B10-1TE

Unavailable

6

TAPE, FENDER LH | MODEL P/R

68156-20B10-1TE

Unavailable

7

BOLT, FENDER CENTER & REAR | MODEL M

09118-06019

$2.92

7

BOLT, FENDER REAR (L:14) | MODEL N/P/R

09118-06019

$2.92

7

BOLT, FENDER CENTER (L:20) | MODEL N/P/R

09118-06016

Unavailable

8

NUT

53141-19A00

$4.34

9

SCREW This part replaces 09136-06062.

09136-06017

$2.59

10

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

11

CUSHION This part replaces 09320-11015.

09320-11008

$2.60

12

BOLT, FRONT FENDER FRONT

09116-06025

$2.44

13

SPACER

09180-06120

$2.32

14

NUT

53141-19A00

$4.34

15

SCREW | MODEL M/N/P This part replaces 02142-06164.

02142-0616A

$1.49

15

SCREW | MODEL R This part replaces 02142-06163.

02142-0616A

$1.49

16

WASHER | MODEL M/N

09169-06026

$2.20

16

WASHER | MODEL P/R

09169-06016

$1.65

17

NUT | MODEL M/N This part replaces 09159-06055.

09159-06078

$2.62

17

NUT | MODEL P/R This part replaces 09159-06058.

09159-06078

$2.62

18

MUD FLAP, FENDER RH

53311-19B05

Unavailable

18

MUD FLAP, FENDER LH

53312-19B05

Unavailable

19

SCREW

09139-05038

$2.06

20

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.92

21

NUT This part replaces 09159-05026.

09159-05043

$2.22

22

SCREW | MODEL M/N/P This part replaces 02142-06125.

02142-0612A

$1.49

22

SCREW | MODEL R This part replaces 02142-06123.

02142-0612A

$1.49

23

WASHER This part replaces 09169-06025.

09169-06010

$2.60

24

GUARD, MUFFLER FRONT | MODEL M/N/P ->53310-20B1L This part replaces 53310-20B00.

53310-20B12

$91.95

24

GUARD, MUFFLER FRONT | MODEL R This part replaces 53310-20B11.

53310-20B12

$91.95

25

MUD FLAP, INNER RH

53411-19B01

Unavailable

26

MUD FLAP, INNER LH

53421-19B01

Unavailable

27

SCREW

09139-05037

$2.06

28

RIVET This part replaces 09229-03023.

09229-03023-XC0

Unavailable

29

WASHER

09160-03008

Unavailable

30

PLATE, INNER MUD FLAP

53421-20B00

Unavailable

31

CUSHION,FR This part replaces 53425-20B00.

46312-31D11

$5.02

32

EMBLEM, FRONT FENDER | MODEL R

68151-20B50-C2J

Unavailable
