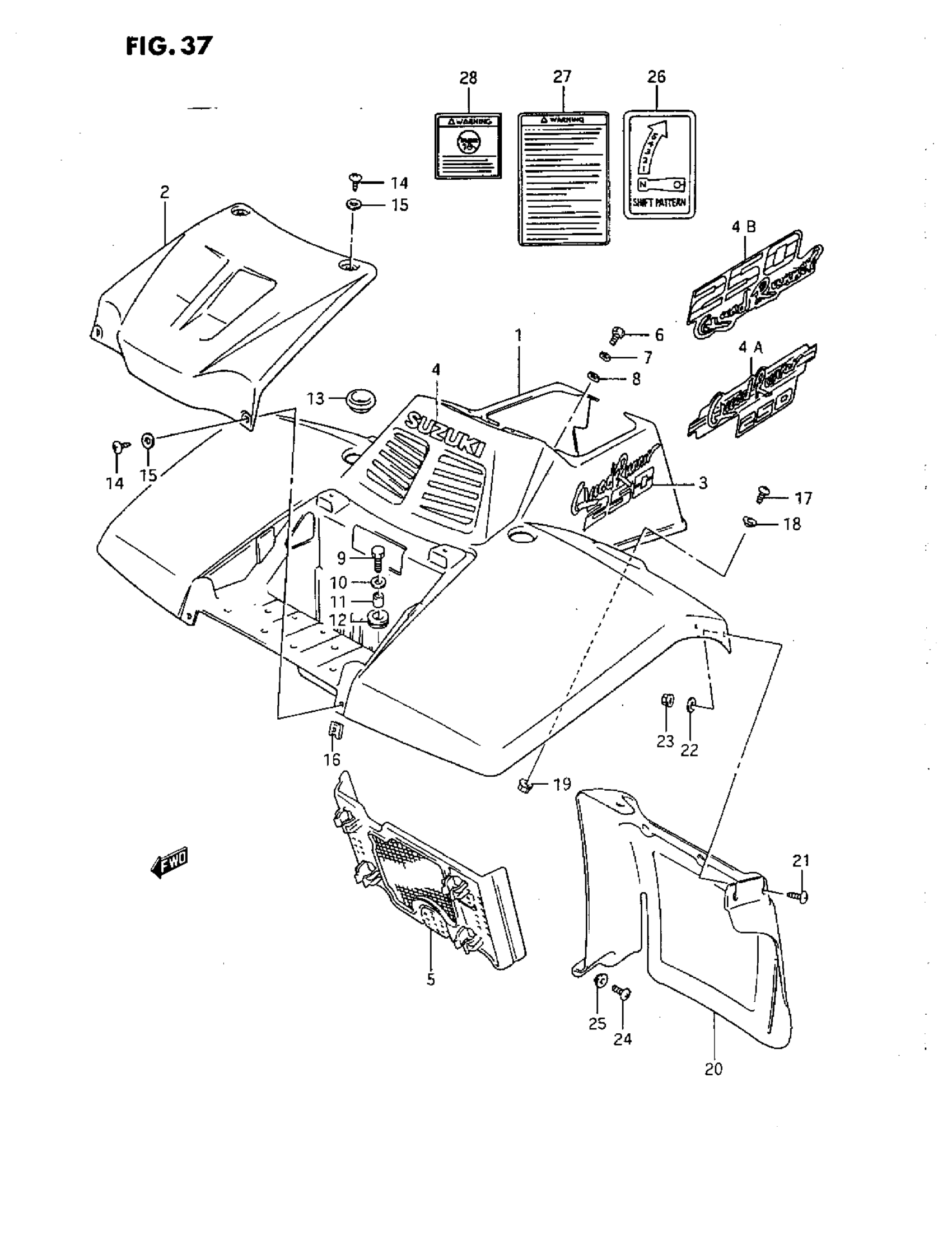

Suzuki LT-F250 (1993) FRONT FENDER (J/K/L) Diagram

#

Description
Price

1

FENDER, FRONT (ORANGE)

53111-19B00-25G

Unavailable

2

FENDER, CENTER

53118-20B00

Unavailable

3

EMBLEM, SIDE | MODEL J

68151-20B00-9SC

Unavailable

4

EMBLEM, FRONT | MODEL J

68111-19B30-7ZP

Unavailable

4

EMBLEM, SIDE RH | MODEL K

68151-20B10-0DR

Unavailable

4

EMBLEM, SIDE LH | MODEL K

68151-20B20-0DR

Unavailable

4

EMBLEM, Q.R 250 | MODEL L

68151-20B30-3MA

Unavailable

5

GUARD, MUFFLER FRONT This part replaces 53310-20B00.

53310-20B12

$91.95

6

BOLT | MODEL J This part replaces 01107-06127.

01500-06127

$1.97

6

BOLT, FENDER CENTER & REAR | MODEL K/L

09100-06067

Unavailable

7

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

8

WASHER This part replaces 09160-06006.

09160-06084

$1.78

9

BOLT This part replaces 01107-06257.

01500-06257

$1.97

10

WASHER This part replaces 09160-06006.

09160-06084

$1.78

11

SPACER

09180-06120

$2.32

12

CUSHION This part replaces 09320-11015.

09320-11008

$2.60

13

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

14

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

15

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

16

NUT

53141-19A00

$4.34

17

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

18

WASHER

09169-06026

$2.20

19

NUT This part replaces 09159-06055.

09159-06078

$2.62

20

MUD FLAP, FENDER RH This part replaces 53311-19B04.

53311-19B05

Unavailable

20

MUD FLAP, FENDER LH This part replaces 53312-19B04.

53312-19B05

Unavailable

21

SCREW

09139-05038

$2.06

22

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.92

23

NUT This part replaces 09159-05026.

09159-05043

$2.22

24

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

25

WASHER This part replaces 09169-06025.

09169-06010

$2.60

26

LABEL, GEAR SHIFT

68392-24210

$2.92

27

LABEL, WARNING MAIN | MODEL K/L This part replaces 68366-25C00.

68366-20B50

Unavailable

28

LABEL, WARNING | MODEL L

68367-25C00

Unavailable
