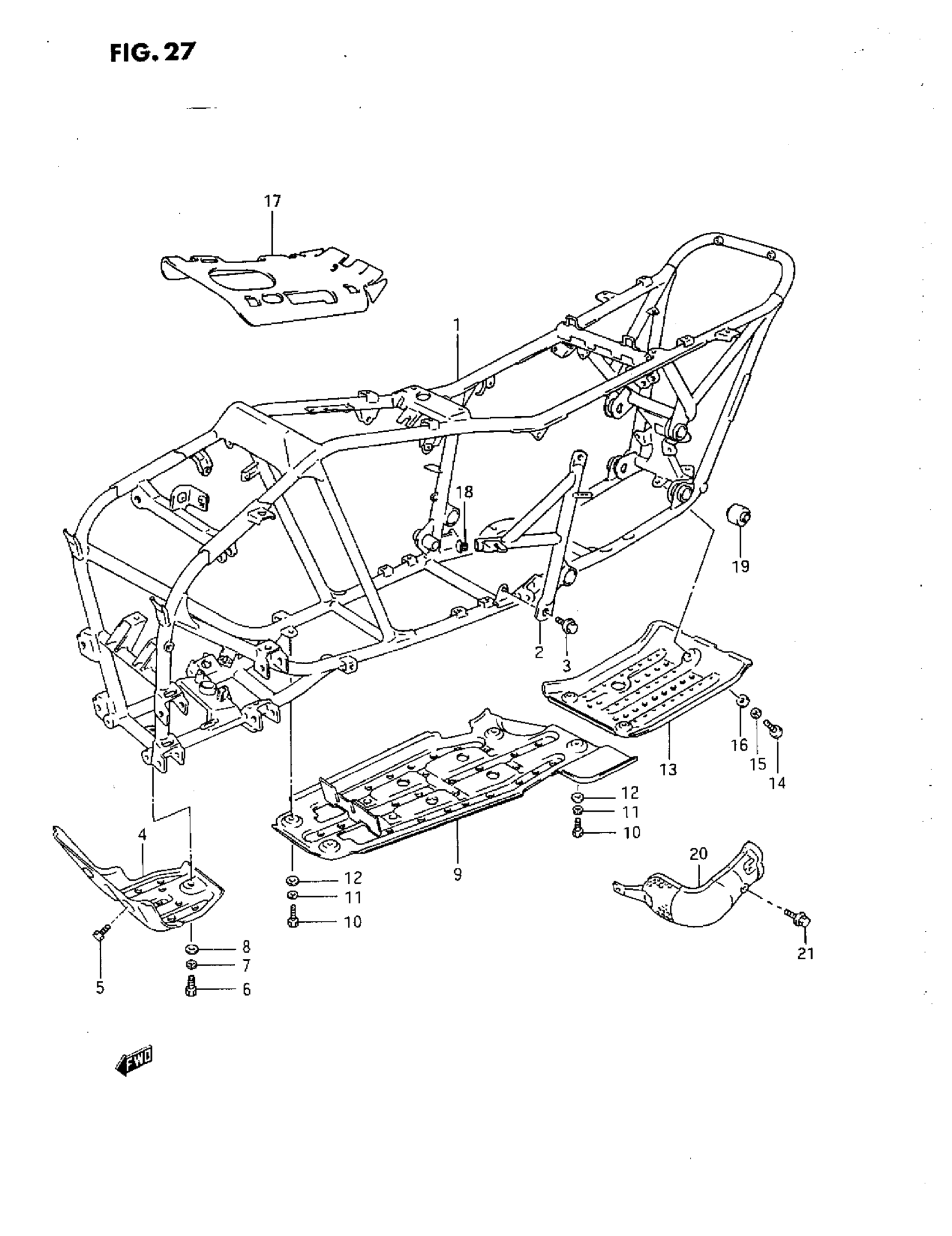

Suzuki LT-F250 (1993) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J/K This part replaces 41100-20B00-019.

41100-20841-019

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 41100-20851-019.

41100-20854-019

Unavailable

1

FRAME SET (BLACK) | MODEL M This part replaces 41100-20860-019.

41100-20862-019

Unavailable

1

FRAME SET (BLACK) | MODEL N/P/R This part replaces 41100-20861-019.

41100-20862-019

Unavailable

2

PLATE, MOUNTING FRONT (BLACK) | MODEL J/K

41910-19B01-019

Unavailable

2

PLATE. MOUNTING FRONT (BLACK) | MODEL L This part replaces 41910-19B20-019.

41910-39D00-019

Unavailable

2

PLATE, MOUNTING FRONT (BLACK) | MODEL M/N/P/R

41910-39D00-019

Unavailable

3

BOLT

09103-10165

$4.62

4

PROTECTOR, FRONT | MODEL J This part replaces 42511-20B00.

42511-20B11

Unavailable

4

PROTECTOR, FRONT | MODEL K/L/M/N/P/R This part replaces 42511-20B10.

42511-20B11

Unavailable

5

BOLT | MODEL J/K/L/M This part replaces 01107-06126.

01500-0612A

$1.78

5

BOLT | MODEL N/P This part replaces 01177-06126.

01580-0612A

$2.32

5

BOLT | MODEL R This part replaces 01580-06123.

01580-0612A

$2.32

6

BOLT | MODEL J/K/L/M This part replaces 01107-06166.

01500-0616A

$1.78

6

BOLT | MODEL N/P/R This part replaces 01177-06166.

01580-0616A

$2.42

7

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

8

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

9

PROTECTOR, MIDDLE | MODEL J/K This part replaces 42560-19B02.

42560-19B03

Unavailable

9

PROTECTOR, MIDDLE | MODEL L/M/N/P/R This part replaces 42560-19B20.

42560-19B03

Unavailable

10

BOLT | MODEL J/K/L/M This part replaces 01107-06166.

01500-0616A

$1.78

10

BOLT | MODEL N/P/R This part replaces 01177-06166.

01580-0616A

$2.42

11

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

12

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

13

PROTECTOR, ENGINE | MODEL J/K/L This part replaces 61390-19B00.

61390-19B02

$125.61

13

PROTECTOR, ENGINE | MODEL M/N/P/R This part replaces 61390-19B01.

61390-19B02

$125.61

14

BOLT | MODEL J/K/L/M This part replaces 01107-06166.

01500-0616A

$1.78

14

BOLT | MODEL N/P/R This part replaces 01177-06166.

01580-0616A

$2.42

15

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

16

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

17

NO DESCRIPTION AVAILABLE This part replaces 47157-19B10.

47157-19B11

Unavailable

18

CAP | MODEL L/M/N/P/R

43978-24500

$8.42

19

BUSH | MODEL L/M/N/P/R

09319-10064

$21.22

20

COVER, MUD | MODEL M/N/P/R

42570-39D00

Unavailable

21

BOLT | MODEL M/N/P This part replaces 01517-06105.

01550-0610A

$1.97

21

BOLT | MODEL R This part replaces 01580-06123.

01580-0612A

$2.32
