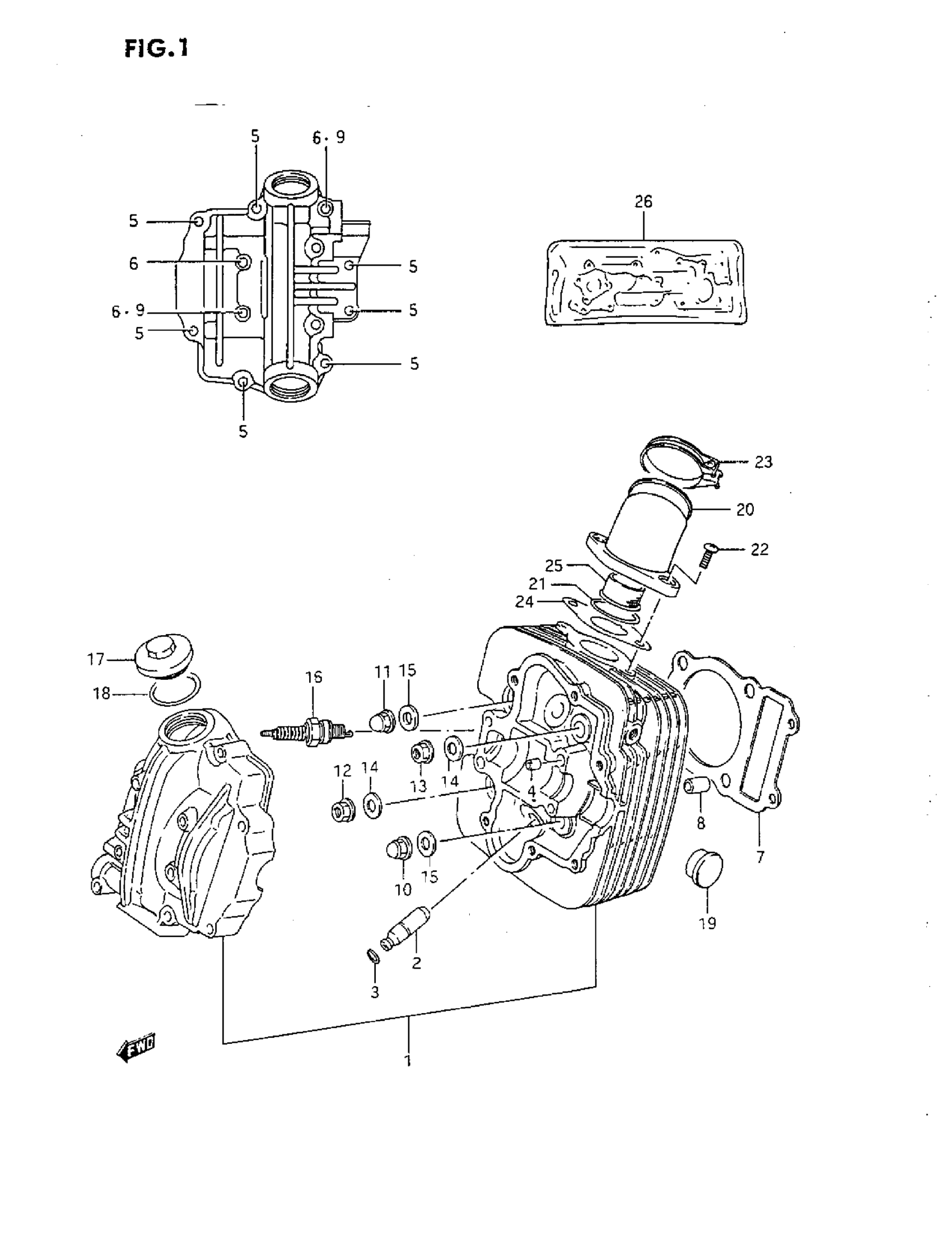

Suzuki LT-F250 (1993) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-19B01

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$32.10

3

.RING (10X85)

09381-10004

$1.50

4

PIN

09206-08001

$1.78

5

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06354.

01550-0635A

$2.32

5

BOLT | MODEL R This part replaces 01550-06353.

01550-0635A

$2.32

6

BOLT This part replaces 01517-06605.

01550-0660A

$3.05

7

GASKET, CYLINDER HEAD

11141-19B00

$15.10

8

PIN

04211-11169

$1.78

9

GASKET

09168-06023

$2.35

10

NUT This part replaces 09159-08064.

09159-08049

$4.71

11

NUT | MODEL J/K/L/M

09159-08074

$5.36

11

NUT | MODEL N/P/R This part replaces 09159-08064.

09159-08049

$4.71

12

NUT | MODEL J/K/L/M/N/P This part replaces 08316-16085.

08316-1008B

$2.66

12

NUT | MODEL R This part replaces 08316-10083.

08316-1008B

$2.66

13

NUT (CHROME) | MODEL J/K/L/M This part replaces 08316-16088.

08316-10087

$2.26

13

NUT | MODEL N/P This part replaces 08316-16085.

08316-1008B

$2.66

13

NUT | MODEL R This part replaces 08316-10083.

08316-1008B

$2.66

14

WASHER

09160-08039

$2.03

15

GASKET | MODEL J/K/L/M/N This part replaces 09168-08012.

09168-08013

$2.92

15

GASKET (8.5X L7X2.3) | MODEL P/R

09168-08021

$2.61

16

SPARK PLUG (NGK,DR7EA) | GAP: 024 -.028 INCHES/.6-.7 MM This part replaces 09482-00182.

09482-00398

$3.03

17

CAP, INSPECTION | -E.NO.125972 This part replaces 11175-32400.

11175-42A00

$11.46

17

CAP INSPECTION | E.NO.125973- This part replaces 11175-18900.

11175-18920

$12.20

18

.O RING (D:3,ID:29.5)

09280-30001

$1.72

19

PLUG, HEAD

09241-22002

$5.24

20

PIPE, INTAKE | MODEL J/K

13110-19B02

Unavailable

20

PIPE ASSY,INTAK | MODEL L/M/N/P/R This part replaces 13110-19B50.

13101-19B51

$70.20

21

O-RING (D:2.1, ID:34.7)

09280-35005

$9.05

22

SCREW | MODEL J/K/L This part replaces 02152-06205.

02112-0620A

$1.49

22

SCREW | MODEL M/N/P This part replaces 02112-76205.

02112-7620B

$2.78

22

SCREW | MODEL R This part replaces 02112-76203.

02112-7620B

$2.78

23

CLAMP | MODEL J/K

09402-46208

$4.64

23

CLAMP | MODEL L/M/N/P/R

09402-50208

$4.77

24

GASKET, INTAKE PIPE | MODEL J/K/L This part replaces 13120-19B00.

13120-19B01

$4.72

24

GASKET, INTAKE PIPE | MDOEL M/N/P/R

13120-19B01

$4.72

25

NET, INTAKE | MODEL J/K

13130-19B00

$21.58

25

NET, INTAKE | MODEL L/M/N/P/R

13130-19B50

Unavailable

26

GASKET SET | MODEL J/K/L This part replaces 11400-19862.

11401-19864

$187.13

26

GASKET SET | MODEL M/N This part replaces 11400-19864.

11401-19864

$187.13

26

GASKET SET | MODEL P/R This part replaces 11400-19866.

11401-19864

$187.13
