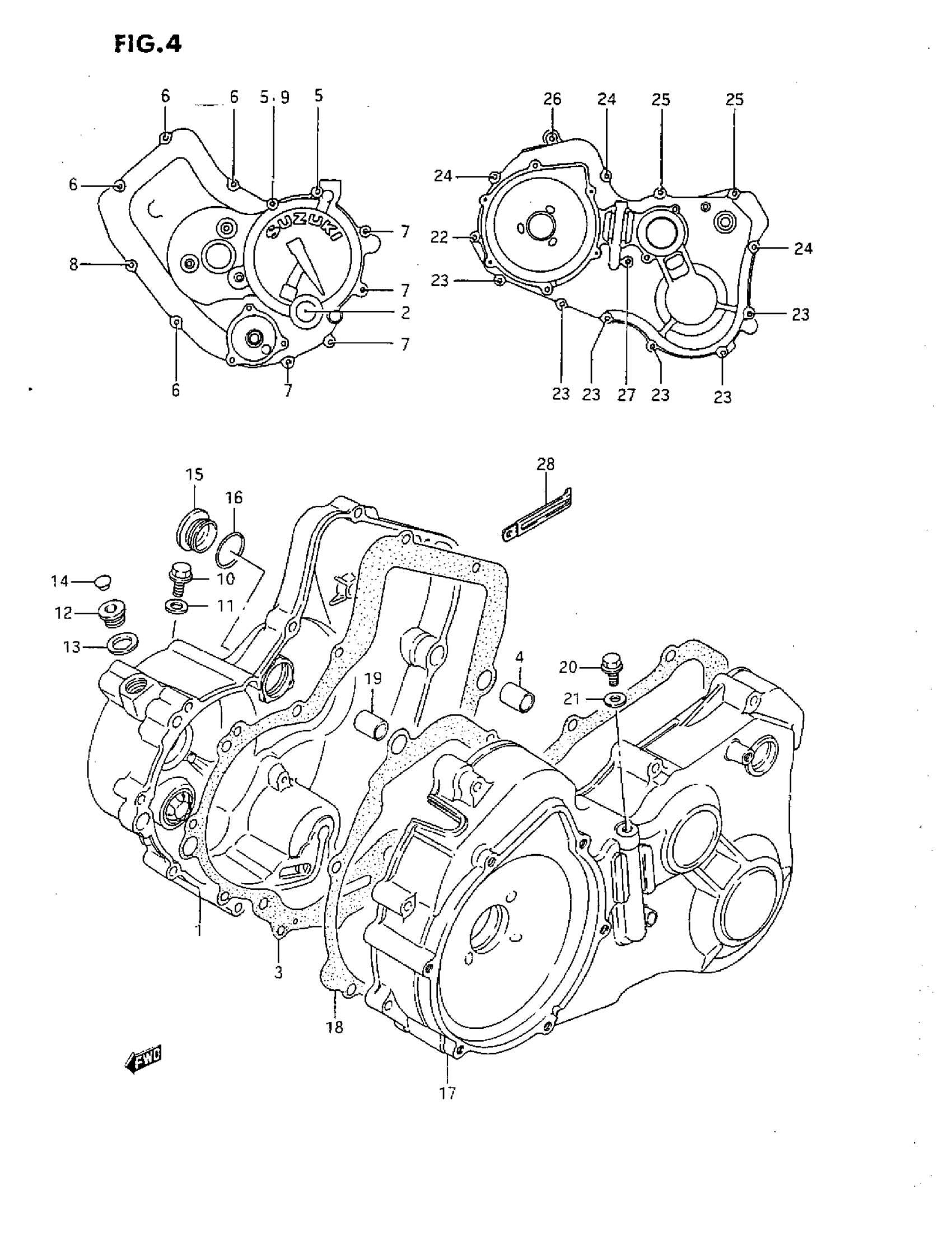

Suzuki LT-F250 (1993) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL J/K/L This part replaces 11340-19B00.

11340-19B01

Unavailable

1

COVER, CLUTCH | MODEL M/N/P

11340-19B01

Unavailable

1

COVER, CLUTCH | MODEL R

11340-19B20

Unavailable

2

LENS, OIL CHECK

11971-33210

$18.20

3

GASKET, CLUTCH | MODEL J/K/L This part replaces 11482-19B01.

11482-19B13

$26.99

3

GASKET, CLUTCH | MODEL M/N/P/R This part replaces 11482-19B10.

11482-19B13

$26.99

4

PIN (10.4XL3X22) | MODEL J/K/L/M/N/P

09206-13004

$2.40

4

PIN | MODEL R This part replaces 09206-13001.

04211-13189

$2.19

5

BOLT (6X100) | MODEL J/K/L/M/N/P This part replaces 09103-06105.

09103-06501

$4.17

5

BOLT (6XLOO) | MODEL R

09103-06501

$4.17

6

BOLT, WATER PUMP | MODEL J/K/L/M/N/P This part replaces 01547-06354.

01547-0635B

$2.73

6

BOLT, WATER PUMP | MODEL R This part replaces 01547-06353.

01547-0635B

$2.73

7

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06404.

01547-0640B

$2.75

7

BOLT | MODEL R This part replaces 01547-06403.

01547-0640B

$2.75

8

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06505.

01547-0650B

$2.75

8

BOLT | MODEL R This part replaces 01547-06503.

01547-0650B

$2.75

9

GASKET

09168-06023

$2.35

10

BOLT (8X12) | MODEL J/K/L/M/N/P This part replaces 01517-08125.

01550-0812A

$2.32

10

BOLT (8X12) | MODEL R This part replaces 01550-08123.

01550-0812A

$2.32

11

GASKET

09168-08015

$2.79

12

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.64

13

GASKET

09168-16002

$1.91

14

CAP

09250-08012

$2.15

15

CAP, CLUTCH ADJUST

09259-30005

$9.73

16

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

$2.76

17

COVER, TRANSFER | MODEL J/K/L/M/N/P This part replaces 11351-19B00.

11351-19B12

Unavailable

17

COVER, TRANSFER | MODEL R This part replaces 11351-19B10.

11351-19B12

Unavailable

18

GASKET, TRANSFER COVER | MODEL J/K/L This part replaces 11483-19B00.

11483-19B13

$29.09

18

GASKET, TRANSFER COVER | MODEL M/N/P/R This part replaces 11483-19B10.

11483-19B13

$29.09

19

PIN (10.4XL3X22) | MODEL J/K/L/M/N/P

09206-13004

$2.40

19

PIN | MODEL R This part replaces 09206-13001.

04211-13189

$2.19

20

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06105.

01550-0610A

$1.97

20

BOLT | MODEL R This part replaces 01550-06103.

01550-0610A

$1.97

21

GASKET

09168-06023

$2.35

22

BOLT, FINAL GEAR CASE COVER | MODEL J/K/L/M/N/P This part replaces 01547-06254.

01547-0625B

$2.45

22

BOLT, FINAL GEAR CASE COVER | MODEL R This part replaces 01547-06253.

01547-0625B

$2.45

23

BOLT, WATER PUMP | MODEL J/K/L/M/N/P This part replaces 01547-06354.

01547-0635B

$2.73

23

BOLT, WATER PUMP | MODEL R This part replaces 01547-06353.

01547-0635B

$2.73

24

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06404.

01547-0640B

$2.75

24

BOLT | MODEL R This part replaces 01547-06403.

01547-0640B

$2.75

25

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06505.

01547-0650B

$2.75

25

BOLT | MODEL R This part replaces 01547-06503.

01547-0650B

$2.75

26

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06555.

01547-0655B

$2.75

26

BOLT | MODEL R This part replaces 01547-06553.

01547-0655B

$2.75

27

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06654.

01547-0665B

$3.18

27

BOLT | MODEL R This part replaces 01547-06653.

01547-0665B

$3.18

28

CLAMP, AIR VENT HOSE This part replaces 09404-06419.

09404-06435

$3.68

28

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74
