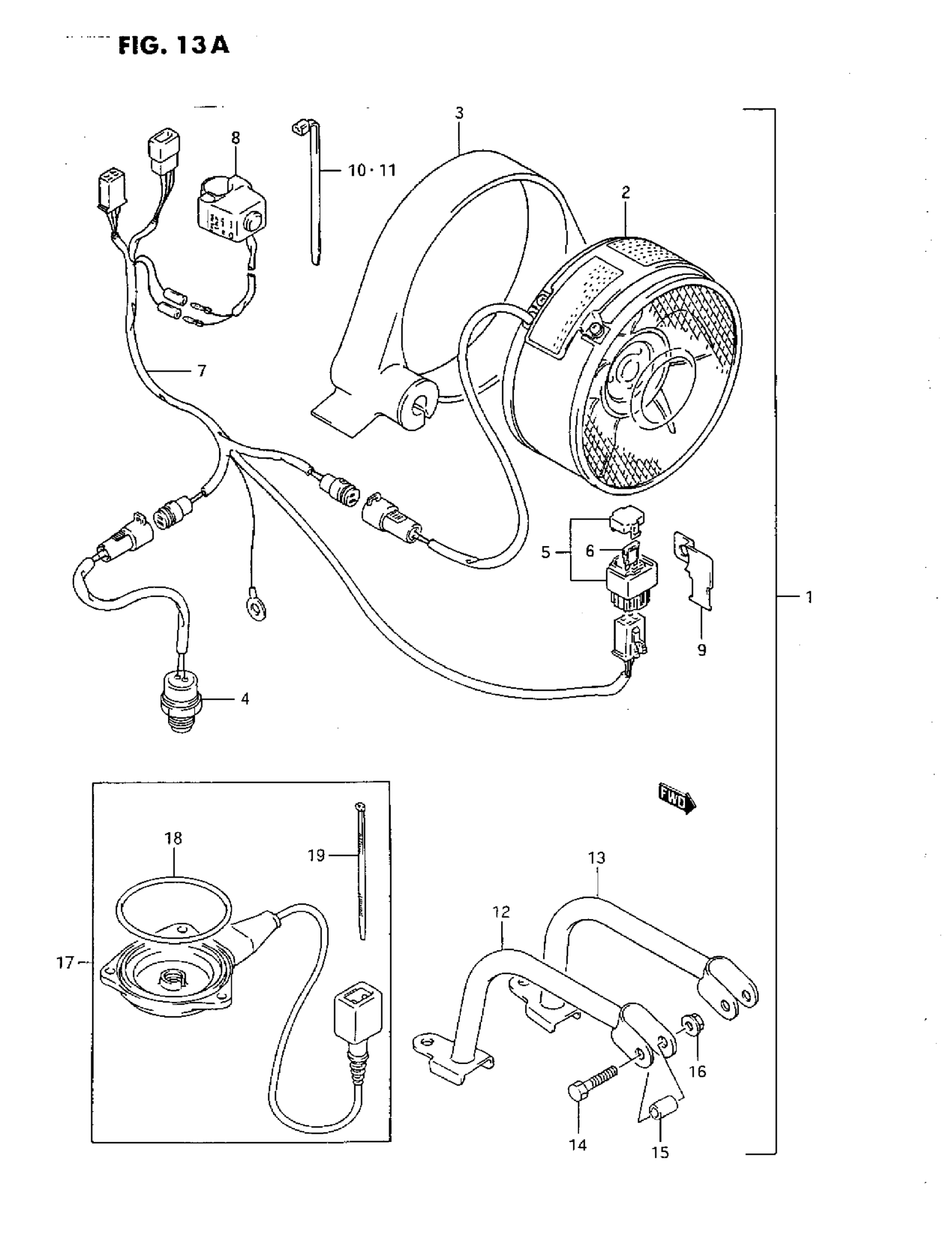

Suzuki LT-F250 (1993) COOLING FAN (J/K/L/M:OPTIONAL) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J/K This part replaces 17000-19810.

17000-19852

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L/M This part replaces 17000-19821.

17000-19852

Unavailable

2

FAN ASSY, COOLING

17110-19B00

Unavailable

3

BAND, COOLING FAN

17121-19B01

Unavailable

4

SWITCH, COOLING FAN

17680-18B00

Unavailable

5

BOX ASSY, FUSE

36740-24510

Unavailable

6

FUSE (IDA)

09481-10101

$2.07

7

LEAD WIRE

36858-19B00

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 37910-18B00.

37910-19B00

Unavailable

9

BRACKET, TURN RELAY This part replaces 38621-20A00.

38621-18D00

Unavailable

10

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:165)

09407-18402

$2.19

12

TUBE, COOLING FAN RH | FOR 17000 -19810 This part replaces 41970-19B10.

41970-19B20

Unavailable

12

TUBE, COOLING FAN RH | FOR 17000 -19821

41970-19B20

Unavailable

13

TUBE, COOLING FAN LH | FOR 17000 -19810 This part replaces 41980-19B10.

41980-19B21

Unavailable

13

TUBE, COOLING FAN LH | FOR 17000 -19821

41980-19B21

Unavailable

14

BOLT (8X35) This part replaces 01517-08355.

01550-0835A

$3.04

15

SPACER (L:19)

09180-08067

$2.41

16

NUT This part replaces 08316-16085.

08316-1008B

$2.66

17

HEATER SET, ENGINE This part replaces 16900-19B00.

16900-19810

Unavailable

18

O-RING

09280-82001

$5.18

19

CLAMP

09407-14403

$2.26
