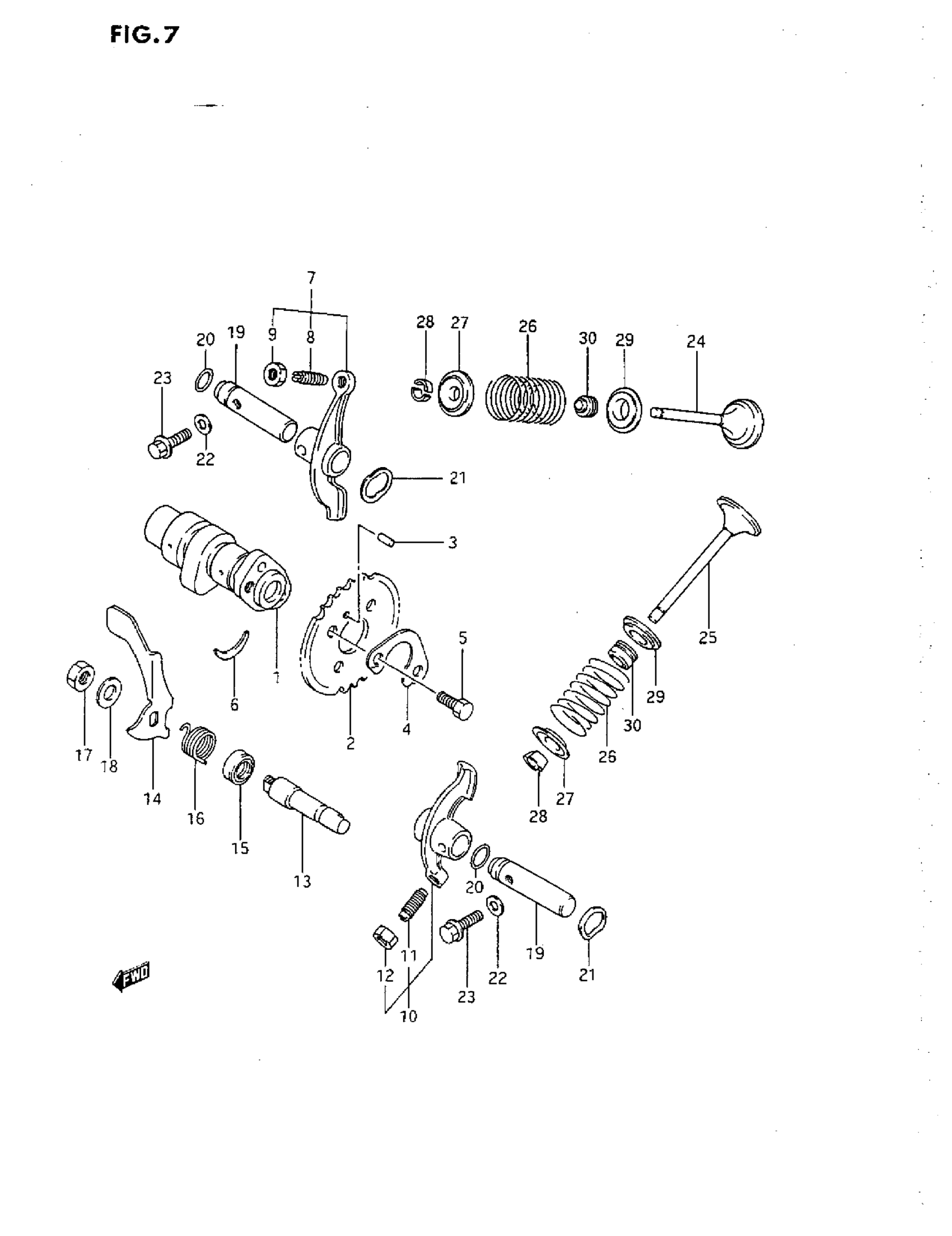

Suzuki LT-F250 (1993) CAM SHAFT-VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-18A00

$182.90

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

$22.98

3

PIN

09261-05005

$1.49

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.51

5

BOLT (6XL 0.5)

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM ASSY, VALVE ROCKER | MODEL J/K This part replaces 12840-05200.

12850-25C00

$43.16

7

ARM ASSY, VALVE ROCKER | MODEL L/M/N This part replaces 12840-25C00.

12850-25C00

$43.16

7

ARM ASSY, VALVE ROCKER | MODEL P/R This part replaces 12850-24400.

12850-25C00

$43.16

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM ASSY, VALVE ROCKER | MODEL J/K This part replaces 12850-24400.

12850-25C00

$43.16

10

ARM ASSY, VALVE ROCKER | MODEL L/M/N

12850-25C00

$43.16

10

ARM ASSY, VALVE ROCKER | MODEL P/R This part replaces 12850-24400.

12850-25C00

$43.16

11

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

SHAFT, DECOMP

12941-19B00

$29.25

14

LEVER, DECOMP SHAFT This part replaces 12942-19B00.

12942-19B01

$5.60

15

OIL SEAL

09282-10014

$6.70

16

SPRING

09448-17014

$4.07

17

NUT, ADJUSTER | MODEL J/K/L/M/N/P This part replaces 08310-22085.

09140-08021

$2.63

17

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.84

18

WASHER | MODEL J/K/L/M/N/P This part replaces 08322-11084.

08322-0108A

$1.92

18

WASHER | MODEL R This part replaces 08322-01083.

08322-0108A

$1.92

19

SHAFT, VALVE ROCKER ARM

12861-05201

$19.72

20

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

21

WASHER

09164-12021

$2.03

22

GASKET

09168-06023

$2.35

23

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06254.

01550-0625A

$1.97

23

BOLT | MODEL R This part replaces 01550-06253.

01550-0625A

$1.97

24

VALVE, INTAKE

12911-19B00

$39.48

25

VALVE, EXHAUST

12912-18A00

$62.11

26

SPRING, VALVE

12921-19B00

$14.85

27

RETAINER, SPRING This part replaces 12931-19B00.

12931-19B01

$11.95

28

COTTER, VALVE

12932-24400

$1.94

29

SEAT, SPRING

12933-19B00

$8.30

30

OIL SEAL (5.5X11X8.2) | MODEL J/K/L/M/N/P This part replaces 09289-05003.

09289-05015

$6.70

30

OIL SEAL | MODEL R

09289-05015

$6.70
