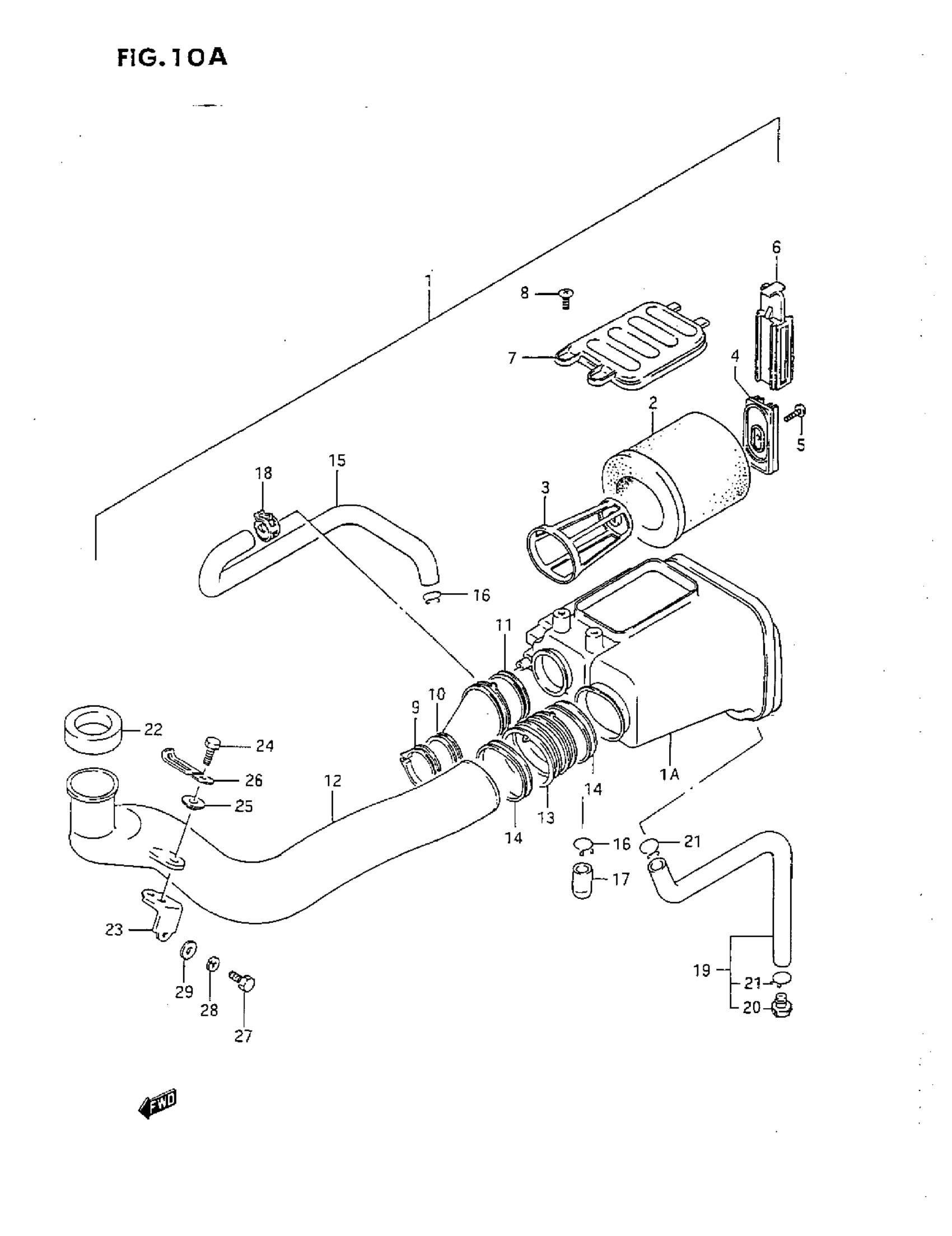

Suzuki LT-F250 (1993) AIR CLEANER (M/N/P/R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL M/N/P This part replaces 13700-19B55.

13700-39D01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 13700-19B56.

13700-39D01

Unavailable

1

CASE, AIR CLEANER | MODEL R

13720-19B80

Unavailable

2

FILTER

13781-19B00

$27.40

3

HOLDER This part replaces 13790-19B00.

13810-39D00

$24.39

4

GUIDE, SLIDER

13797-19B00

$3.56

5

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

6

SLIDER

13798-33400

$10.28

7

CAP

13750-19B00

$16.13

8

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

9

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

10

TUBE,OUTLET This part replaces 13881-19B20.

13881-19B21

$15.10

11

..CLAMP

09402-60208

$5.11

12

TUBE, INLET This part replaces 13891-19B11.

13891-19B12

$100.02

13

JOINT

13889-19B01

$14.20

14

CLAMP

13826-19B00

$7.97

15

TUBE, BREATHER

13853-19B00

Unavailable

16

CLIP

09401-14301

$2.35

17

.PLUG

13859-41B10

$7.38

18

CLIP This part replaces 13824-43400.

09401-14404

$2.28

19

TUBE ASSY, DRAIN

13870-19B80

Unavailable

20

PLUG, DRAIN

13877-00190

$5.32

21

CLIP

09401-14301

$2.35

22

CAP, INLET

13892-19B00

$13.92

23

BRACKET

13761-19B00

$6.38

24

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

25

SPACER

13838-02B00

$3.56

26

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74

27

BOLT This part replaces 01107-06127.

01500-06127

$1.97

28

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

29

WASHER This part replaces 08322-21067.

08322-01067

$2.13
