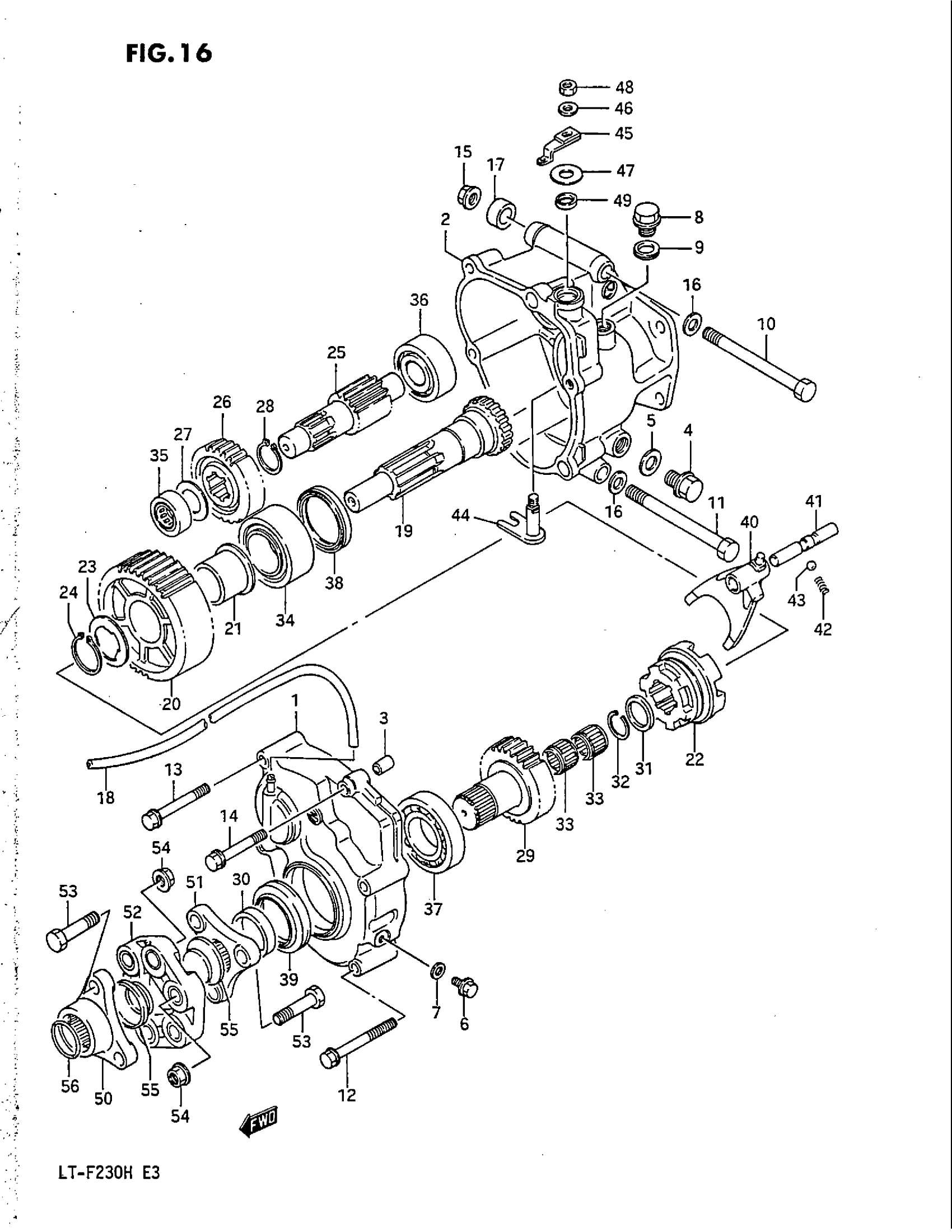

Suzuki LT-F230 (1987) TRANSMISSION (2) Diagram

#

Description
Price

1

CASE, SUB TRANSMISSION FRONT

29510-18B01

Unavailable

2

CASE, SUB TRANSMISSION REAR

29521-18B00

Unavailable

3

PIN

04211-11189

$1.78

4

PLUG, OIL DRAIN

01514-12166

Unavailable

5

GASKET

09168-12002

$1.59

6

BOLT This part replaces 01517-06108.

01550-06107

$2.80

7

GASKET

09168-06023

$2.35

8

PLUG, OIL FILLER

09247-14015

$4.45

9

GASKET

09168-14004

$1.83

10

NO DESCRIPTION AVAILABLE This part replaces 09100-10116.

09116-10042

Unavailable

11

BOLT (L:115)

09100-10239

Unavailable

12

BOLT This part replaces 01517-08658.

01550-08657

$4.68

13

.BOLT This part replaces 01517-08556.

01550-0855A

$3.05

14

BOLT This part replaces 01517-08456.

01550-0845A

$3.14

15

NUT, REAR SWGARM BRACKET This part replaces 09159-10044.

09159-10115

$3.55

16

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.84

17

SPACER (10.5X20X10)

29525-18B00

Unavailable

18

HOSE (4.2X7X1550)

09343-04119

Unavailable

19

SHAFT, MAIN

29111-18B00

Unavailable

20

GEAR, MAIN SHAFT (NT:39)

29221-18B01

Unavailable

21

BUSH

29225-18B00

Unavailable

22

DOG

29231-18B02

Unavailable

23

WASHER

09167-28006

Unavailable

24

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

25

NO DESCRIPTION AVAILABLE This part replaces 29121-18B02.

29121-18B03

Unavailable

26

GEAR, COUNTER SHAFT (NT:26)

29241-18B01

Unavailable

27

WASHER

08211-20341

$2.80

28

SNAP RING

09380-25003

$3.04

29

GEAR, INPUT (NT:28)

29211-18B03

Unavailable

30

SPACER (30X38X9)

09180-30019

Unavailable

31

WASHER

08211-20303

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 09381-22005.

09381-22009

Unavailable

33

BEARING (18X22X16)

09263-18022

Unavailable

34

BEARING (30X62X23.8) This part replaces 09267-30009.

09267-30005

$119.55

35

BEARING (20X34X18)

09263-20062

$46.98

36

BEARING (20X52X22.2)

09267-20001

Unavailable

37

BEARING, LH This part replaces 09262-30064.

09262-30066

Unavailable

38

OIL SEAL (38X52X8) This part replaces 09283-38010.

09283-38017

$15.67

39

OIL SEAL

09283-38015

Unavailable

40

FORK, GEAR SHIFTING NO.5

29311-18B00

Unavailable

41

SHAFT, NO.3

29321-18B01

Unavailable

42

SPRING

09440-05005

$1.58

43

BALL This part replaces 06112-07004.

06111-07004

$1.49

44

SHAFT, GEAR SHIFTING

29330-18B01

Unavailable

45

ARM

29340-18B00

Unavailable

46

WASHER This part replaces 08322-11088.

08322-01087

$2.13

47

WASHER (10.5X24X1.0)

09160-10020

$2.05

48

NUT, ADJUSTER This part replaces 08310-22085.

09140-08021

$2.63

49

OIL SEAL

09282-10001

$4.92

50

JOINT SUB T/M C This part replaces 27131-18B01.

27131-18B02

Unavailable

51

JOINT SUB T/M C This part replaces 27132-18B01.

27132-18B02

Unavailable

52

COUPLING

27170-18B10

Unavailable

53

BOLT

09100-10254

Unavailable

54

NUT This part replaces 08316-16106.

08316-1010B

$2.66

55

PLUG

09241-34004

Unavailable

56

O RING (D:2.4,ID:27.7)

09280-28005

$2.43
