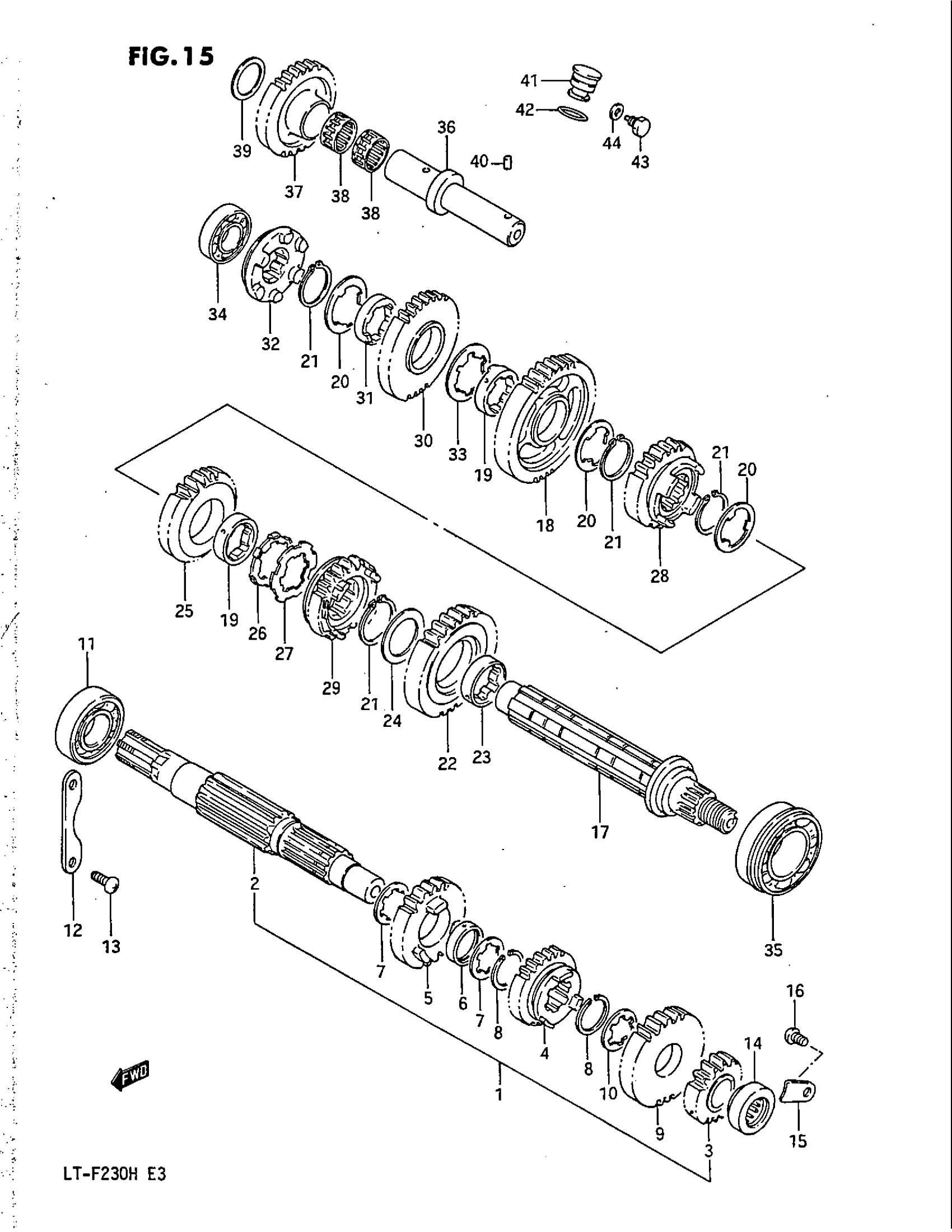

Suzuki LT-F230 (1987) TRANSMISSION (1) Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 10

24120-18B00

Unavailable

2

COUNTERSHAFT (NT:12) This part replaces 24121-18A02.

24121-18A03

Unavailable

3

GEAR, 2ND DRIVE (NT:15)

24221-18A00

$115.77

4

GEAR,3RD DRIVE This part replaces 24231-18A01.

24231-18A03

$119.97

5

GEAR, 4TH DRIVE (NT:18)

24241-18B00

Unavailable

6

BUSH

09300-22008

$14.82

7

WASHER, 6TH DRIVE This part replaces 08211-22301.

09181-22167

$2.96

8

CIRCLIP

09380-22006

$3.10

9

GEAR, 5TH DRIVE (NT:20) This part replaces 24251-18B00.

24251-18B01

Unavailable

10

WASHER

09167-22013

Unavailable

11

BEARING, RH

09262-22018

$25.60

12

RETAINER

24741-18A00

Unavailable

13

SCREW This part replaces 02112-06128.

02112-06127

$1.84

14

BEARING, LH

09263-17026

$51.10

15

RETAINER

24742-18A00

$4.35

16

SCREW

02112-06087

$1.49

17

DRIVESHAFT

24131-18A01

Unavailable

18

GEAR, 1ST DRIVEN (NT:37) This part replaces 24311-18A01.

24311-18A02

Unavailable

19

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$18.67

20

LOCK WASHER

09167-25016

$3.72

21

SNAP RING

09380-25003

$3.04

22

GEAR, 2ND DRIVEN (NT:29)

24321-18A01

$113.25

23

BUSH

09300-25020

$16.87

24

WASHER

08211-25351

$3.72

25

GEAR, 3RD DRIVEN (NT:26)

24331-18A01

Unavailable

26

LOCK WASHER

09169-25001

$2.70

27

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

28

GEAR, 4TH DRIVEN (NT:21)

24341-18B00

Unavailable

29

GEAR, 5TH DRIVEN (NT:19) This part replaces 24351-18B00.

24351-18B01

Unavailable

30

GEAR, REVERSE DRIVEN (NT:34)

24571-18A02

Unavailable

31

BUSH,REVERSE DRIVEN GEAR

24333-18A00

Unavailable

32

DOG

24581-18A00

Unavailable

33

WASHER

09167-25017

$3.87

34

BEARING, RH

09262-20059

$25.60

35

BEARING, LH

09267-30006

Unavailable

36

SHAFT, REVERSE IDLER

24551-18A00

Unavailable

37

GEAR, REVERSE IDLER (NT:29)

24561-18A02

Unavailable

38

BEARING (20X24X13)

09263-20060

$20.73

39

THRUST WASHER

08211-20301

$2.35

40

PIN This part replaces 06211-04103.

04221-04109

Unavailable

41

PLUG

26442-22A00

Unavailable

42

O RING (D:1.3,ID:9.6)

09280-10001

$2.02

43

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

44

WASHER

09168-06004

$1.49
