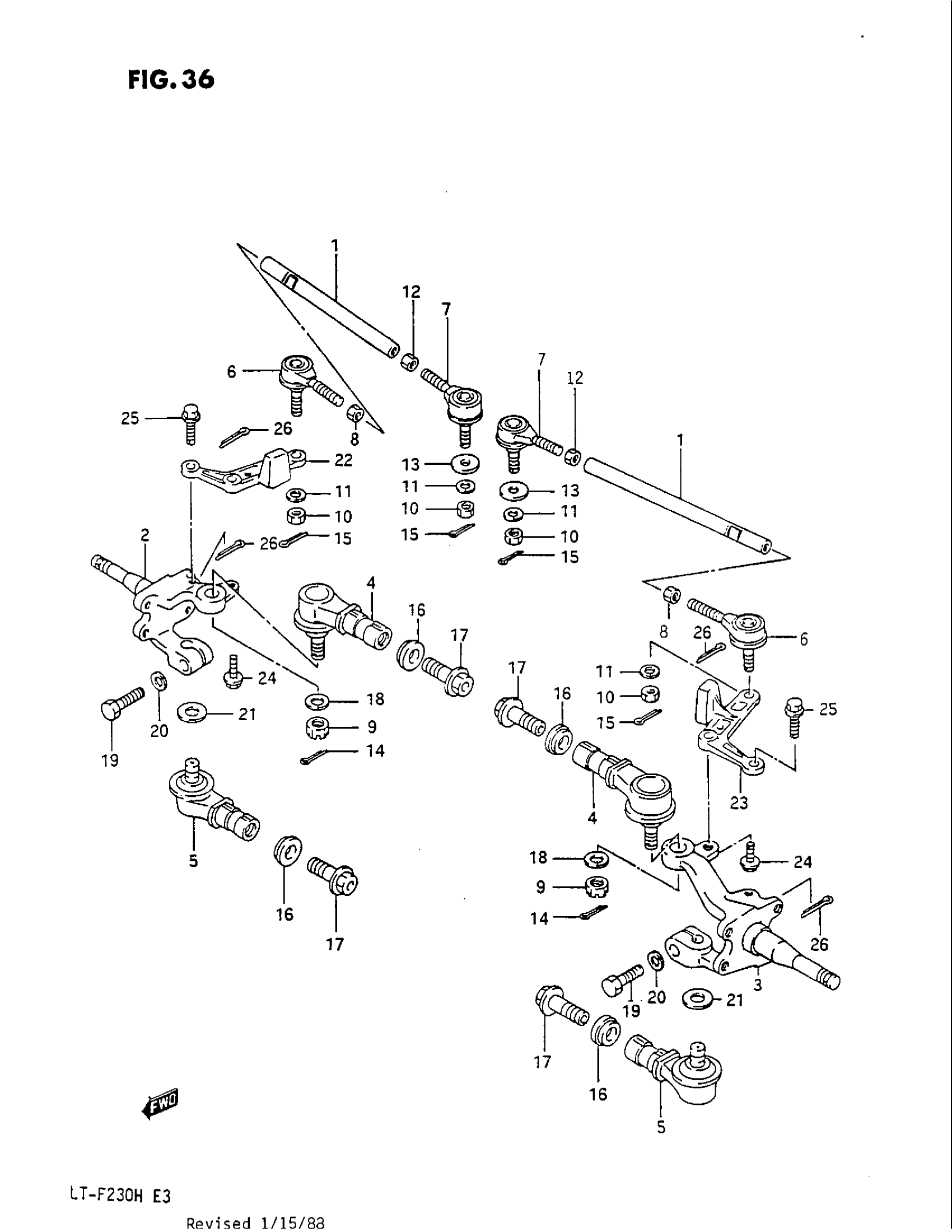

Suzuki LT-F230 (1987) TIE ROD Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-18A00

Unavailable

2

KNUCKLE, STEERING, RH

51231-24502

Unavailable

3

KNUCKLE, STEERING, LH

51241-24502

Unavailable

4

END, KNUCKLE STEERING UPPER This part replaces 51210-24501.

51210-19A01

Unavailable

5

END,KNUCKLE STE This part replaces 51220-24501.

51220-19A03

$106.62

6

ROD, END RH This part replaces 51260-19A00.

51260-38F10

$81.22

7

ROD, END LH This part replaces 51270-19A00.

51270-38F10

$81.22

8

NUT This part replaces 08310-22105.

09140-10043

$2.68

9

NUT This part replaces 08314-41125.

08314-4012A

$2.50

10

NUT This part replaces 09159-10036.

09159-10027

$3.10

11

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

12

NUT, TIE ROD LH

09140-10027

$1.49

13

WASHER This part replaces 09160-10068.

09160-10128-XC0

$2.62

14

PIN This part replaces 04111-30308.

04111-3030A

$1.49

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

16

STOPPER, KNUCKLE END BOLT

52418-24500

$8.83

17

BOLT. KNUCKLE END UPPER (14X38) This part replaces 09103-14006.

09103-14009

$14.73

18

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

$2.10

19

BOLT, KNUCKLE LOWER

09100-10225

$4.02

20

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

21

WASHER, KNUCKLE END This part replaces 09160-14034.

09160-14060

$2.85

22

ARM, KNUCKLE STEERING RH | MODEL G This part replaces 51232-18B00.

51232-18B01

Unavailable

22

ARM, KNUCKLE STEERING RH | MODEL H

51232-18B01

Unavailable

23

ARM, KNUCKLE STEERING LH | MODEL G This part replaces 51242-18B00.

51242-18B01

Unavailable

23

ARM, KNUCKLE STEERING LH | MODEL H

51242-18B01

Unavailable

24

NO DESCRIPTION AVAILABLE This part replaces 09103-08168.

09103-08503-XC0

Unavailable

25

BOLT, ARM KNUCKLE OUTER

09103-08169

Unavailable

26

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
