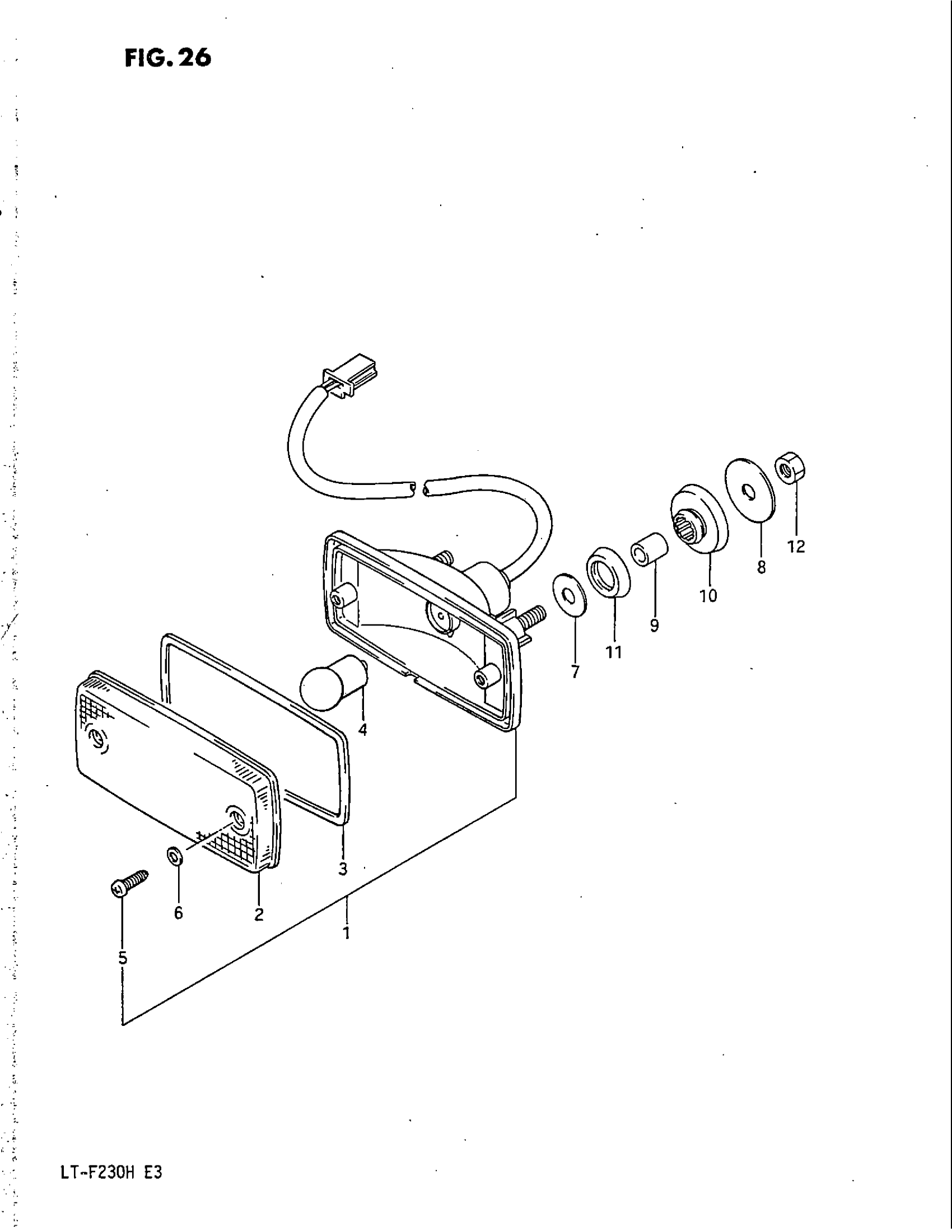

Suzuki LT-F230 (1987) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 6 This part replaces 35710-18A30.

35710-41B02

Unavailable

2

LENS This part replaces 35712-18A30.

35712-18A32

$45.31

3

GASKET

35713-18A30

$9.67

4

BULB (12V,5W)

09471-12058

$2.33

5

SCREW

03212-04169

$1.49

6

GASKET

35627-43010

$2.28

7

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

8

WASHER (6.5X30X1.2)

09160-06071

Unavailable

9

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

$2.63

10

CUSHION

09320-09012

Unavailable

11

CUSHION

09320-14010

Unavailable

12

NUT This part replaces 08310-11066.

08310-0006A

$1.84
