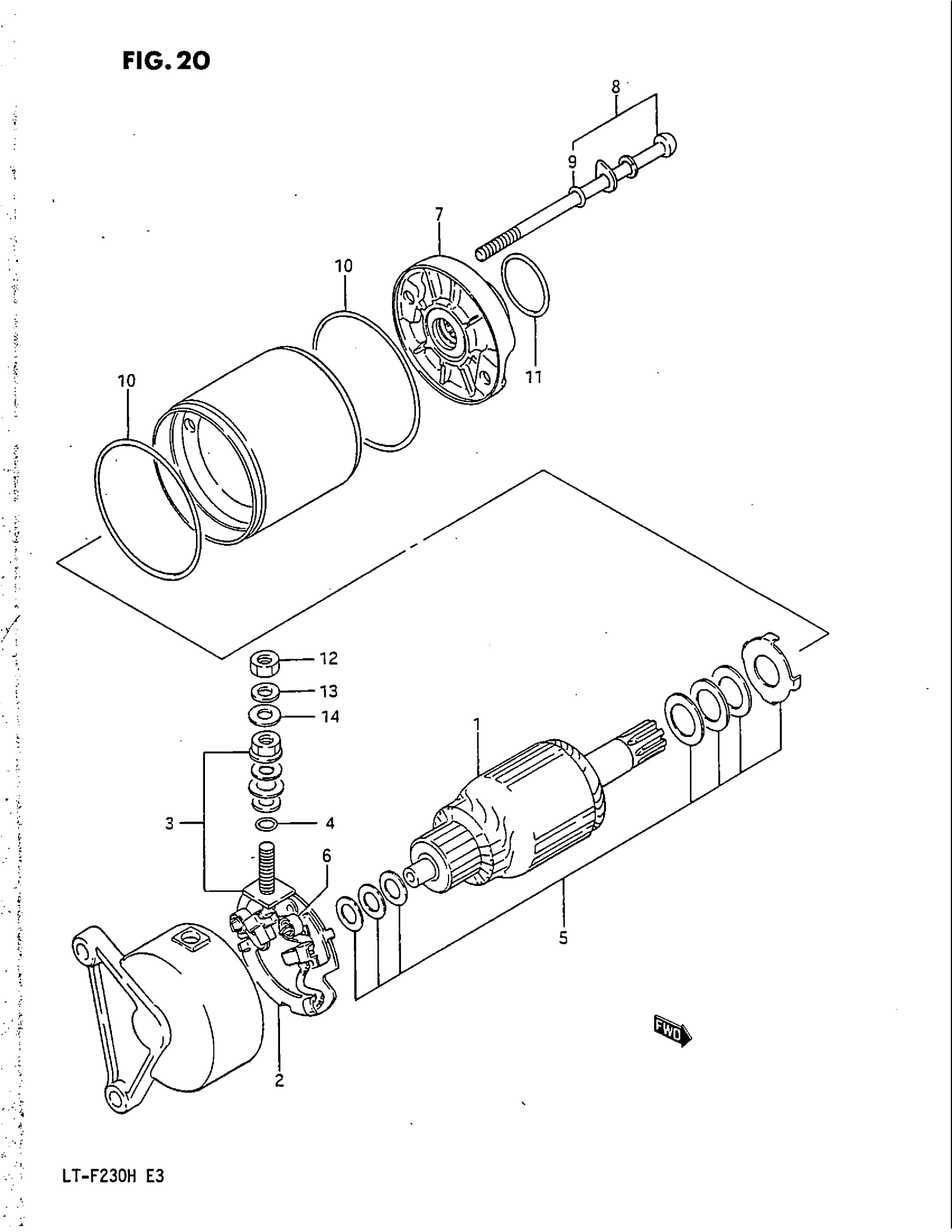

Suzuki LT-F230 (1987) STARTING MOTOR Diagram

#

Description
Price

MOTOR ASSY, STARTING | MODEL G This part replaces 31100-18A00.

31100-35B00

Unavailable

MOTOR ASSY, STARTING | MODEL H; Includes Item(s) 1 - 10

31100-35B00

Unavailable

1

ARMATURE

31311-31300

Unavailable

2

HOLDER SET, BRUSH (-)

31132-31300

Unavailable

3

TERMINAL SET, BRUSH (+)

31130-31300

Unavailable

4

O RING

31143-49040

$3.71

5

SHIM SET

31170-31300

Unavailable

6

SPRING, BRUSH

31135-31300

$4.96

7

BRACKET SET

31150-31300

Unavailable

8

BOLT SET

31280-31300

Unavailable

9

O RING

31143-49040

$3.71

10

O RING This part replaces 31264-31300.

31264-32E00

$6.68

11

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

12

NUT This part replaces 08310-11066.

08310-0006A

$1.84

13

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

14

.WASHER (6.5X16X1) This part replaces 09160-06003.

09160-06129

$2.30
