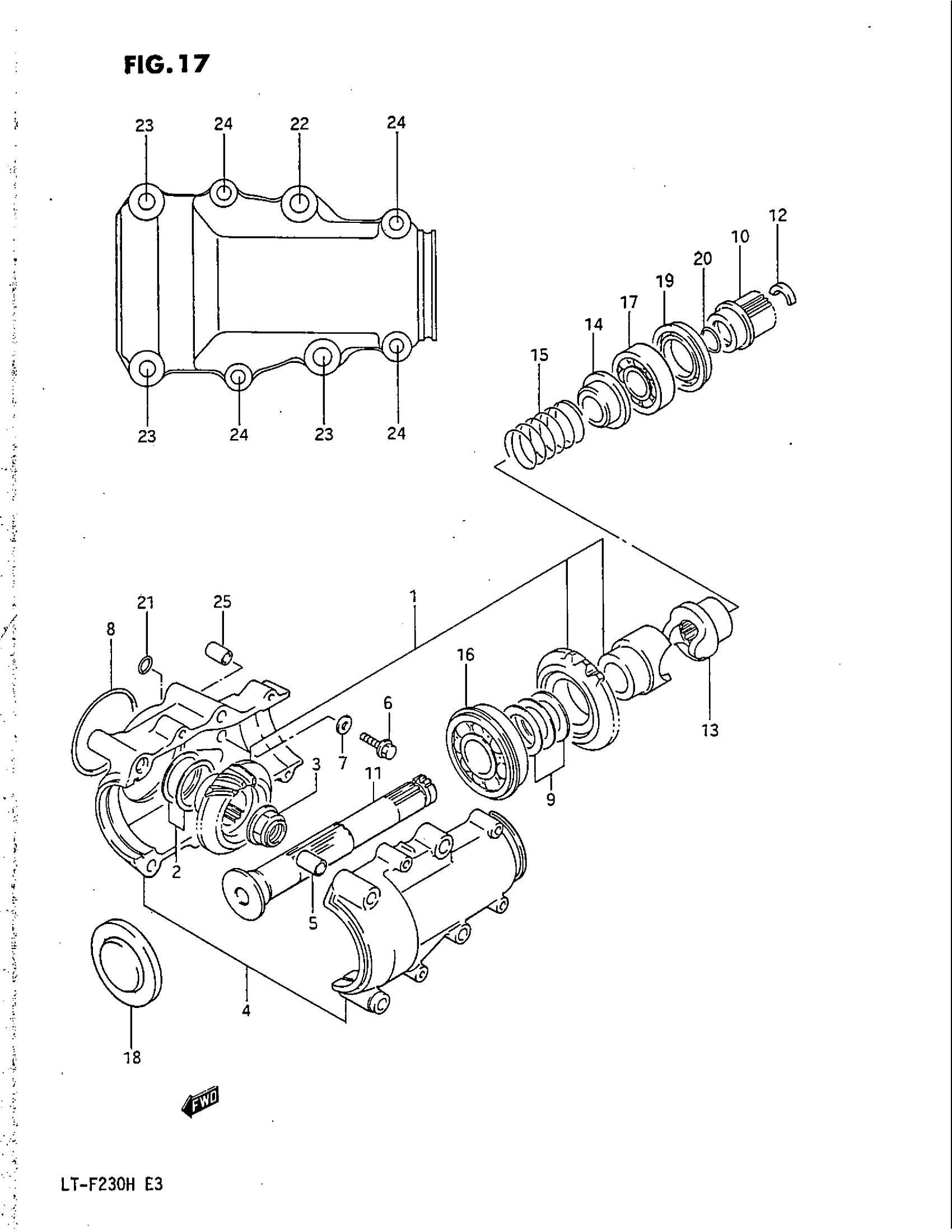

Suzuki LT-F230 (1987) SECONDARY DRIVE GEAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | NT:17/16 This part replaces 24900-18820.

24911-18A00

Unavailable

2

SHIM (T:0.3)

24935-18A00-030

Unavailable

2

SHIM (T:0.35)

24935-18A00-035

Unavailable

2

SHIM (T:0.4)

24935-18A00-040

Unavailable

2

SHIM (T:0.5)

24935-18A00-050

Unavailable

2

SHIM (T:0.6)

24935-18A00-060

Unavailable

3

NUT

09159-16009

Unavailable

4

HOUSING, SECONDARY GEAR | Includes Item(s) 5

24900-18A00

Unavailable

5

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

6

..BOLT This part replaces 01547-06206.

01547-0620B

$2.45

7

GASKET

09168-06023

$2.35

8

O RING (D:2.5,ID:71.9)

09280-70009

$4.64

9

SHIM (T:0.90)

24935-44500

Unavailable

9

SHIM (T:0.95)

24935-44510

Unavailable

9

SHIM (T:1.00)

24935-44520

Unavailable

9

SHIM (T:1.10)

24935-44530

Unavailable

9

SHIM (T:1.15)

24935-44540

Unavailable

10

COUPLING, SECONDARY DRIVEN

24943-18B00

Unavailable

11

SHAFT, SECONDARY DRIVEN

24961-18A00

Unavailable

12

STOPPER

22541-45100

Unavailable

13

DOG, OUTPUT CAM

24923-18A00

Unavailable

14

STOPPER, SPRING

24924-18A00

Unavailable

15

SPRING

09440-43001

Unavailable

16

BEARING, FRONT

09262-25075

Unavailable

17

BEARING, DRIVE SHAFT LH This part replaces 09262-20062.

09262-20069

$23.28

18

PLUG

09241-62002

Unavailable

19

OIL SEAL

09283-28018

Unavailable

20

O RING (D:2.4,ID:19)

09280-19005

$2.33

21

O RING (D:1.9,ID:14.5)

09280-15006

$2.90

22

BOLT This part replaces 01517-08855.

01550-0885B

Unavailable

23

BOLT This part replaces 01517-08955.

01550-0895A

$4.60

24

BOLT This part replaces 01517-06354.

01550-0635A

$2.32

25

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30
