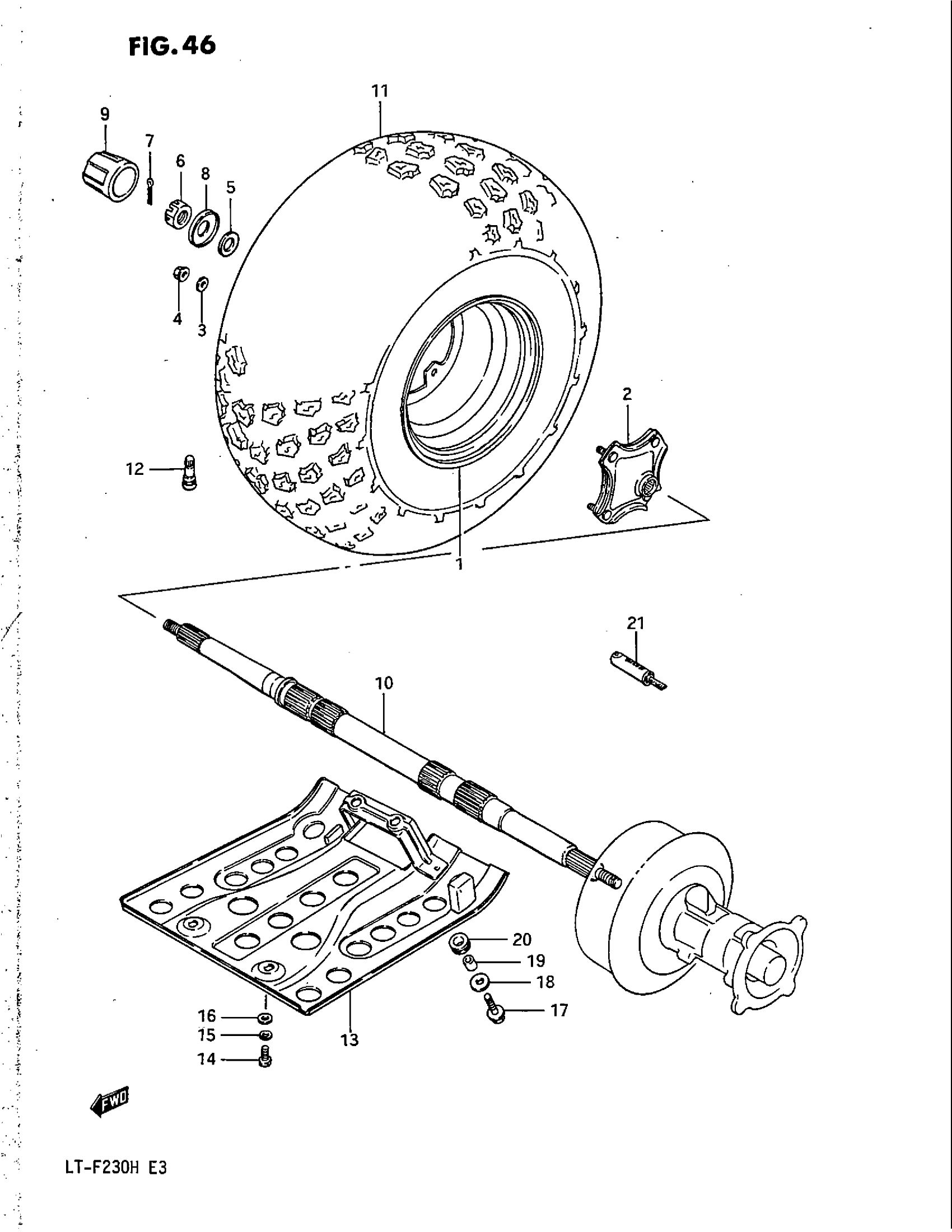

Suzuki LT-F230 (1987) RIGHT REAR WHEEL - UNDER GUARD Diagram

#

Description
Price

1

RIM, REAR WHEEL (SILVER) | MODEL G This part replaces 65310-24510-19T.

65310-24510-13L

Unavailable

1

RIM, REAR WHEEL (SILVER) | MODEL H

65310-24510-13L

Unavailable

2

HUB, REAR

64110-24403

Unavailable

3

WASHER, KNUCKLE END This part replaces 08322-21106.

08322-0110A

$1.84

4

NUT This part replaces 08316-16106.

08316-1010B

$2.66

5

WASHER

09164-18004

$3.76

6

NUT, HUB This part replaces 09141-18004.

09141-18008

$8.37

7

PIN, COTTER This part replaces 04111-40356.

04111-4040A

$1.49

8

HOLDER, CENTER CAP This part replaces 64726-18A00.

64726-19B00

$3.31

9

CAP

54725-18A00

$10.28

10

AXLE, REAR

64711-18B00

Unavailable

11

TIRE (25X12.00-9) | DUNLOP

65100-18B55

Unavailable

12

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

13

GUARD, UNDER

61390-18B00

Unavailable

14

BOLT This part replaces 01107-08126.

01500-0812A

$2.28

15

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

16

WASHER This part replaces 08322-11086.

08322-0108A

$1.92

17

BOLT This part replaces 01517-06206.

01550-0620A

$1.97

18

WASHER

09160-06019

$1.49

19

SPACER

09180-06038

$1.98

20

CUSHION

09320-09002

$1.98

21

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A00.

96200-18A02

$58.92
