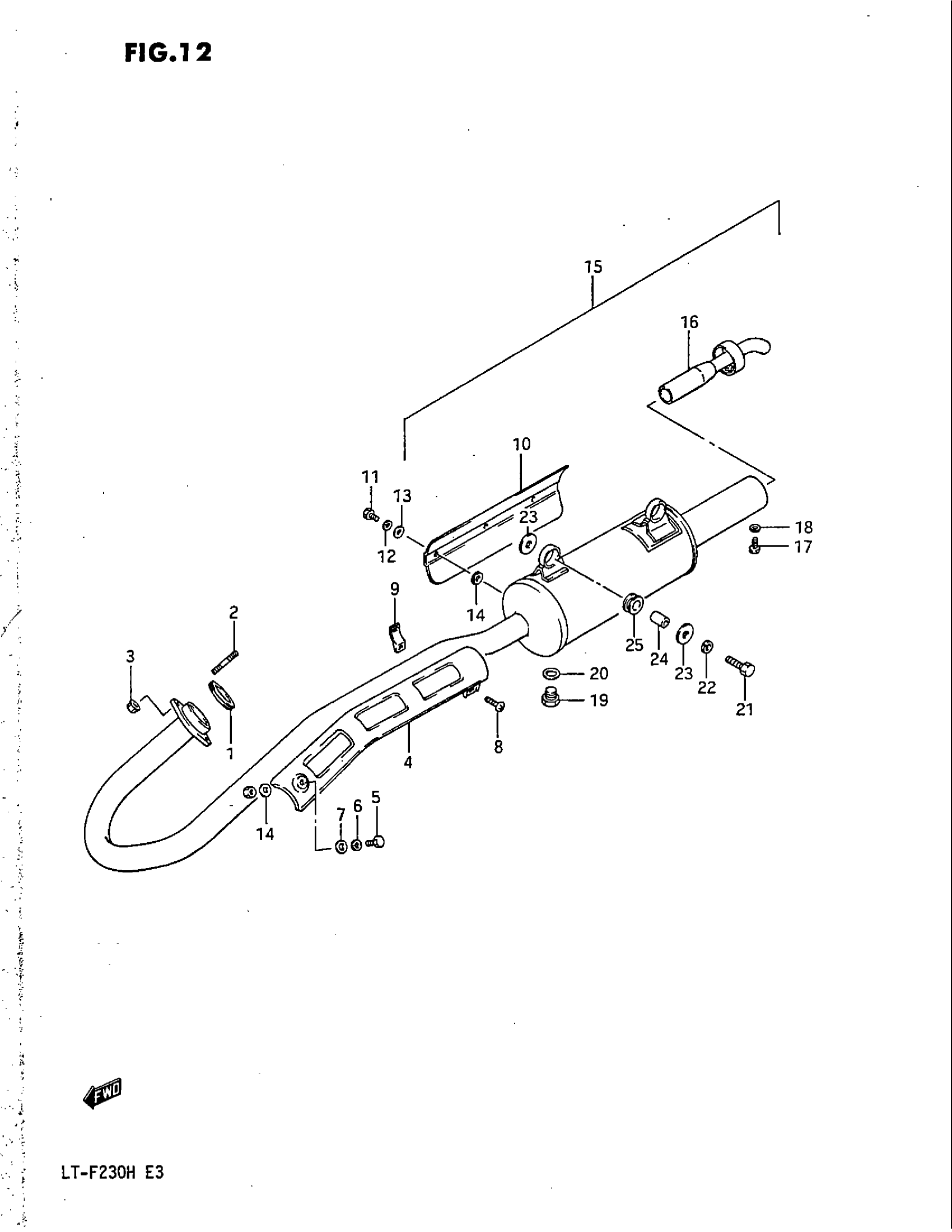

Suzuki LT-F230 (1987) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-12010.

14181-42A00

$10.93

2

STUD BOLT This part replaces 01421-08205.

01421-0820A

$1.91

3

NUT This part replaces 08361-15085.

08361-1508A

$2.02

4

COVER, EXHAUST PIPE

14180-18A00

Unavailable

5

BOLT This part replaces 01107-06104.

01500-0610B

$1.81

6

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

7

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

8

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

9

CLAMP

14185-18A01

Unavailable

10

PLATE, HEAT GUARD

14781-18A00

Unavailable

11

BOLT This part replaces 01107-06108.

01500-06107

$2.06

12

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

13

WASHER This part replaces 08322-21067.

08322-01067

$2.13

14

GASKET, MUFFLER COVER This part replaces 09168-06020.

09168-06120

$2.92

15

MUFFLER ASSY | Includes Item(s) 16 - 20

14301-18A02

Unavailable

16

TUBE, CLEAN OUT This part replaces 14850-18A01.

14850-18A02

Unavailable

17

BOLT This part replaces 01107-06104.

01500-0610B

$1.81

18

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

19

PLUG

09247-12103

$2.84

20

GASKET

09168-12002

$1.59

21

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

24

SPACER (8.5X12X18.5) This part replaces 09180-08127.

09180-08195

$3.87

25

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.98
