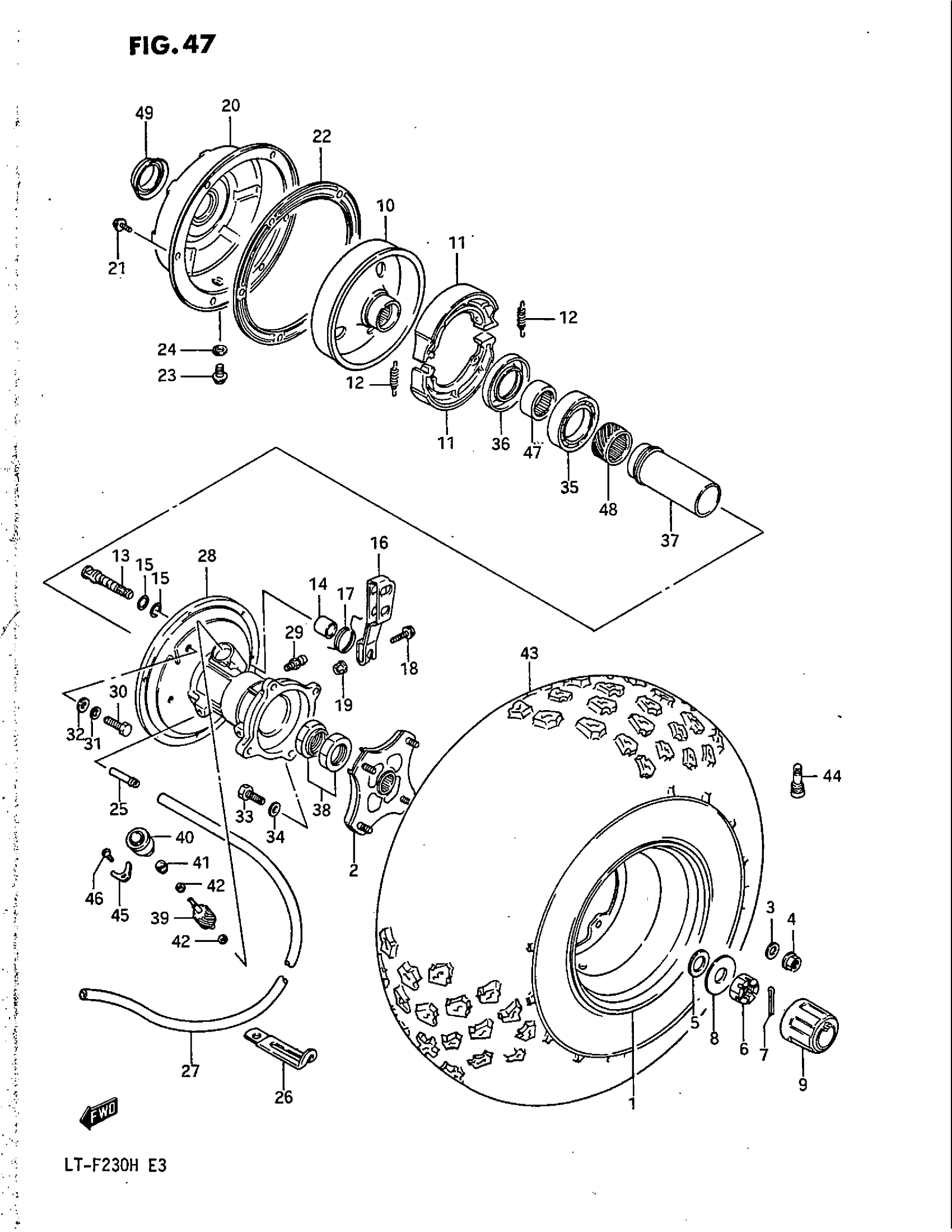

Suzuki LT-F230 (1987) LEFT REAR WHEEL Diagram

#

Description
Price

1

RIM, REAR WHEEL (SILVER) | MODEL G This part replaces 65310-24510-19T.

65310-24510-13L

Unavailable

1

RIM, REAR WHEEL (SILVER) | MODEL H

65310-24510-13L

Unavailable

2

HUB, REAR

64110-24403

Unavailable

3

WASHER, KNUCKLE END This part replaces 08322-21106.

08322-0110A

$1.83

4

NUT This part replaces 08316-16106.

08316-1010B

$2.65

5

WASHER

09164-18004

$3.38

6

NUT, HUB This part replaces 09141-18004.

09141-18008

$7.67

7

PIN, COTTER This part replaces 04111-40356.

04111-4040A

$1.37

8

HOLDER, CENTER CAP This part replaces 64726-18A00.

64726-19B00

$3.12

9

CAP

54725-18A00

$9.41

10

DRUM, BRAKE

64120-24401

$309.67

11

SHOE SET, REAR BRAKE This part replaces 54410-32400.

64400-02830

$60.12

12

SPRING

55420-30000

$4.22

13

CAM, BRAKE

64440-18A00

Unavailable

14

SPACER

09180-16033

Unavailable

15

O RING

64443-18A00

$1.87

16

LEVER, CAM

64451-18A00

Unavailable

17

SPRING

09448-32016

Unavailable

18

BOLT This part replaces 01517-06306.

01550-0630A

$2.31

19

NUT This part replaces 08316-16066.

08316-1006B

$2.50

20

COVER, DRUM

64130-18B00

Unavailable

21

BOLT This part replaces 01517-06106.

01550-0610A

$1.97

22

PACKING

64125-18A00

Unavailable

23

PLUG, DRAIN

09247-10001

$2.06

24

WASHER

09161-10007

$1.55

25

PLUG, BREATHER

09364-08003

$3.42

26

CLAMP

09407-14403

$2.24

27

HOSE, 7X12, 1X2 This part replaces 09343-07160.

09352-70121-00B

$35.75

28

HOUSING

64720-18B00

Unavailable

29

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.28

30

BOLT, HOUSING

09100-10229

Unavailable

31

LOCK WASHER This part replaces 08321-31106.

08321-0110A

$1.86

32

WASHER, KNUCKLE END This part replaces 08322-11106.

08322-0110A

$1.83

33

BOLT This part replaces 01107-08258.

01500-08257

$2.53

34

WASHER This part replaces 08322-11088.

08322-01087

$1.86

35

BEARING, AXLE

08113-60097

$71.02

36

DUST SEAL, BEARING

09283-42012

Unavailable

37

SPACER, BEARING

64730-18B00

Unavailable

38

NUT, AXLE

09159-32002

$45.80

39

BEAR, PINION (NT:13)

54620-18B00

Unavailable

40

BUSH

54632-24500

Unavailable

41

OIL SEAL

09289-06001

$5.85

42

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$2.17

43

TIRE, T/L REAR (25X12.00-9) | DUNLOP

65100-18B55

Unavailable

44

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$8.71

45

PLATE, PINION

54623-24500

Unavailable

46

SCREW This part replaces 02112-05088.

02112-05087

$1.45

47

SPACER, AXLE

64741-18A00

Unavailable

48

GEAR, SPEEDOMETER (NT:33)

54611-18B00

Unavailable

49

SEAL, DRUM COVER OUTER

64135-18B00

Unavailable
