1987 Suzuki LT-F230 Front Wheel Diagram

← All diagrams

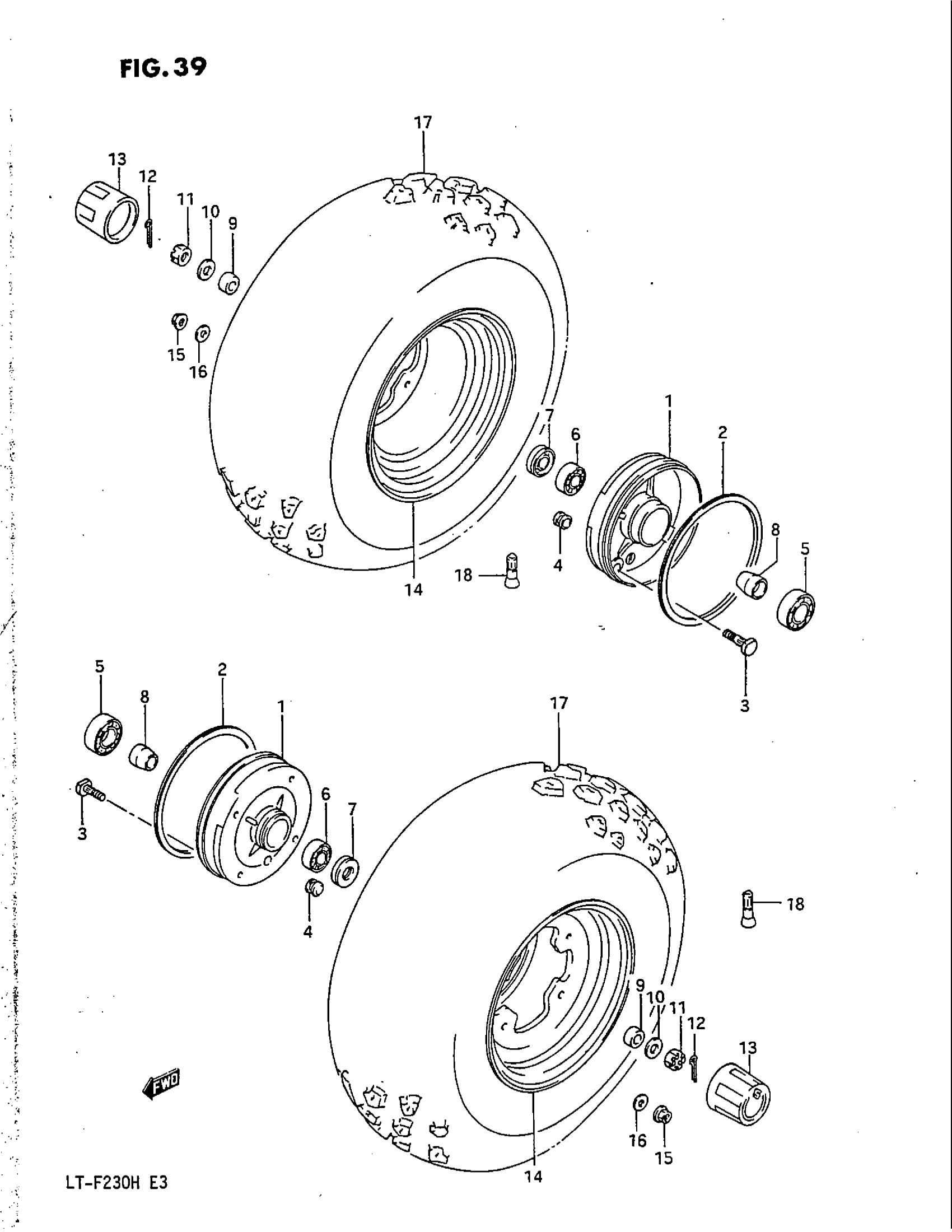

Find the part on the Front Wheel diagram for your 1987 Suzuki LT-F230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki LT-F230 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT | MODEL G This part replaces 54110-18A01.

54110-24505

2
Out of stock

1

HUB, FRONT | MODEL H This part replaces 54110-18A02.

54110-24505

2
Out of stock

2

DUST SEAL, DRUM BRAKE

54124-18A00

2
Out of stock

3

BOLT, FRONT HUB | MODEL G This part replaces 09119-08060.

09119-08067

8
Out of stock

3

BOLT, FRONT HUB (SILVER) | MODEL H

09119-08067

8
Out of stock

4

PLUG, BRAKE HOLE

09250-13002

2
Out of stock

5

BEARING, INNER

08120-62047

2

$31.12

In stock

6

BEARING, FRONT HUB OUTER This part replaces 08120-62027.

09262-15024

2
Out of stock

7

DUST SEAL, OUTER

09284-21001

2
Out of stock

8

SPACER, FRONT HUB

54731-24501

2
Out of stock

9

SPACER, FRONT AXLE

09180-15068

2
Out of stock

10

WASHER This part replaces 08322-11146.

08322-0114A

2
Out of stock

11

NUT, HUB This part replaces 08314-41146.

08314-4014B

2
Out of stock

12

PIN This part replaces 04111-30308.

04111-3030A

2
Out of stock

13

CAP, WHEEL, CENTER

54725-18A00

2
Out of stock

14

RIM, FRONT WHEEL (SILVER) | MODEL G This part replaces 55310-18A00-19T.

55310-41B00-13L

2
Out of stock

14

RIM, FRONT WHEEL (SILVER) | MODEL H This part replaces 55310-18A00-13L.

55310-41B00-13L

2
Out of stock

15

NUT (CHROME) This part replaces 08316-16086.

08316-10087

8
Out of stock

16

WASHER This part replaces 08322-21086.

08322-0108A

8
Out of stock

17

TIRE, T/L FRONT (21X8.00-9) | DUNLOP

55100-18B55

2
Out of stock

18

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

2
Out of stock
