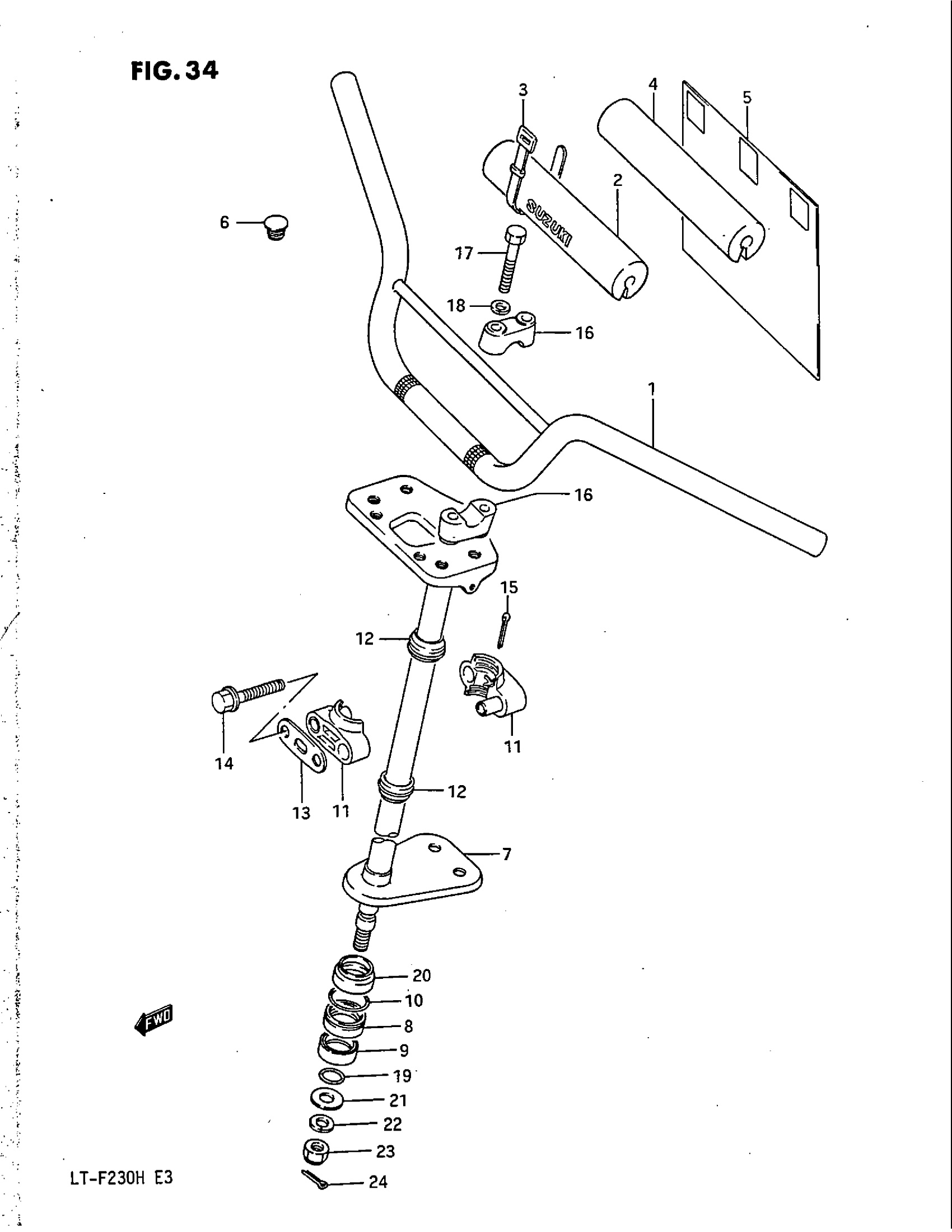

Suzuki LT-F230 (1987) HANDLEBAR - STEERING Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56110-18B00-291

Unavailable

2

PAD, CROSS | MODEL G This part replaces 56172-03401.

56172-24500

$16.35

3

BAND | MODEL G

09407-18401

$2.07

4

PAD, CROSS | MODEL H This part replaces 56172-24510.

56172-24500

$16.35

5

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 56180-24500-58P.

56180-03420-4UZ

Unavailable

6

CAP This part replaces 09250-09001.

09250-09008

$1.54

7

SHAFT, STEERING (BLACK)

51650-18B00-019

Unavailable

8

DUST SEAL, STEERING SHAFT

51662-18900

$7.36

9

DUST SEAL, STEERING LOWER

51663-24401

Unavailable

10

CLIP, DUST SEAL

09380-31002

$2.43

11

HOLDER,STEERING SHAFT | MODEL G This part replaces 51670-18901.

51670-18902

$18.02

11

HOLDER,STEERING SHAFT | MODEL H

51670-18902

$18.02

12

DUST SEAL, STEERING

51678-18900

$8.12

13

REINFORCEMENT

51681-18A00

Unavailable

14

BOLT

09103-08085

$6.91

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

16

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

$17.90

17

BOLT This part replaces 01204-08555.

01204-08557

$2.85

18

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

19

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

20

DUST SEAL, LOWER OUTER

51664-18B00

Unavailable

21

WASHER This part replaces 09160-10068.

09160-10128-XC0

$2.62

22

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

23

NUT This part replaces 09159-10036.

09159-10027

$3.10

24

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
