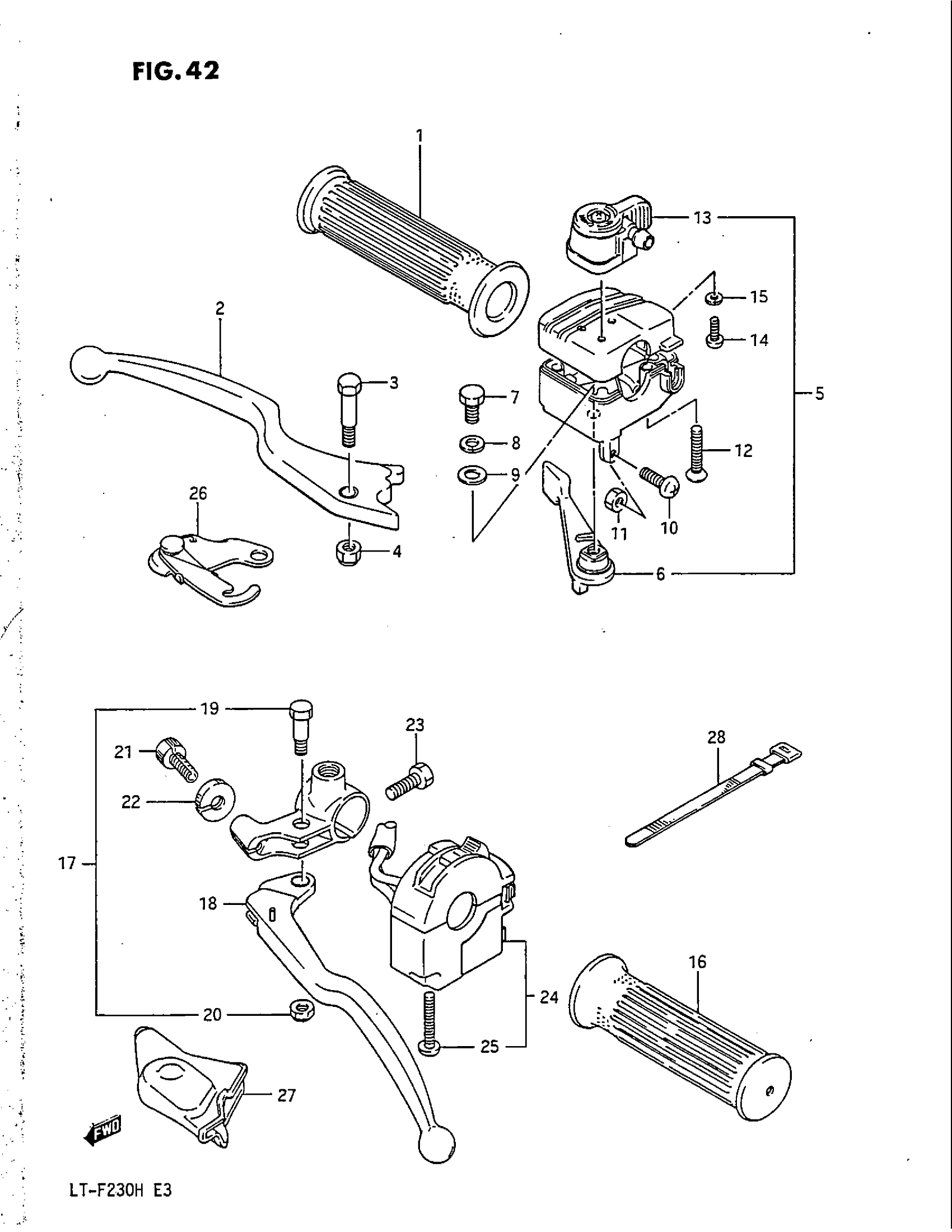

Suzuki LT-F230 (1987) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP

57211-24201

Unavailable

2

LEVER, BRAKE This part replaces 57420-05A00.

57420-49101

$34.15

3

BOLT

57431-05A00

$7.23

4

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

5

NO DESCRIPTION AVAILABLE | Includes Item(s) 6 - 15 This part replaces 57100-18B00.

57100-18B11

Unavailable

6

LEVER

57151-24301

$12.95

7

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

8

LOCK WASHER This part replaces 08321-31066.

08321-0106A

$1.84

9

WASHER

09160-06019

$1.49

10

.SCREW (5X25) This part replaces 02112-05254.

09125-05066

$1.65

11

.NUT This part replaces 08310-21055.

09140-05006

$2.19

12

SCREW This part replaces 02132-05305.

02132-0530B

Unavailable

13

CHOKE ASSY

58700-18B00

Unavailable

14

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

15

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

16

GRIP

57211-24201

Unavailable

17

LEVER ASSY, REAR BRAKE | Includes Item(s) 18 - 23 This part replaces 57500-24501.

57500-24502

Unavailable

18

LEVER This part replaces 57620-24500.

57620-24501

Unavailable

19

BOLT

57431-29502

$7.67

20

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

21

ADJUSTER

57441-44400

$6.28

22

NUT This part replaces 57442-44400.

57442-11010

$2.79

23

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

24

SWITCH ASSY, LH | MODEL G This part replaces 37400-24501.

37400-24502

Unavailable

24

SWITCH ASSY, LH | MODEL H; Includes Item(s) 25

37400-24502

Unavailable

25

SCREW

02112-05357

$1.49

26

STOPPER, BRAKE

57790-18900

Unavailable

27

COVER, BRAKE DUST This part replaces 57541-29500.

57541-29501

$10.23

28

BAND

09407-12402

$3.04
