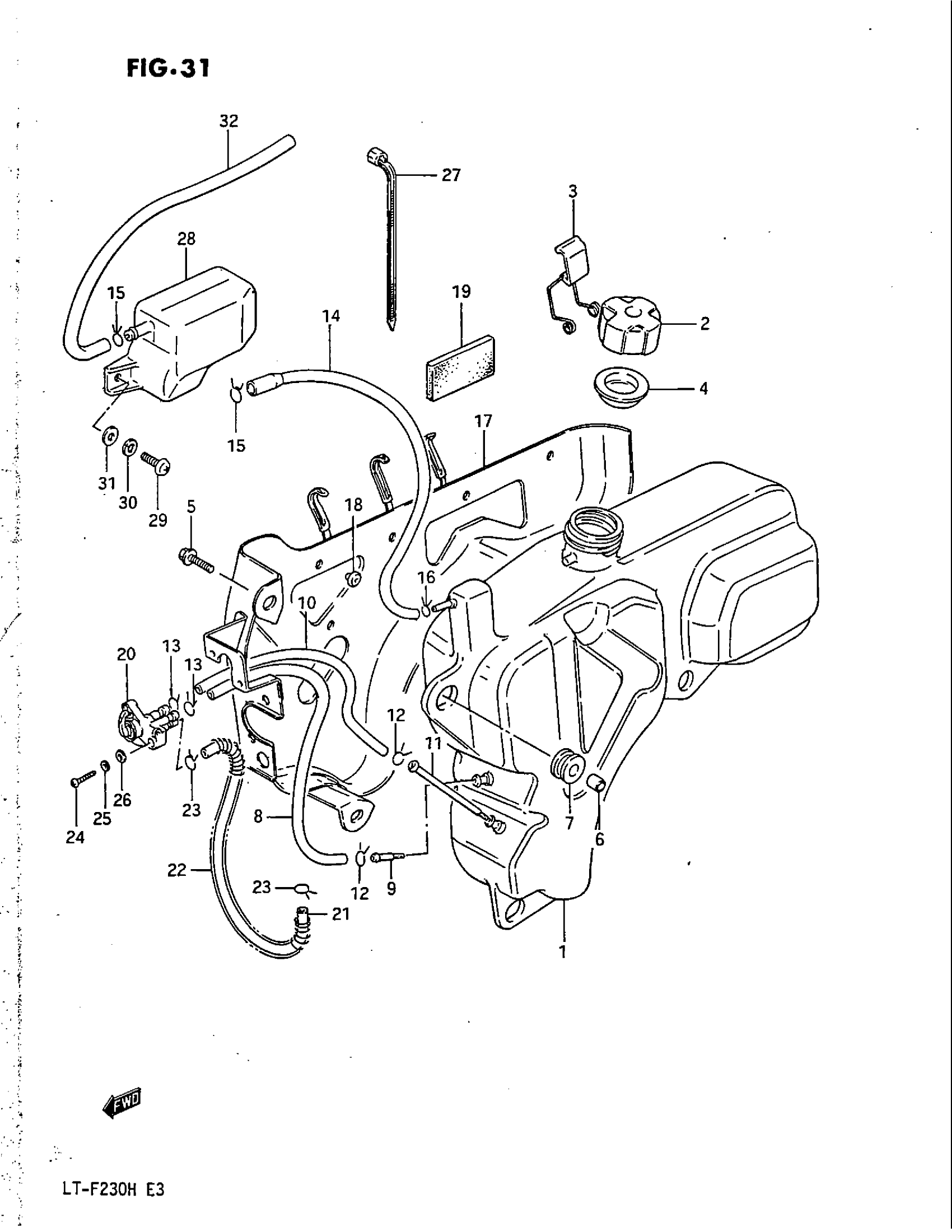

Suzuki LT-F230 (1987) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

44111-18A00

Unavailable

2

CAP, FUEL TANK

44211-24400

Unavailable

3

SPRING

44240-18B00

Unavailable

4

GASKET This part replaces 44248-40400.

44248-05211

$3.53

5

BOLT This part replaces 01924-08306.

01500-0830B

$4.03

6

SPACER This part replaces 09180-08120.

09180-08209

$2.80

7

CUSHION

09320-12016

$2.57

8

HOSE, CANISTER & PURGE | MODEL G This part replaces 09343-05367.

09359-54111-600

$28.05

8

HOSE, CANISTER & PURGE | MODEL H This part replaces 09343-05370.

09359-54111-600

$28.05

9

FILTER, FUEL, "ON"

44322-27001

$4.75

10

HOSE, CANISTER & PURGE | MODEL G This part replaces 09343-05368.

09359-54111-600

$28.05

10

HOSE, CANISTER & PURGE | MODEL H This part replaces 09343-05370.

09359-54111-600

$28.05

11

FILTER, FUEL, "RES"

44323-24400

Unavailable

12

CLIP

09401-12404

$2.37

13

CLIP (ID:10.5,H:8)

09401-10409

$2.28

14

HOSE, BREATHER NO.1

44124-18A00

Unavailable

15

CLIP

09401-10301

Unavailable

16

CLIP

09401-08402

$1.38

17

GUARD, FUEL TANK

44570-18A01

Unavailable

18

CUSHION

09321-06016

Unavailable

19

CUSHION

44518-09300

Unavailable

20

COCK ASSY,FUEL This part replaces 44300-18B00.

44300-17271

Unavailable

21

HOSE | MODEL G This part replaces 09343-05271.

09352-50005-00B

$12.58

21

HOSE | MODEL H This part replaces 09343-05165.

09352-50005-00B

$12.58

22

SPRING

09440-10012

Unavailable

23

CLIP

09401-08402

$1.38

24

SCREW This part replaces 02112-05208.

02112-05207

$1.97

25

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.83

26

WASHER This part replaces 08322-21057.

08322-01057

$1.86

27

CLAMP | MODEL G This part replaces 09404-06413.

09404-06039

$1.73

27

CLAMP | MODEL H This part replaces 09404-06403.

09404-06039

$1.73

28

SEPARATOR, FUEL

89411-81100

Unavailable

29

BOLT This part replaces 01107-06166.

01500-0616A

$1.77

30

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

31

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24

32

HOSE(7X11X2000) | MODEL G This part replaces 09343-07089.

09352-70119-00B

$32.52

32

HOSE(7X11X2000) | MODEL H This part replaces 09343-07093.

09352-70119-00B

$32.52
