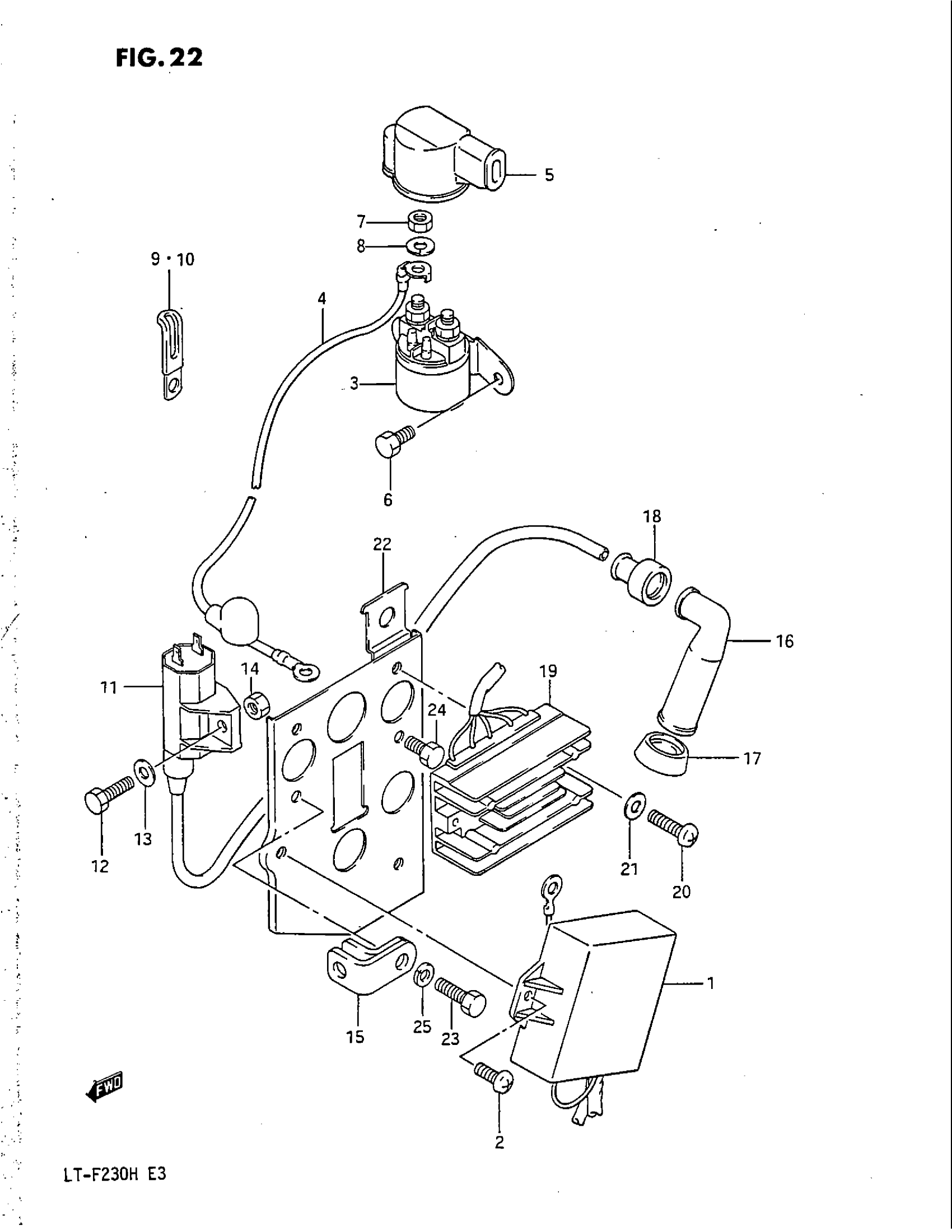

Suzuki LT-F230 (1987) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT

32900-18A00

Unavailable

2

SCREW This part replaces 02152-06126.

02112-1612B

$3.03

3

RELAY, STARTING MOTOR

31800-49100

$97.31

4

LEAD WIRE, STARTING MOTOR This part replaces 33850-18A00.

33850-19B00

$40.33

5

CAP, TERMINAL This part replaces 31861-44500.

31861-46D00

$7.87

6

SCREW

09128-06013

$1.49

7

NUT This part replaces 08310-11066.

08310-0006A

$1.84

8

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

9

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

10

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74

11

UNIT & COIL ASSY, IGNITION This part replaces 33410-18A00.

33410-22AV0

$116.00

12

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

$1.78

13

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

14

NUT This part replaces 08310-11066.

08310-0006A

$1.84

15

PLATE, COIL

47421-18A00

Unavailable

16

CAP, SPARK PLUG

33510-43010

$24.99

17

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

18

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

19

RECTIFIER ASSY This part replaces 32800-49430.

32800-43X51

Unavailable

20

SCREW This part replaces 02112-06206.

02112-0620A

$1.49

21

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

22

HOLDER, ELECTRIC PARTS

47410-18A00

Unavailable

23

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

24

BOLT This part replaces 01107-06127.

01500-06127

$1.97

25

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13
