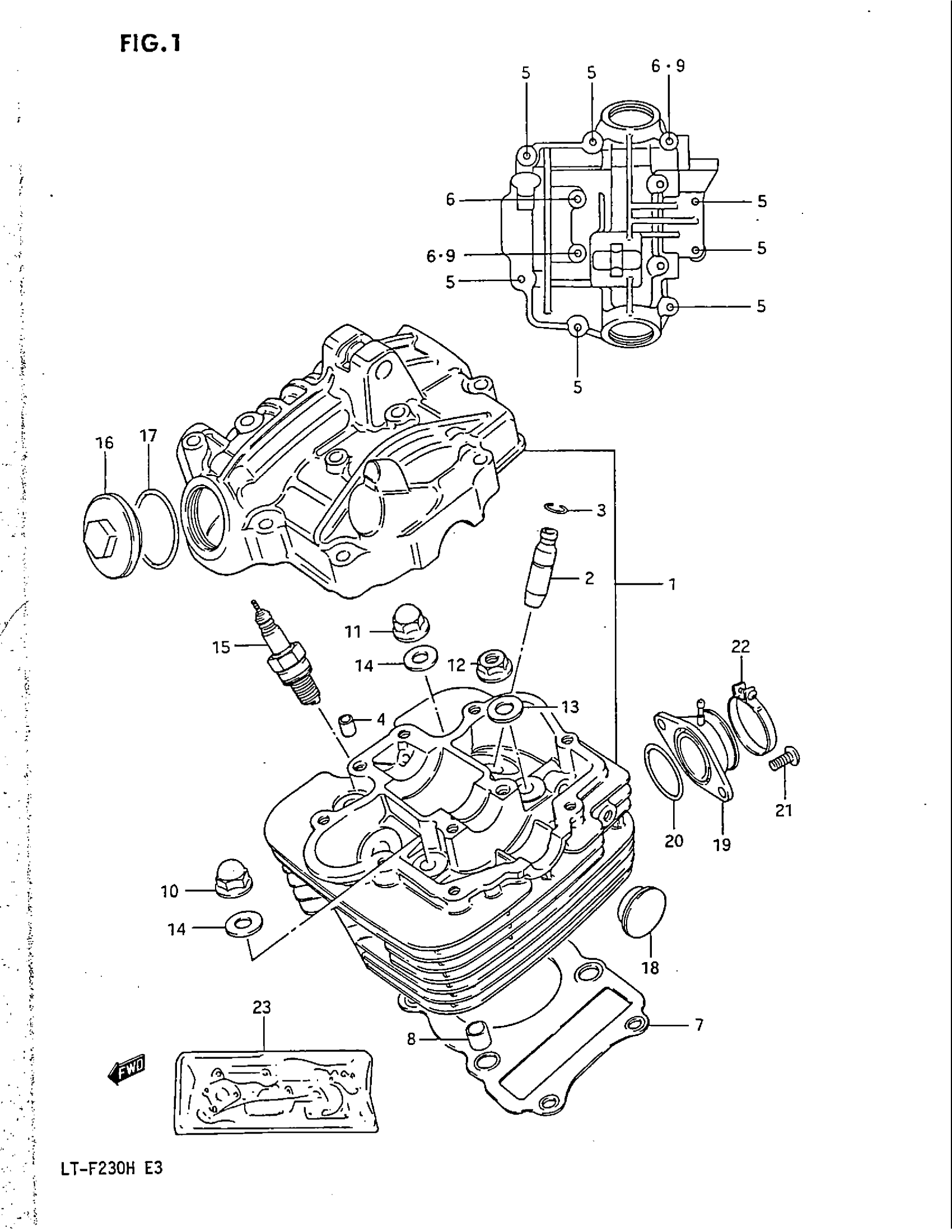

Suzuki LT-F230 (1987) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-18A01.

11100-18A02

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$32.10

3

.RING (10X85)

09381-10004

$1.50

4

PIN

09206-08001

$1.78

5

BOLT This part replaces 01517-06358.

01550-06357

$2.77

6

BOLT This part replaces 01517-06608.

01550-06607

$4.17

7

GASKET, CYLINDER HEAD

11141-18A00

$14.20

8

PIN

04211-11169

$1.78

9

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

10

NUT This part replaces 09159-08047.

09159-08049

$4.71

11

NUT

09159-08049

$4.71

12

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

13

WASHER

09160-08039

$2.03

14

GASKET This part replaces 09168-08012.

09168-08013

$2.92

15

SPARK PLUG (NGK,DR7EA) This part replaces 09482-00182.

09482-00398

$3.03

15

SPARK PLUG (DENSO,X22ESR-U) This part replaces 09482-00183.

09482-00222

$5.36

16

CAP INSPECTION This part replaces 11175-37111.

11175-18920

$12.20

17

.O RING (D:3,ID:29.5)

09280-30001

$1.72

18

PLUG, HEAD

09241-22002

$5.24

19

PIPE, INTAKE

13110-18A02

Unavailable

20

O RING

09280-34004

$4.18

21

SCREW This part replaces 02152-06205.

02112-0620A

$1.49

22

CLAMP

09402-46208

$4.64

23

GASKET SET | OPT This part replaces 11400-18870.

11400-18867

Unavailable
