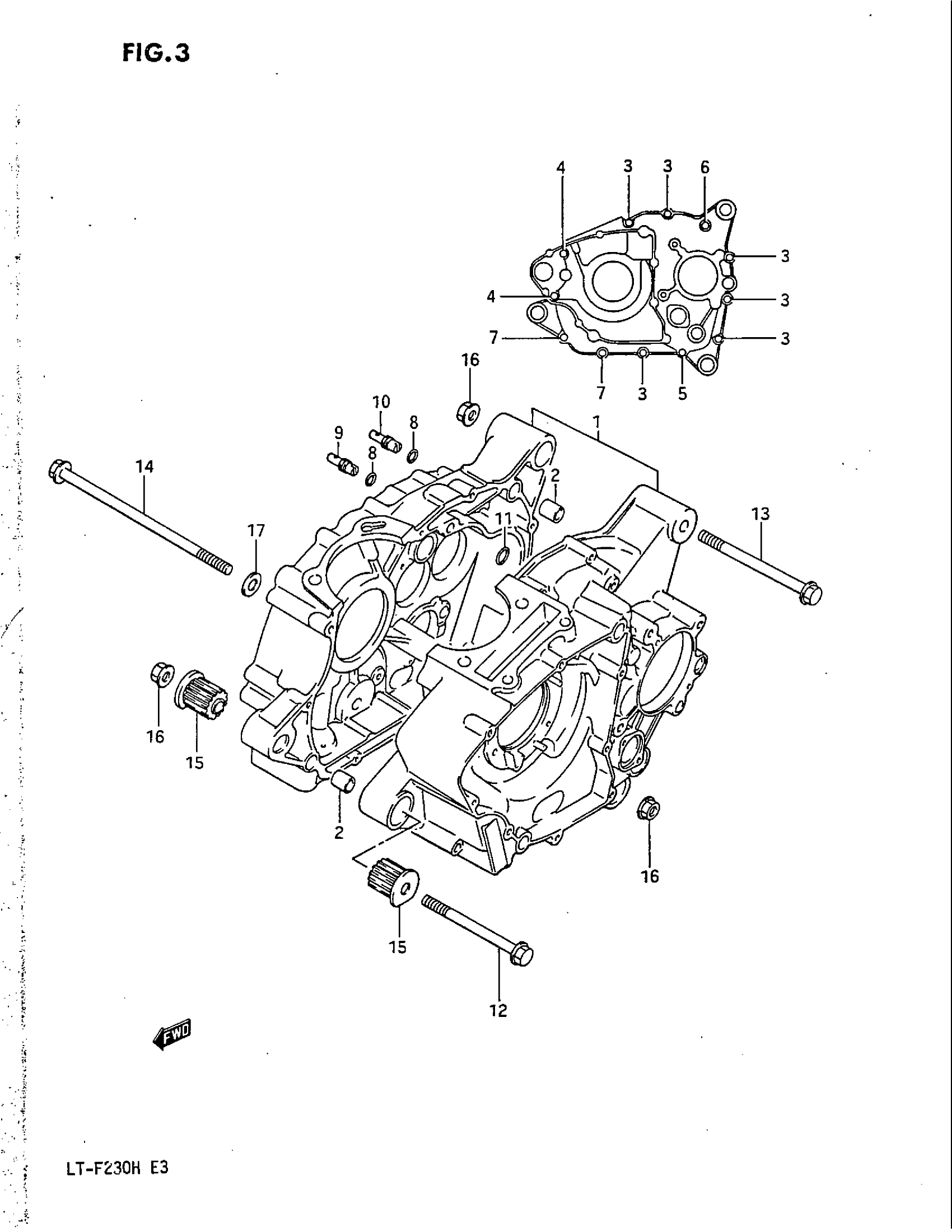

Suzuki LT-F230 (1987) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 11

11301-18841

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT This part replaces 01547-06408.

01547-06407

$2.32

4

BOLT This part replaces 01547-06508.

01547-06507

$2.41

5

BOLT This part replaces 01547-06608.

01547-06607

$3.18

6

BOLT,CARB This part replaces 01547-06757.

09103-06522

$2.95

7

BOLT

01547-06857

$3.30

8

O RING, OIL GALLERY JET

09280-04004

$1.91

9

JET, OIL GALLERY

09493-28010

$16.57

10

JET, OIL GALLERY

09493-32006

$16.87

11

O RING (D:1.9,ID:9.8) This part replaces 09280-10010.

09280-10016

$3.37

12

BOLT (10X90)

09103-10061

$6.43

13

BOLT (10X125) This part replaces 09103-10062.

09103-10141

$8.43

14

BOLT (10X208)

09103-10152

Unavailable

15

BUSH

09319-10052

Unavailable

16

NUT, REAR SWGARM BRACKET This part replaces 09159-10044.

09159-10115

$3.55

17

WASHER

09160-10100

Unavailable
