1987 Suzuki LT-F230 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1987 Suzuki LT-F230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

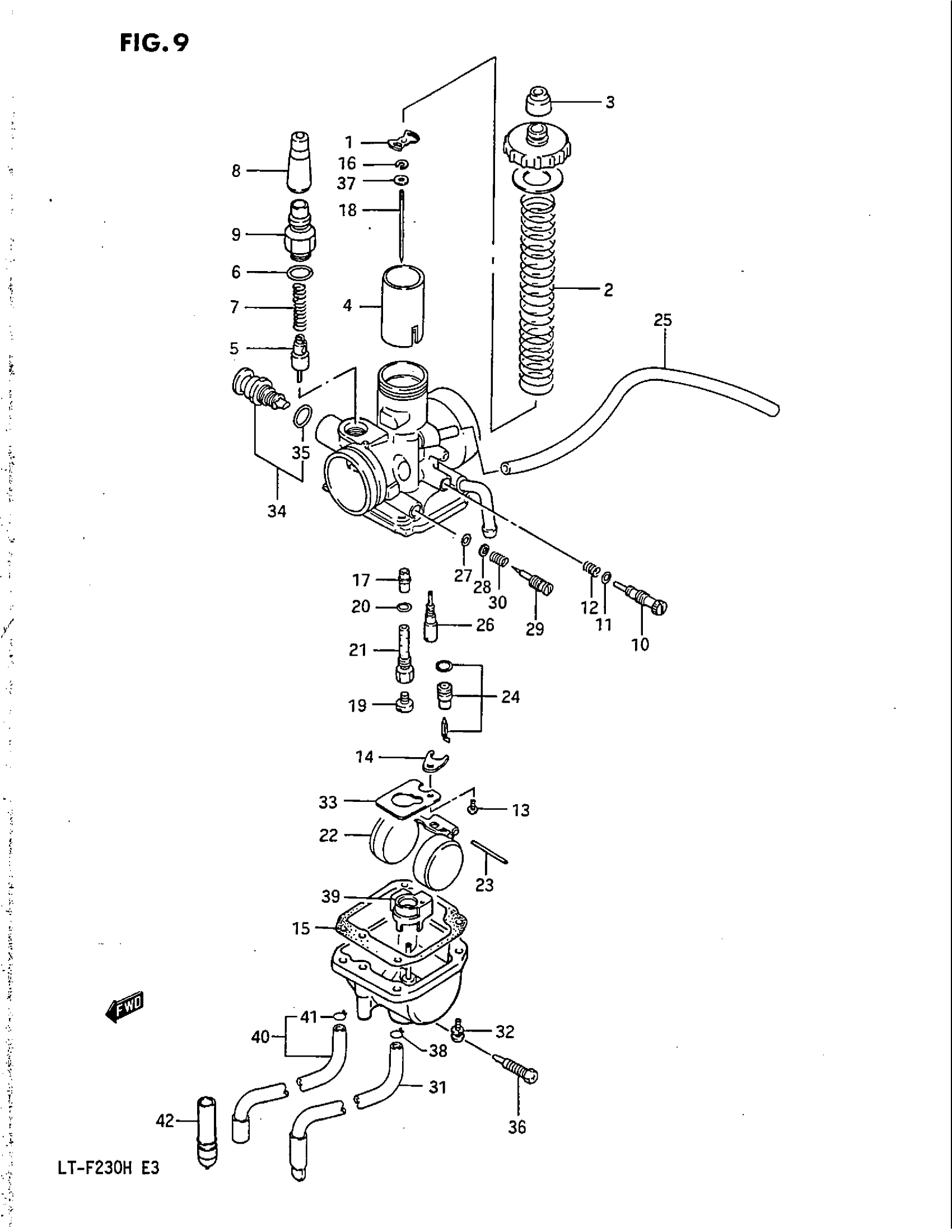

1987 Suzuki LT-F230 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CARBURETOR ASSY | MODEL G This part replaces 13200-18B00.

13200-18A10

1
Out of stock

CARBURETOR ASSY | MODEL H; Includes Item(s) 1 - 42 This part replaces 13200-18B10.

13200-18A10

1
Out of stock

1

SEAT, SPRING

13581-09210

1
Out of stock

2

SPRING, THROTTLE VALVE

13573-05320

1
Out of stock

3

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

4

VALVE, PISTON (CA:1.5) This part replaces 13551-18A00.

13551-19B01

1
Out of stock

5

PLUNGER

13411-24500

1
Out of stock

6

O RING

13278-02330

1
Out of stock

7

SPRING

13417-01010

1
Out of stock

8

CAP

13681-16600

1
Out of stock

9

CAP, PLUNGER

13418-24500

1
Out of stock

10

SCREW

13267-24500

1
Out of stock

11

O RING

13295-33010

1
Out of stock

12

SPRING

13268-35010

1
Out of stock

13

SCREW This part replaces 02112-03068.

02112-0306B

1
Out of stock

14

PLATE

13373-46710

1
Out of stock

15

GASKET

13251-05320

1
Out of stock

16

E RING

13394-10010

1
Out of stock

17

JET, NEEDLE (O-2)

09494-00436

1
Out of stock

18

NEEDLE, JET (4JR45-4)

13383-18A01

1
Out of stock

19

JET, MAIN (115)

09491-23011

1
Out of stock

20

.O RING This part replaces 13246-43010.

13246-43011

1
Out of stock

21

PIPE, BLEEDER

13385-47030

1
Out of stock

22

FLOAT This part replaces 13252-05320.

13250-05230

1
Out of stock

23

.PIN, FLOAT

13254-01010

1
Out of stock

24

VALVE ASSY, NEEDLE

13370-24400

1
Out of stock

25

HOSE,5X10X600 | L:550->500 This part replaces 13684-22A00.

44421-13ER0

1
Out of stock

26

JET, PILOT (17.5)

09492-17009

1
Out of stock

27

O-RING This part replaces 13278-44080.

13295-29901

1
Out of stock

28

WASHER This part replaces 13277-44080.

13291-29900

1
Out of stock

29

SCREW, PILOT (2 7/8) This part replaces 13279-47080.

13279-47070

1
Out of stock

30

.SPRING (NT:45)

13268-47070

1
Out of stock

31

HOSE, OVER FLOW (4.5X8X470) | MODEL G

13683-18A00

1
Out of stock

32

SCREW

13601-04148

4
Out of stock

33

PLATE

13259-18900

1
Out of stock

34

PLUNGER ASSY, STARTER

13439-18911

1
Out of stock

35

O RING

13278-02330

1
Out of stock

36

SCREW

13247-24500

1
Out of stock

37

WASHER

13382-47010

1
Out of stock

38

CLIP

13671-05A40

1
Out of stock

39

RING

13331-18B00

1
Out of stock

40

VALVE ASSY, CHECK | MODEL H This part replaces 13520-35B00.

13520-02C01

1
Out of stock

41

CLIP | MODEL H

13671-05A40

1
Out of stock

42

CAP,OVER FLOW | MODEL H This part replaces 13680-19B00.

13680-19B02

1
Out of stock
