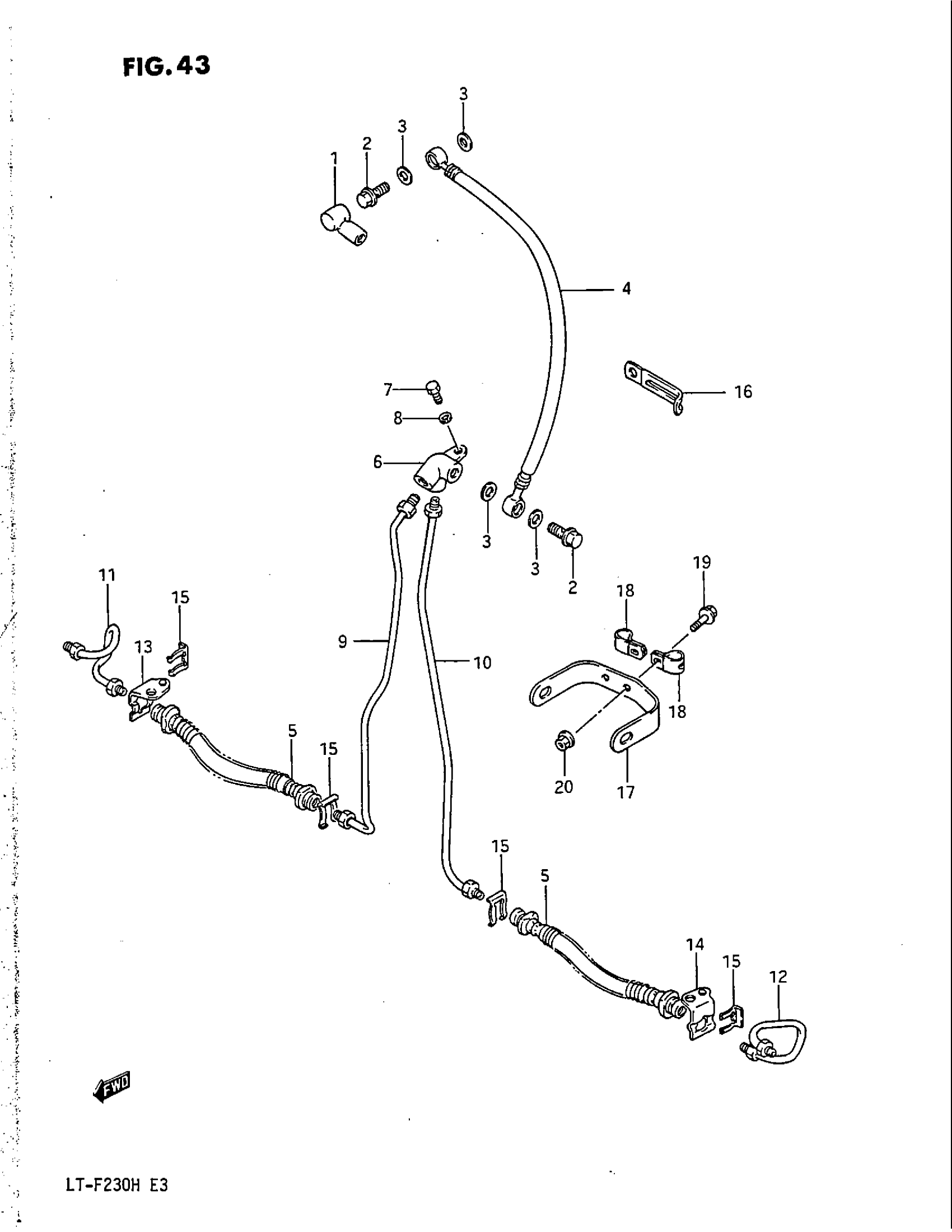

Suzuki LT-F230 (1987) BRAKE HOSE Diagram

#

Description
Price

1

BOOT,MASTER CYL This part replaces 59711-04700.

59711-04701

$20.62

2

BOLT

09360-10017

$3.42

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

HOSE, FRONT BRAKE NO.1

59480-18B00

Unavailable

5

HOSE, FRONT BRAKE NO.2

59240-18A02

Unavailable

6

JOINT (WHITE) This part replaces 59490-24501.

59490-24502

Unavailable

7

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

8

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

9

PIPE, NO.1 RH

59250-18A01

Unavailable

10

PIPE, NO.1 LH

59450-18A01

Unavailable

11

PIPE, NO.2 RH

59250-24512

Unavailable

12

PIPE, NO.2 LH

59450-24512

Unavailable

13

GUIDE, HOSE NO.2 RH

59261-18A00

Unavailable

14

GUIDE, HOSE NO.2 LH

59271-18A00

Unavailable

15

E RING This part replaces 09383-13001.

09383-13003

$2.30

16

CLAMP This part replaces 09404-08413.

09404-08420

$3.16

17

BRACKET

59471-18A00

Unavailable

18

CLAMP

09403-06401

$2.83

19

BOLT This part replaces 01517-06167.

01550-06167

$2.30

20

NUT This part replaces 09159-06017.

08319-31067

$2.03
