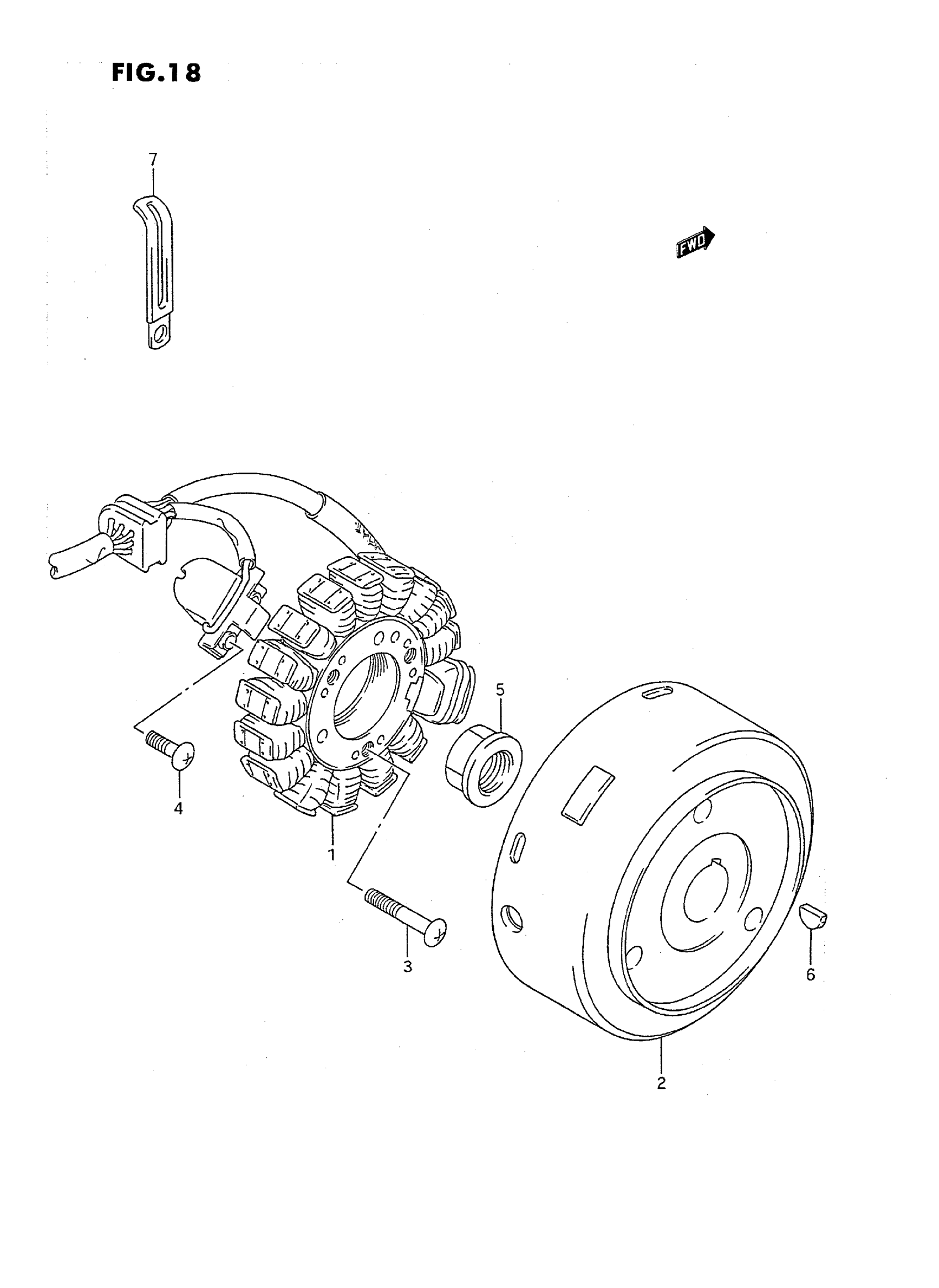

Suzuki LT-F160T (1996) MAGNETO Diagram

#

Description

Price

1

STATOR

32101-02C00

Unavailable

2

ROTOR

32102-02C00

Unavailable

3

SCREW This part replaces 32395-18A00.

09125-05130

Unavailable

4

SCREW | MODEL M/N/P

02112-04127

$1.46

4

SCREW | MODEL R/S/T This part replaces 02112-04123.

02112-0412A

$1.24

5

NUT

31792-18A00

$13.40

6

KEY

08341-31039

$1.89

7

CLAMP | MODEL M/N/P/R This part replaces 09404-06413.

09404-06039

$1.73

7

CLAMP | MODEL S/T This part replaces 09404-06432.

09404-06039

$1.73
