1996 Suzuki LT-F160T Headlamp Diagram

← All diagrams

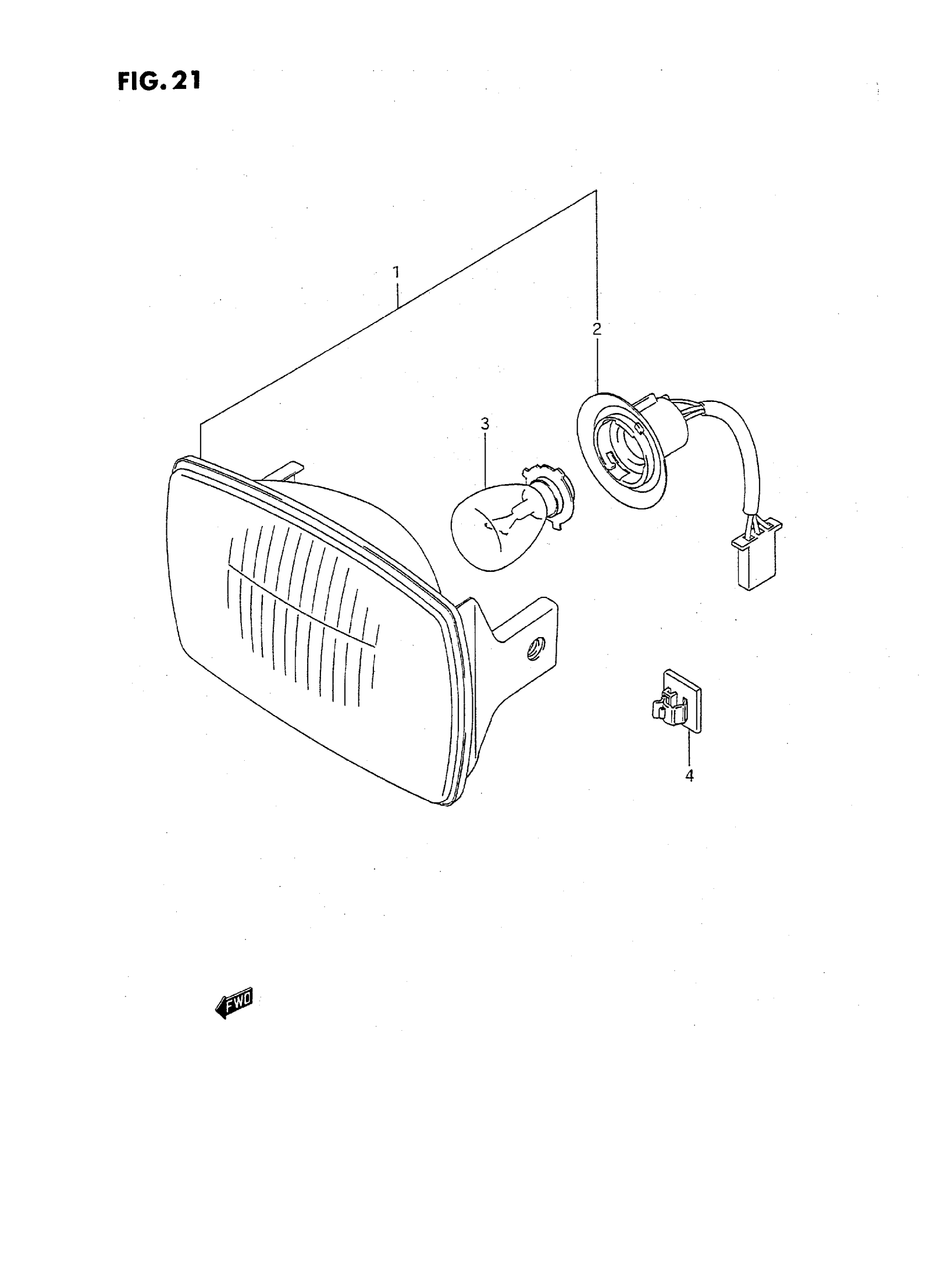

Find the part on the Headlamp diagram for your 1996 Suzuki LT-F160T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki LT-F160T Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 3

35100-02C00

1
Out of stock

2

SOCKET | MODEL R/S/T

35171-36X50

1

$20.82

In stock

3

BULB (12V,45/45W)

09471-12080

1

$6.38

In stock

4

CLAMP

09403-06310

1
Out of stock
