1996 Suzuki LT-F160T Handle Switch Diagram

← All diagrams

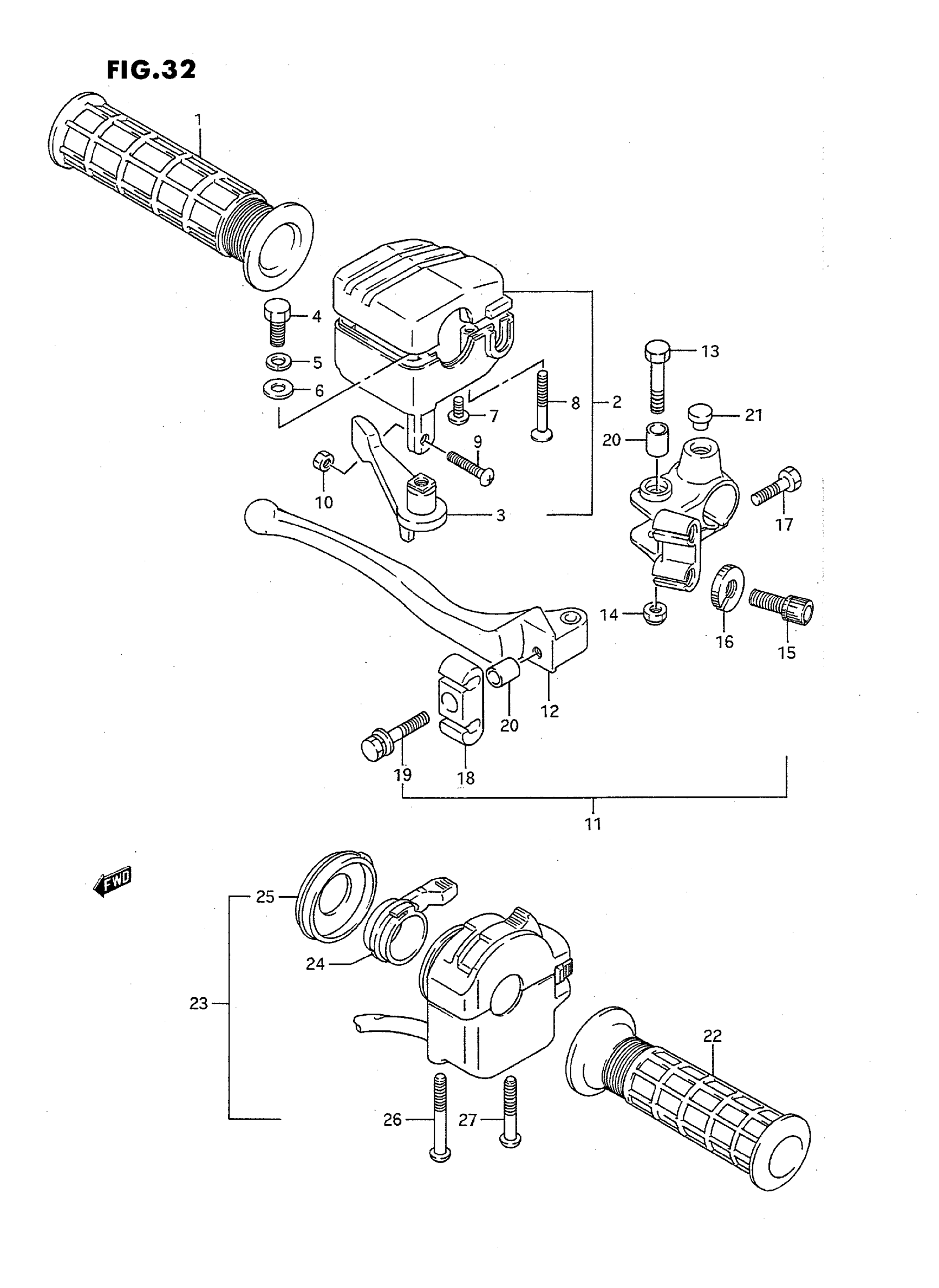

Find the part on the Handle Switch diagram for your 1996 Suzuki LT-F160T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki LT-F160T Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP (BLACK) | MODEL M/N/P This part replaces 57211-22AA1-291.

57211-22A01-291

1
Out of stock

1

GRIP (BLACK) | MODEL R/S/T

57211-22A01-291

1
Out of stock

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 10 This part replaces 57100-19B02.

57100-39DB0

1
Out of stock

3

LEVER

57151-24301

1
Out of stock

4

BOLT | MODEL M/N/P

01500-06167

1

$2.10

In stock

4

BOLT | MODEL R/S/T This part replaces 01500-06163.

01500-0616A

1
Out of stock

5

1

$2.28

In stock

6

WASHER

09160-06019

1
Out of stock

7

SCREW | MODEL M/N/P

02112-05127

1
Out of stock

8

SCREW

02132-05307

2
Out of stock

9

SCREW (5X25)

09125-05066

1
Out of stock

10

.NUT This part replaces 08310-22055.

09140-05006

1
Out of stock

11

LEVER ASSY, BRAKE | Includes Item(s) 12 - 20

57300-02C00

1
Out of stock

12

LEVER

57311-02C00

1
Out of stock

13

BOLT | MODEL M/N/P This part replaces 01107-06305.

01500-0630A

1
Out of stock

13

BOLT | MODEL R/S/T This part replaces 01500-06303.

01500-0630A

1
Out of stock

14

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

15

ADJUSTER This part replaces 57441-05A00.

57441-05A01

2
Out of stock

16

NUT,CABLE ADJUS This part replaces 57442-05A00.

57442-05A01

2
Out of stock

17

BOLT This part replaces 01117-06205.

01550-0620A

1
Out of stock

18

EQUALIZER

57313-02C00

1
Out of stock

19

1

$3.70

In stock

20

SPACER

57623-24B00

2
Out of stock

21

PLUG

09250-06005

1
Out of stock

22

GRIP (BLACK) | MODEL M/N/P This part replaces 57211-22AA1-291.

57211-22A01-291

1
Out of stock

22

GRIP (BLACK) | MODEL R/S/T

57211-22A01-291

1
Out of stock

23

SWITCH ASSY,HAN | Includes Item(s) 24 - 27 This part replaces 37400-02C00.

37400-02C01

1
Out of stock

24

LEVER, CHOKE

37571-19B01

1
Out of stock

25

COVER, CHOKE

37576-19B01

1
Out of stock

26

SCREW | MODEL M/N/P This part replaces 02112-05458.

02112-05457

1
Out of stock

26

SCREW | MODEL R/S/T

02112-05457

1
Out of stock

27

SCREW | MODEL M/N/P This part replaces 02112-05408.

02112-05407

1
Out of stock

27

SCREW | MODEL R/S/T

02112-05407

1
Out of stock
