2001 Suzuki LT-F160 Wiring Harness Diagram

← All diagrams

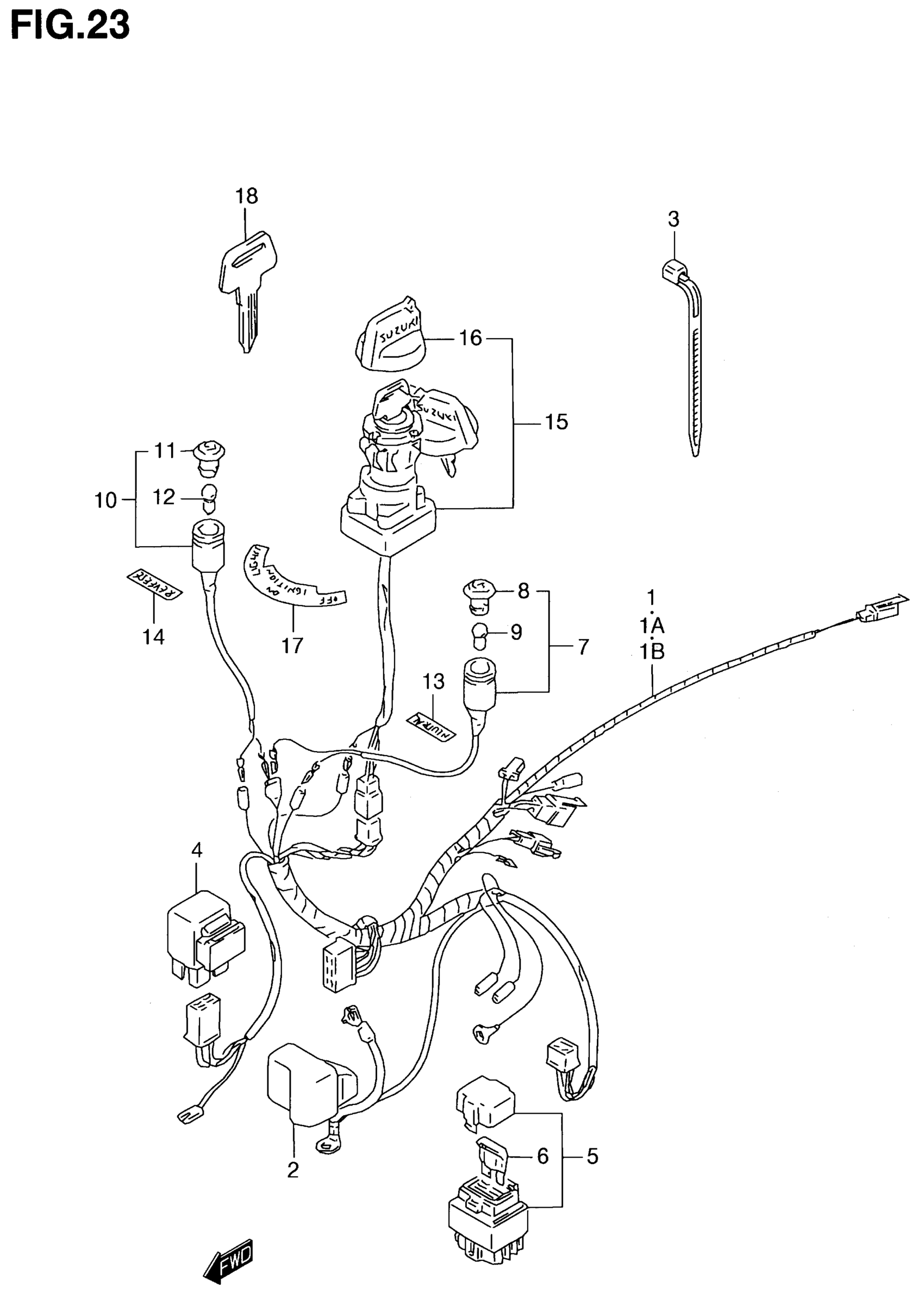

Find the part on the Wiring Harness diagram for your 2001 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-F160 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS | MODEL V/W/X

36610-02C30

1
Out of stock

1A

WIRING HARNESS | MODEL Y

36610-02C40

1
Out of stock

1B

1

$285.47

In stock

2

CAP, BATTERY (+) TERMINAL

33624-02C00

1
Out of stock

3

CLAMP (L:125)

09407-14403

7
Out of stock

3

CLAMP (L:95)

09407-11401

2
Out of stock

3

CLAMP This part replaces 09407-18403.

09407-18402

2
Out of stock

3

CLAMP (L:235)

09407-25401

2
Out of stock

4

RELAY, NEUTRAL START

38740-24X50

1
Out of stock

5

1

$25.08

In stock

6

FUSE (15A)

09481-15101

1

$2.77

In stock

7

LAMP ASSY, NEUTRAL | Includes Item(s) 8 - 9

36320-02C00

1
Out of stock

8

LENS

36321-43000

1

$4.94

In stock

9

BULB (12V,3.4W)

09471-12001

1

$2.08

In stock

10

LAMP ASSY, REVERSE | Includes Item(s) 11 - 12

36360-02C00

1
Out of stock

11

LENS

36361-43200

1

$6.00

In stock

12

BULB (12V,3.4W)

09471-12001

1

$2.08

In stock

13

LABEL, NEUTRAL

36367-02C00

1
Out of stock

14

LABEL, REVERSE

36367-02C10

1

$4.12

In stock

16

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

17

1

$6.23

In stock

18

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

18

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock
