2001 Suzuki LT-F160 Starter Clutch Diagram

← All diagrams

Find the part on the Starter Clutch diagram for your 2001 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

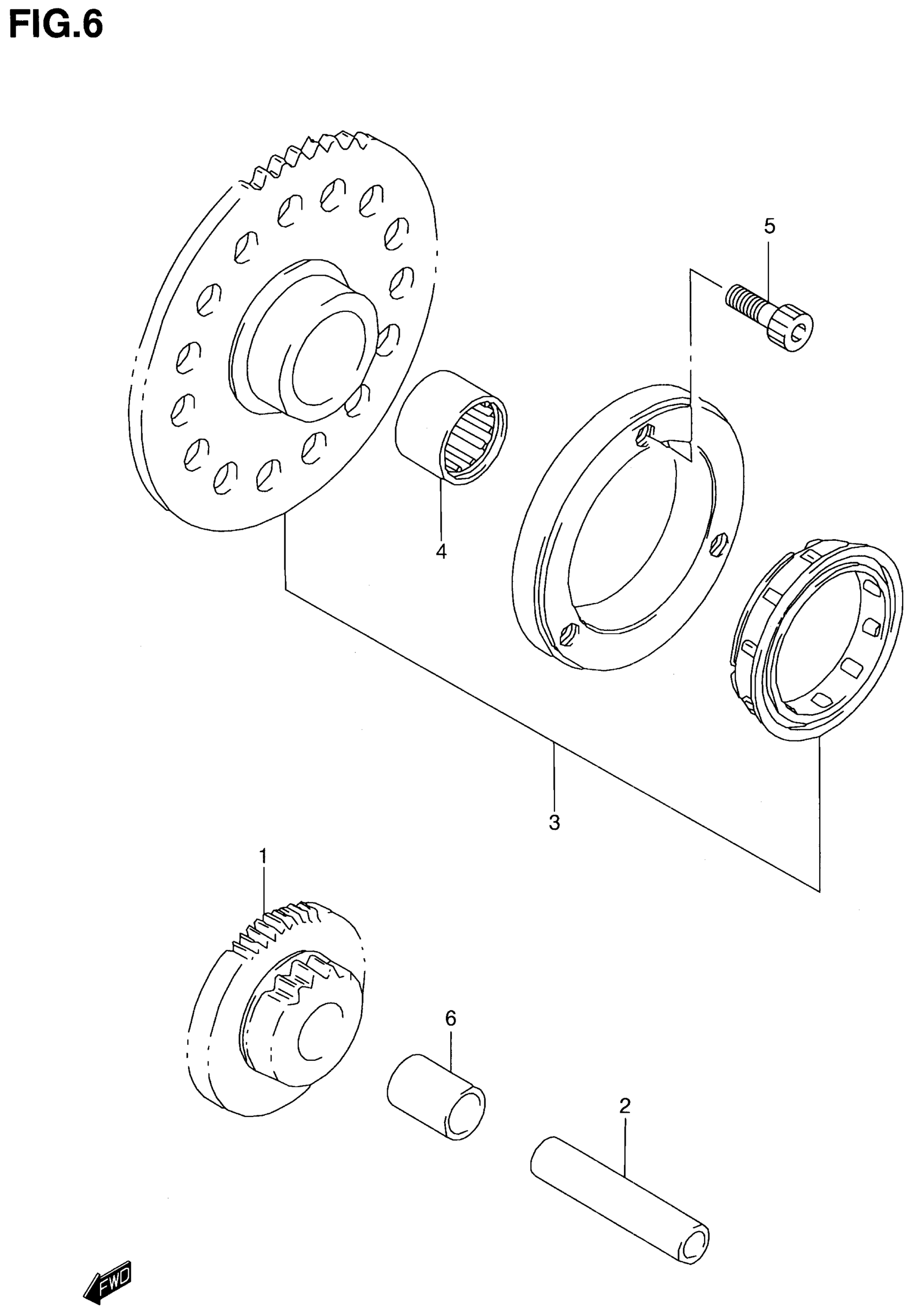

2001 Suzuki LT-F160 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, STARTER IDLE | NT:17/61

12611-35B10

1
Out of stock

2

PIN

09206-13009

1
Out of stock

3

1

$303.48

In stock

4

BEARING (22X28X20)

09263-22037

1
Out of stock

5

3

$3.13

In stock

6

SPACER

09180-13006

1

$5.35

In stock
