2001 Suzuki LT-F160 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2001 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

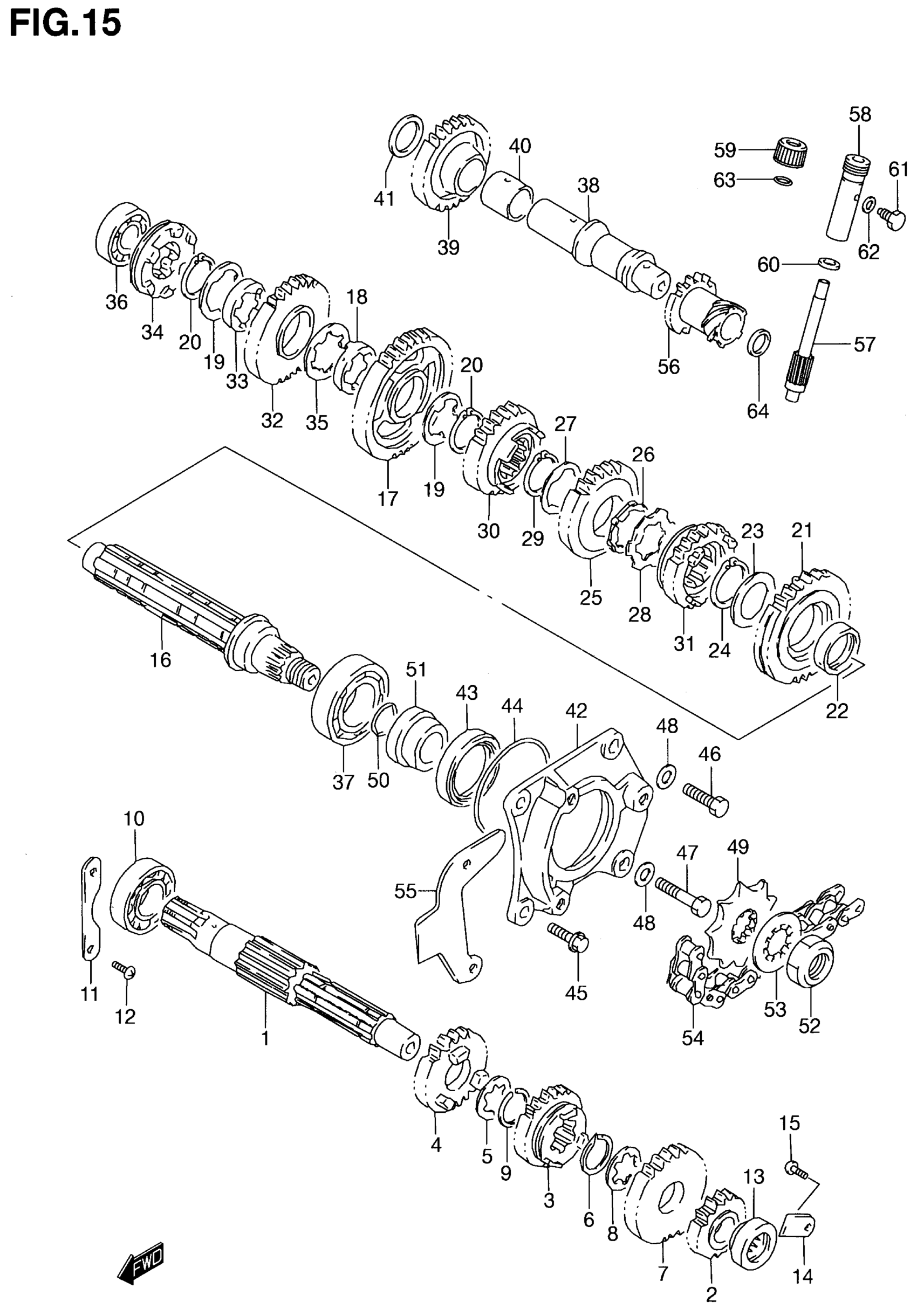

2001 Suzuki LT-F160 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:12)

24121-18A03

1
Out of stock

2

GEAR, 2ND DRIVE (NT:14) | MODEL V This part replaces 24221-02C00.

24221-02C01

1
Out of stock

2

GEAR, 2ND DRIVE (NT:14) | MODEL W/X/Y/K1

24221-02C01

1
Out of stock

3

GEAR, 3RD DRIVE (NT:17) | MODEL V This part replaces 24231-02C00.

24231-02C01

1
Out of stock

3

GEAR, 3RD DRIVE (NT:17) | MODEL W/X/Y/K1

24231-02C01

1
Out of stock

4

GEAR, 4TH DRIVE (NT:20) | MODEL V This part replaces 24241-02C00.

24241-02C01

1
Out of stock

4

GEAR, 4TH DRIVE (NT:20) | MODEL W/X/Y/K1

24241-02C01

1
Out of stock

5

WASHER (22X28X1.0) | MODEL V This part replaces 08211-22281.

09181-22139

1
Out of stock

5

WASHER (22X28X1.0) | MODEL W/X/Y/K1

09181-22139

1
Out of stock

6

CIRCLIP

09380-22006

1
Out of stock

7

GEAR, 5TH DRIVE (NT:20) | MODEL V This part replaces 24251-18B00.

24251-18B01

1
Out of stock

7

GEAR, 5TH DRIVE (NT:20) | MODEL W/X/Y/K1

24251-18B01

1
Out of stock

8

WASHER (22.1X27X0.5)

09167-22013

1
Out of stock

9

CIRCLIP

09380-22006

1
Out of stock

10

BEARING, RH (22X50X14)

09262-22018

1
Out of stock

11

RETAINER

24741-18A00

1
Out of stock

12

SCREW This part replaces 02112-06123.

02112-0612A

2
Out of stock

13

BEARING, LH (17X30X14)

09263-17026

1
Out of stock

14

RETAINER

24742-18A00

1
Out of stock

15

SCREW This part replaces 02112-06123.

02112-0612A

1
Out of stock

16

DRIVESHAFT

24131-35B10

1
Out of stock

17

GEAR, 1ST DRIVEN (NT:38) | MODEL V This part replaces 24311-02C00.

24311-02C01

1
Out of stock

17

GEAR, 1ST DRIVEN (NT:38) | MODEL W/X/Y/K1

24311-02C01

1
Out of stock

18

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

1
Out of stock

19

LOCK WASHER

09167-25016

2
Out of stock

20

SNAP RING

09380-25003

2
Out of stock

21

GEAR, 2ND DRIVEN (NT:30)

24321-02C00

1
Out of stock

22

BUSH

09300-25020

1
Out of stock

23

WASHER

08211-25351

1

$4.03

In stock

24

SNAP RING

09380-25003

1
Out of stock

25

GEAR, 3RD DRIVEN (NT:28) | MODEL V This part replaces 24331-02C00.

24331-02C01

1
Out of stock

25

GEAR, 3RD DRIVEN (NT:28) | MODEL W/X/Y/K1

24331-02C01

1
Out of stock

26

LOCK WASHER

09169-25001

1
Out of stock

27

LOCK WASHER

09167-25016

1
Out of stock

28

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

29

SNAP RING

09380-25003

1
Out of stock

30

GEAR, 4TH DRIVEN (NT:24) | MODEL V This part replaces 24341-02C00.

24341-02C01

1
Out of stock

30

GEAR, 4TH DRIVEN (NT:24) | MODEL W/X/Y/K1

24341-02C01

1
Out of stock

31

GEAR, 5TH DRIVEN (NT:19) | MODEL V This part replaces 24351-18B00.

24351-18B01

1
Out of stock

31

GEAR, 5TH DRIVEN (NT:19) | MODEL W/X/Y/K1

24351-18B01

1
Out of stock

32

GEAR, REVERSE DRIVEN (NT:34)

24571-18A02

1
Out of stock

33

BUSH,REVERSE DRIVEN GEAR

24333-18A00

1
Out of stock

34

DOG

24581-18A00

1
Out of stock

35

WASHER (25.1X40X1.5)

09167-25017

1
Out of stock

36

BEARING, RH (20X42X12)

09262-20059

1
Out of stock

37

BEARING, LH (30X62X16) | MODEL V/W/X This part replaces 09262-30081.

09262-30084

1
Out of stock

37

BEARING (30X62X16) | MODEL Y/K1

09262-30084

1
Out of stock

38

SHAFT, REVERSE IDLER

24551-35B10

1
Out of stock

39

GEAR, REVERSE IDLER (NT:29)

24561-18A02

1
Out of stock

40

BUSH, REVERSE IDLE GEAR

09300-20034

1
Out of stock

41

THRUST WASHER | MODEL V

08211-20301

1
Out of stock

41

THRUST WASHER (20X30X1.0) | MODEL W/X/Y/K1

09181-20195

1
Out of stock

42

RETAINER

24751-35B10

1
Out of stock

43

OIL SEAL (38X52X8)

09283-38017

1
Out of stock

44

O RING (D:2.5,ID:71.9)

09280-70009

1
Out of stock

45

BOLT This part replaces 01550-08203.

01550-0820A

2
Out of stock

46

BOLT (8X20)

09100-08259

1
Out of stock

47

BOLT (8X30)

09100-08260

1
Out of stock

48

WASHER (8.5X18X1)

09160-08043

2
Out of stock

49

SPROCKET, ENGINE (NT:11)

27511-35B00

1
Out of stock

50

O RING (D:2.5,ID:21)

09280-21008

1
Out of stock

51

SPACER (L:25.1)

27531-35B10

1
Out of stock

52

NUT

09140-18008

1
Out of stock

53

LOCK WASHER

09167-22012

1
Out of stock

54

CHAIN, DRIVE (RK520SMO-Z9)

27600-34A40-084

1
Out of stock

55

PLATE, FRONT CHAIN GUIDE

27641-35B00

1
Out of stock

56

GEAR, ODOMETER DRIVE | MODEL Y/K1 P28

26460-18A11

1
Out of stock

57

GEAR, ODOMETER DRIVEN | MODEL Y/K1 P28

26471-24200

1
Out of stock

58

SLEEVE, ODOMETER | MODEL Y/K1 P28

26481-24200

1
Out of stock

59

CAP, ODOMETER | MODEL Y/K1 P28

26482-02C00

1
Out of stock

60

GASKET, SLEEVE CAP | MODEL Y/K1 P28

26483-02C00

1
Out of stock

61

BOLT (6X10) | MODEL Y/K1 P28 This part replaces 09135-06002.

09135-06501

1
Out of stock

62

GASKET, SLEEVE BOLT | MODEL Y/K1 P28 (6.2X11X1.2)

09168-06004

1
Out of stock

63

O RING (D:1.3,ID:9.6) | MODEL Y/K1 P28

09280-10001

1
Out of stock

64

WASHER | MODEL Y/K1 P28

08211-17241

1
Out of stock
