2001 Suzuki LT-F160 Clutch Diagram

← All diagrams

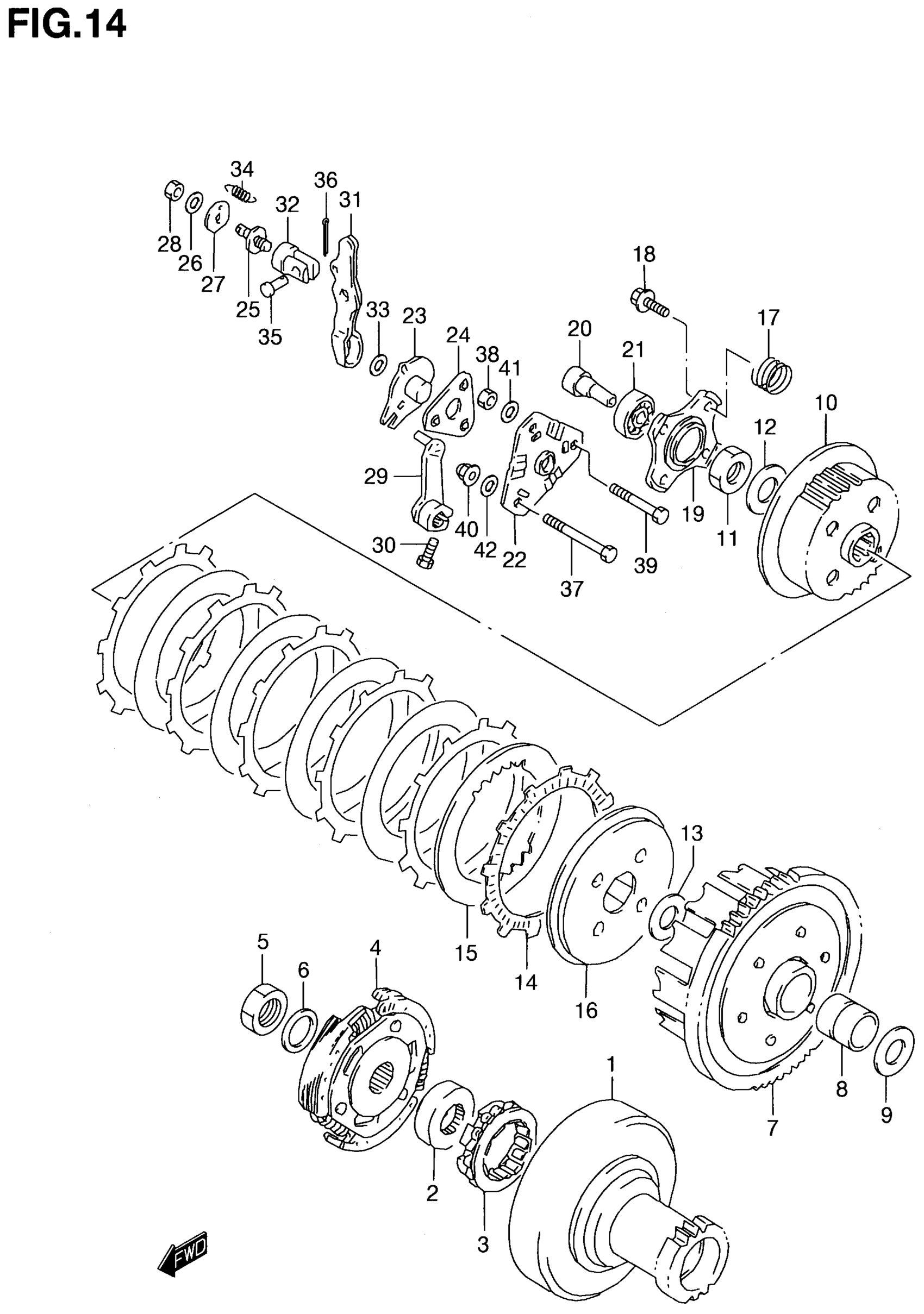

Find the part on the Clutch diagram for your 2001 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-F160 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE (NT:19) | MODEL V/W This part replaces 21110-02C00.

21110-02C01

1
Out of stock

1

GEAR, PRIMARY DRIVE (NT:19) | MODEL X/Y/K1

21110-02C01

1
Out of stock

2

RACE, INNER

21631-19B11

1
Out of stock

3

CLUTCH, ONE WAY

21273-19B10

1
Out of stock

4

CLUTCH ASSY

21500-02C02

1
Out of stock

5

NUT

09140-18012

1
Out of stock

6

WASHER (20.1X32X2)

09164-20007

1
Out of stock

7

GEAR ASSY, PRIMARY (NT:71)

21200-02C02

1
Out of stock

8

SPACER (22X28X23)

09180-22035

1
Out of stock

9

WASHER (22X36X1.0)

09181-22251

1
Out of stock

10

HUB, CLUTCH

21410-18A00

1
Out of stock

11

NUT

09140-20001

1
Out of stock

12

LOCK WASHER (ID:18.3) This part replaces 09164-18007.

09164-18001

1
Out of stock

13

WASHER

08211-20323

1
Out of stock

14

PLATE, DRIVE

21441-22A01

6
Out of stock

15

PLATE, DRIVEN

21451-01B40

5
Out of stock

16

DISK, PRESSURE

21462-24501

1
Out of stock

17

SPRING

09440-19022

4
Out of stock

18

BOLT This part replaces 01550-06203.

01550-0620A

4
Out of stock

19

PLATE, RELEASE

21465-24500

1
Out of stock

20

PIECE, PUSH

23121-18A03

1
Out of stock

21

BEARING (12X28X8.0)

09262-12001

1
Out of stock

22

BALL GUIDE, OUTER

23231-18A00

1
Out of stock

23

BALL GUIDE, INNER

23211-18A02

1
Out of stock

24

BALL, RELEASE

23250-24500

1
Out of stock

25

BOLT, ADJUSTER

23223-18A00

1
Out of stock

26

WASHER (6.5X14X2.3)

09160-06127

1
Out of stock

27

WASHER (6.5X22X1.2)

09169-06046

1
Out of stock

28

NUT, ADJUSTER

09140-06023

1
Out of stock

29

ARM, RELEASE

23220-18A00

1
Out of stock

30

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

31

ARM, RELEASE NO.2

23225-18A01

1
Out of stock

32

BOSS, RELEASE NO.2

23224-18A00

1
Out of stock

33

WASHER (10X20X1.0)

09181-10195

1
Out of stock

34

SPRING

09443-06053

1
Out of stock

35

PIN

09200-07005

1
Out of stock

36

PIN This part replaces 04111-16208.

04111-1620A

1
Out of stock

37

BOLT (6X55)

09119-06064

2
Out of stock

38

NUT This part replaces 08310-00063.

08310-0006A

1
Out of stock

39

BOLT (6X35)

09119-06063

1
Out of stock

40

NUT This part replaces 08313-20063.

08313-2006A

2
Out of stock

41

WASHER

08212-06121

1
Out of stock

42

SEAL, BOLT (5.8X13X1.2)

09168-06023

2
Out of stock
