1995 Suzuki LT-F160 Carrier Diagram

← All diagrams

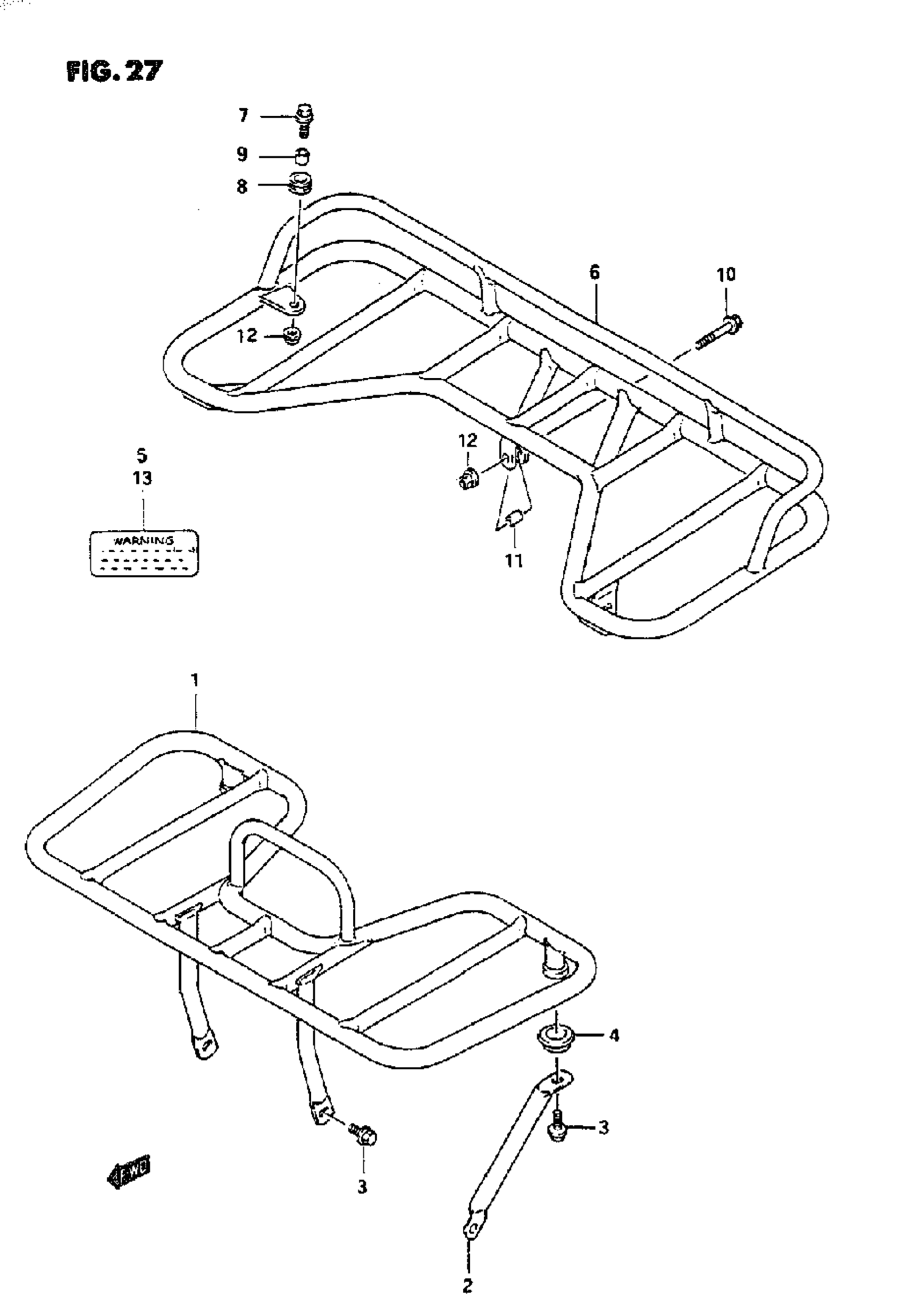

Find the part on the Carrier diagram for your 1995 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-F160 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARRIER, FRONT

46410-02C10

1
Out of stock

2

STAY, REAR RH

46441-02C10

1
Out of stock

2

STAY, REAR LH

46442-02C10

1
Out of stock

3

BOLT (8X16) | MODEL M/N/P This part replaces 01517-08165.

01550-0816A

2
Out of stock

3

BOLT (8X16) | MODEL R/S/T This part replaces 01550-08163.

01550-0816A

2
Out of stock

4

GROMMET, RH

46455-02C10

1
Out of stock

4

GROMMET, LH

46456-02C10

1
Out of stock

5

LABEL, WARNING

68381-02C00

1
Out of stock

6

CARRIER, REAR

46310-02C10

1
Out of stock

7

BOLT | MODEL M/N/P This part replaces 01517-08254.

01550-0825A

2
Out of stock

7

BOLT | MODEL R/S/T This part replaces 01550-08253.

01550-0825A

2
Out of stock

8

CUSHION

09320-15008

2
Out of stock

9

SPACER

09180-08141

2
Out of stock

10

BOLT | MODEL M/N/P This part replaces 01517-08405.

01550-08407

2
Out of stock

10

BOLT | MODEL R/S/T This part replaces 01550-08403.

01550-0840A

2
Out of stock

11

SPACER, REAR

46392-02C10

2
Out of stock

12

NUT | MODEL M/N/P This part replaces 08316-16085.

08316-1008B

4
Out of stock

12

NUT | MODEL R/S/T This part replaces 08316-10083.

08316-1008B

4
Out of stock

13

LABEL, WARNING

68391-02C00

1
Out of stock
