1995 Suzuki LT-F160 Tail Lamp Diagram

← All diagrams

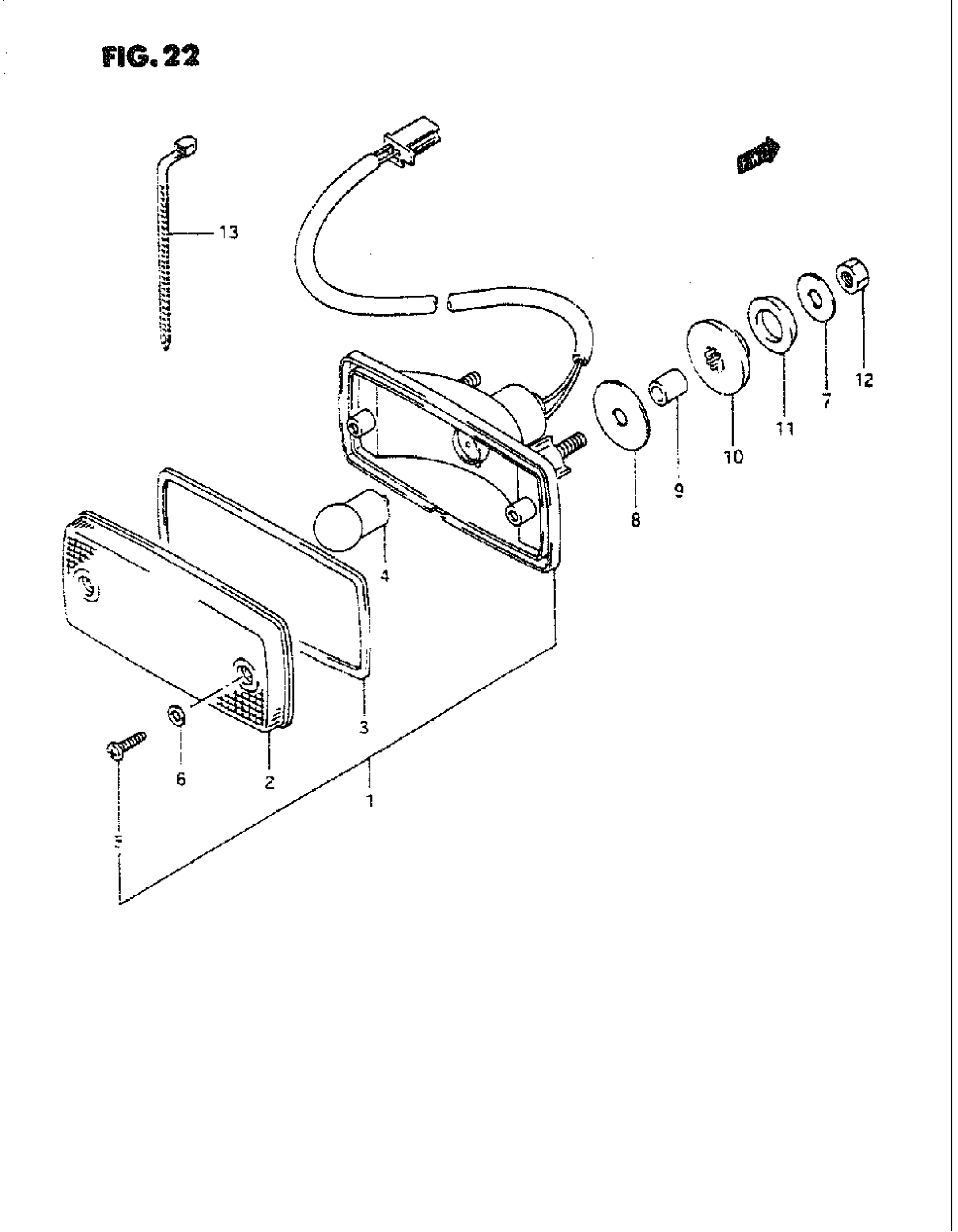

Find the part on the Tail Lamp diagram for your 1995 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-F160 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, TAIL | MODEL M/N/P/R This part replaces 35710-18A33.

35710-41B02

1
Out of stock

1

LAMP ASSY, TAIL | MODEL S/T

35710-41B02

1
Out of stock

2

LENS

35712-18A32

1

$51.14

In stock

3

GASKET

35713-18A30

1

$10.92

In stock

4

1

$2.55

In stock

5

SCREW

03212-04169

2
Out of stock

6

GASKET

35627-43010

2

$2.65

In stock

7

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

2
Out of stock

8

WASHER (6.5X30X1.2)

09160-06071

2
Out of stock

9

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

2
Out of stock

10

CUSHION

09320-09012

2
Out of stock

11

CUSHION

09320-14010

2
Out of stock

12

NUT This part replaces 08310-00063.

08310-0006A

2
Out of stock

13

CLAMP (L: 125) | MODEL M/N/P/R/S

09407-14403

1
Out of stock

13

CLAMP (L:95) | MODEL T

09407-11401

1
Out of stock
