1995 Suzuki LT-F160 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 1995 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

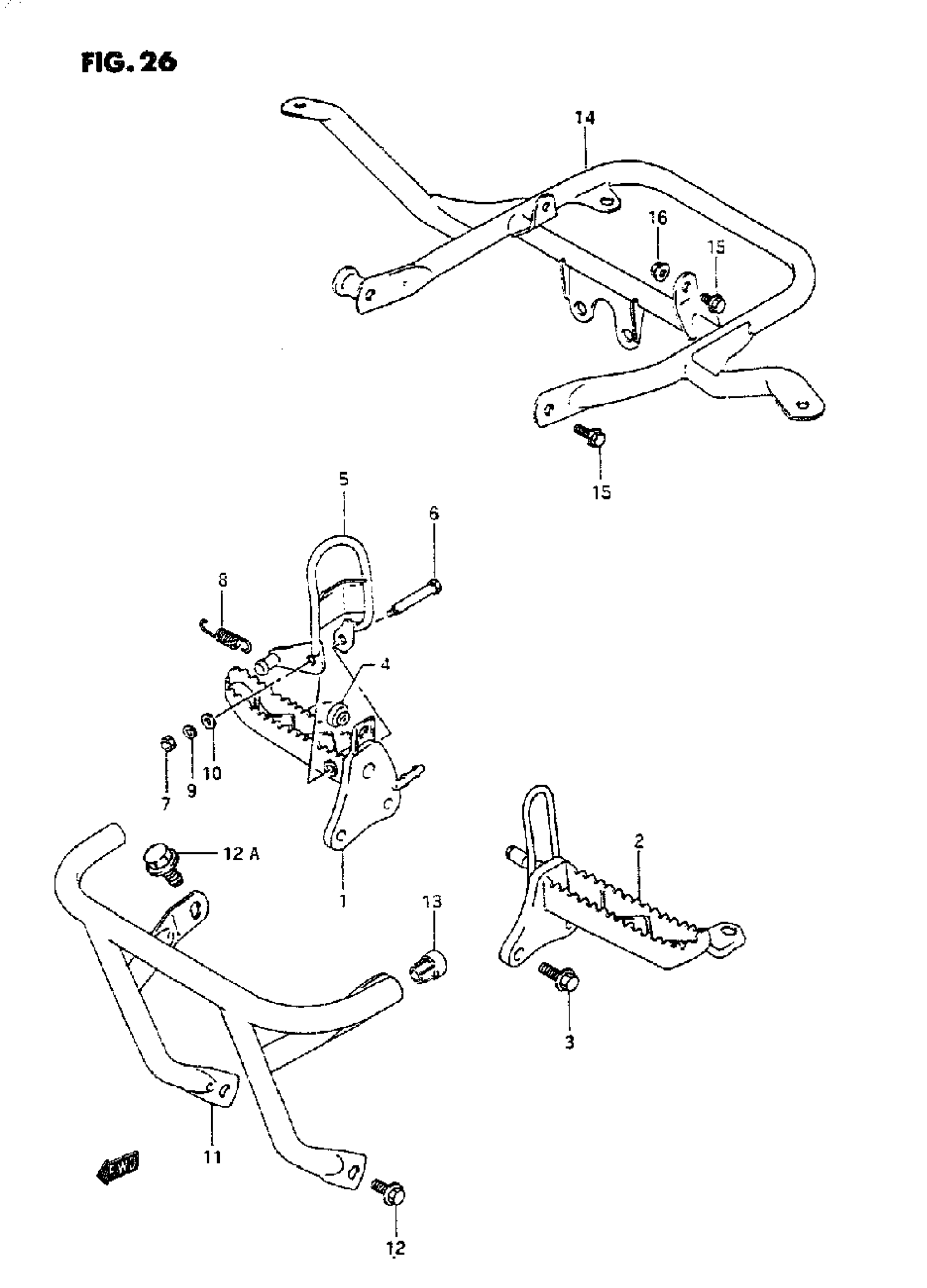

1995 Suzuki LT-F160 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST, FRONT RH (BLACK)

43510-02C10-019

1
Out of stock

2

FOOTREST, FRONT LH (BLACK)

43520-02C10-019

1
Out of stock

3

BOLT

09103-10201

4
Out of stock

4

CUSHION This part replaces 09321-100A7.

09321-10007

1
Out of stock

5

GUARD, FOOTREST RH (BLACK)

43590-02C00-019

1
Out of stock

6

BOLT, GUARD

09111-06060

1
Out of stock

7

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

8

SPRING

09443-13017

1
Out of stock

9

WASHER | MODEL M/N/P This part replaces 08322-11084.

08322-0108A

1
Out of stock

9

WASHER | MODEL R/S/T This part replaces 08322-01083.

08322-0108A

1
Out of stock

10

WASHER, REAR | MODEL M/N/P This part replaces 09160-06098.

09160-06502

1
Out of stock

10

WASHER, REAR | MODEL R/S/T

09160-06502

1
Out of stock

11

GRIP, FRONT (ORANGE) | MODEL M

43990-02C00-25G

1
Out of stock

11

1

$202.38

In stock

12

BOLT (8X12) | MODEL M/N/P This part replaces 01517-08125.

01550-0812A

4
Out of stock

12

BOLT (8X12) | MODEL R/S This part replaces 01550-08123.

01550-0812A

2
Out of stock

12

BOLT (8X16) | MODEL R/S This part replaces 01550-08163.

01550-0816A

2
Out of stock

13

CAP

43978-02C00

2

$4.90

In stock

14

GRIP. REAR (ORANGE) | MODEL M

43980-02C00-25G

1
Out of stock

14

GRIP, REAR (BLACK) | MODEL N/P/R/S/T

43980-02C00-019

1
Out of stock

15

BOLT (8X16) | MODEL M/N/P This part replaces 01517-08165.

01550-0816A

4
Out of stock

15

BOLT (8X16) | MODEL R/S This part replaces 01550-08163.

01550-0816A

4
Out of stock

16

NUT | MODEL M/N/P/R/S This part replaces 08316-16085.

08316-1008B

2
Out of stock

16

NUT | MODEL T This part replaces 08316-10083.

08316-1008B

2
Out of stock
