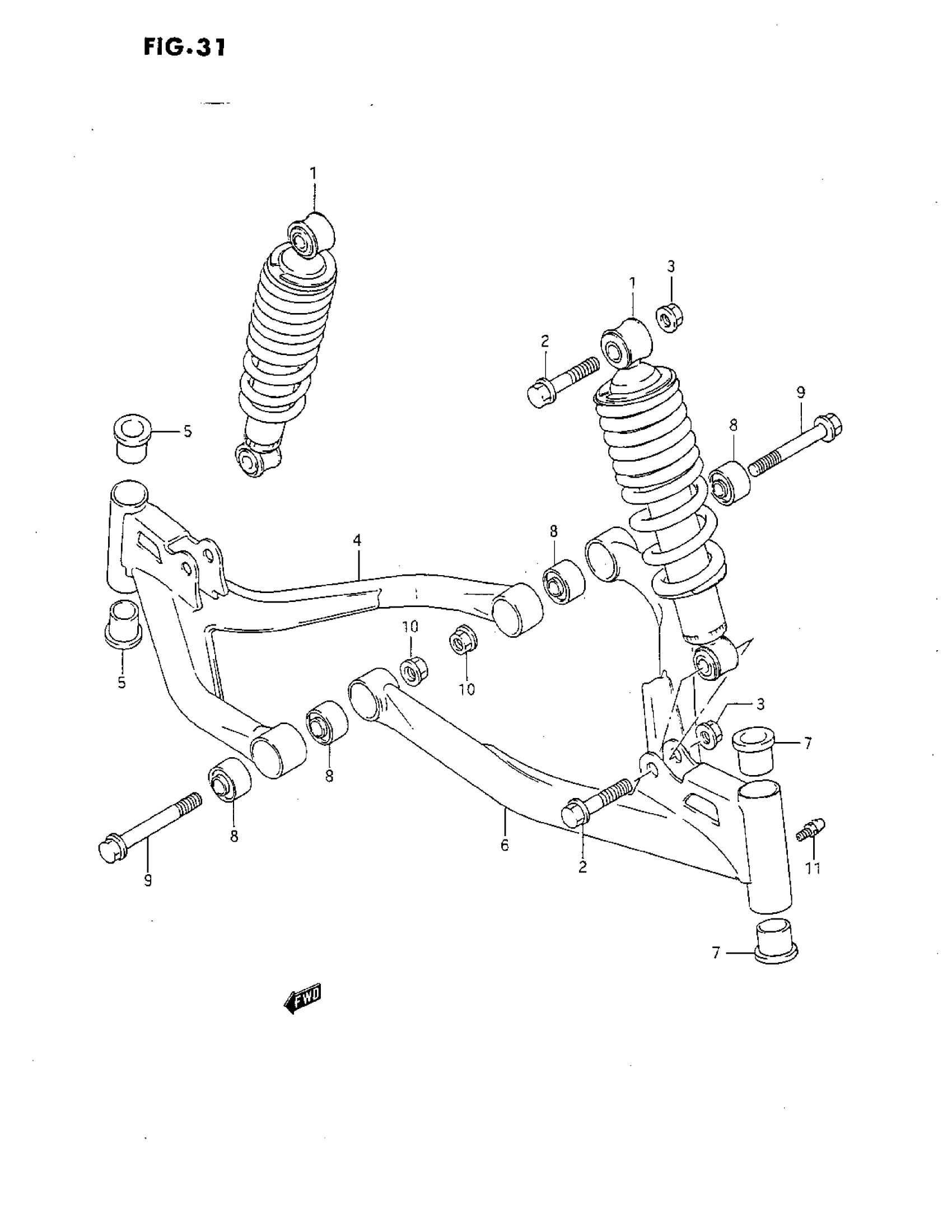

Suzuki LT-F160 (1993) SUSPENSION ARM Diagram

#

Description
Price

1

SHOCK ABSORBER, FRONT (ORANGE) | MODEL M

52100-02C00-25G

Unavailable

1

SHOCK ABSORBER, FRONT (BLACK) | MODEL N/P/R

52100-02C00-019

Unavailable

2

BOLT

61181-02C00

$6.88

3

NUT

08319-31107

$2.73

4

ARM, SUSPENSION RH (SILVER) | MODEL M

52410-02C00-13L

Unavailable

4

ARM, SUSPENSION RH (BLACK) | MODEL N/P/R

52410-02C00-019

Unavailable

5

BUSH

51236-40B00

$19.07

6

ARM, SUSPENSION LH (SILVER) | MODEL M

52420-02C00-13L

Unavailable

6

ARM, SUSPENSION LH (BLACK) | MODEL N/P/R

52420-02C00-019

Unavailable

7

BUSH

51236-40B00

$19.07

8

BUSH, SUSPENSION ARM PIVOT

09319-10049

$17.14

9

BOLT, SUSPENSION ARM PIVOT This part replaces 09103-101H3.

09103-10173

$7.05

10

NUT | MODEL M/N/P

08316-10107

$2.39

10

NUT | MODEL R This part replaces 08316-20103.

08316-2010B

$3.43

11

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68
