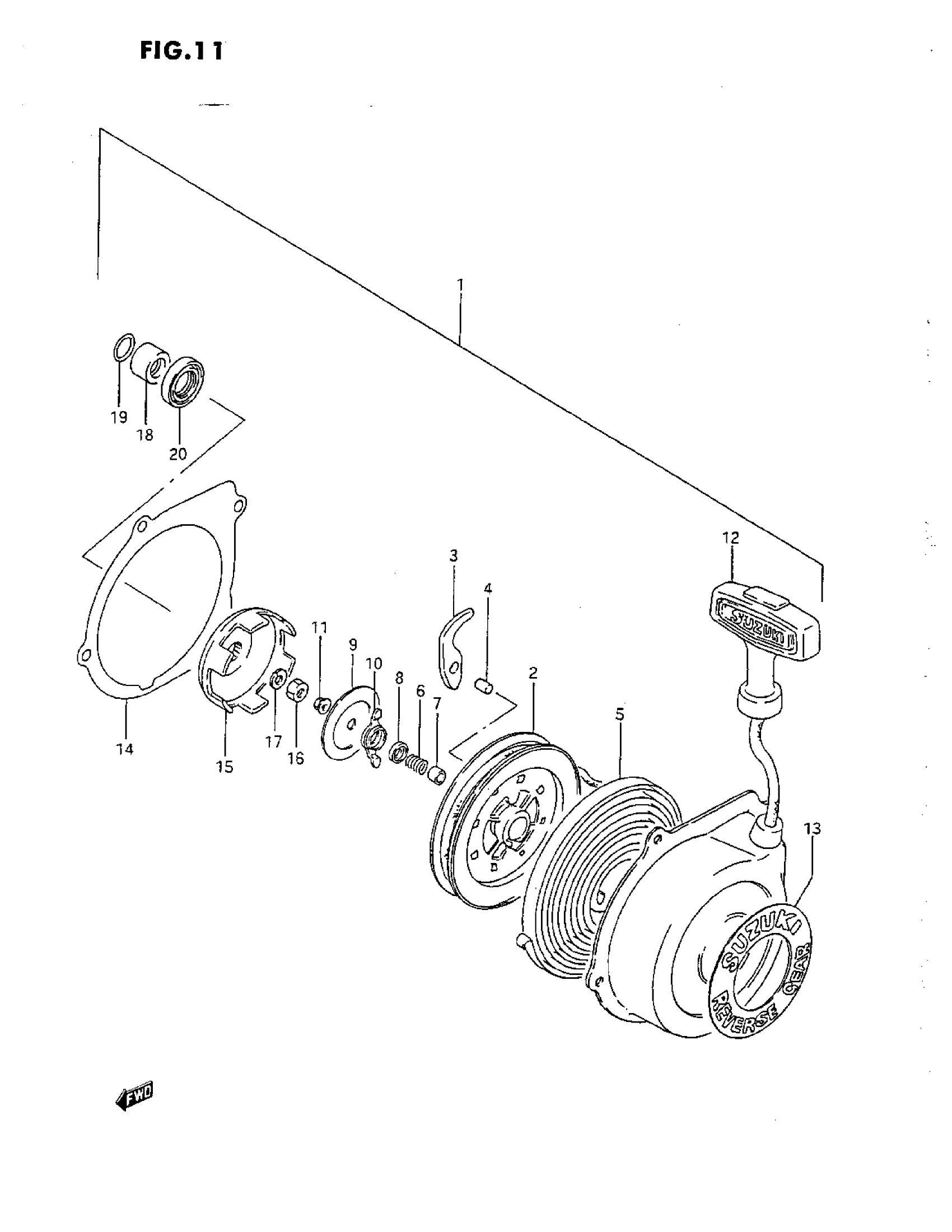

Suzuki LT-F160 (1993) RECOIL STARTER (OPTIONAL) Diagram

#

Description
Price

1

STARTER SET, RECOIL This part replaces 18000-35B00.

18000-02820

$178.87

2

REEL

18120-24400

$35.94

3

RATCHET

18131-24411

$8.12

4

PIN, RATCHET

18344-24400

Unavailable

5

.SPRING,SPIRAL

18142-24400

$29.60

6

SPRING, FRICTION

18153-24400

Unavailable

7

SHAFT, SUB

18176-24400

Unavailable

8

COVER, SPRING

18275-24400

Unavailable

9

RATCHET SET This part replaces 18151-24400.

18130-24400

$16.96

10

..GUIDE,RATCHET

18132-24400

$2.92

11

NUT This part replaces 18334-24400.

08316-1006B

$2.50

12

ROPE ASSY

18200-24400

$34.27

13

EMBLEM

68398-24410

$13.81

14

GASKET, RECOIL STARTER

18299-18A00

$5.32

15

CUP, STARTER

18411-18A03

Unavailable

16

NUT | MODEL M/N/P

08310-00107

$2.19

16

NUT | MODEL R This part replaces 08310-00103.

08310-0010A

$1.84

17

LOCK WASHER | MODEL M/N/P

08321-01107

$1.84

17

LOCK WASHER | MODEL R This part replaces 08321-01103.

08321-0110A

$1.84

18

SPACER

12359-18A02

$20.45

19

O RING (D:1.9,ID:12.6) This part replaces 09280-13007.

09280-12009

$3.18

20

OIL SEAL (22X35X7)

09289-22008

$22.86
